71
All losened screw connections must be carefully
retightened after any component adjustment!
1 03/0015.13 03/0015.16 03/0015.22 03/0015.01 03/0015.26 03/0015.50 Frame
2 L 03/0015.25 L 03/0015.25 L 03/0015.03 L 03/0015.03 L 03/0015.03 L 03/0015.03 L Jib left
2 R 03/0015.25 R 03/0015.25 R 03/0015.03 R 03/0015.03 R 03/0015.03 R 03/0015.03 R Jib right
3 03/0015.33 03/0015.33 03/0015.31 03/0015.08 03/0015.33 03/0015.08 Connecting strut
4 03/0015.02 03/0015.02 03/0015.02 03/0015.02 03/0015.02 03/0015.02 Upper alignment angle
for spring element
5 03/0015.32 03/0015.32 03/0015.32 03/0015.32 03/0015.32 03/0015.32 Lower alignment angle
for rear wheel axle
6 03/0015.43 03/0015.43 03/0015.43 03/0015.43 03/0015.43 03/0015.43 Mounting plate
for rivet nut
7 10-040-00017
150 mm
10-040-00017
150 mm
10-040-00017
150 mm
10-040-00017
150 mm
10-040-00017
150 mm
Spring element
150 mm
7 10-040-00017
165mm
Spring element
165mm
8 03/1015.10 03/1015.10 03/1015.10 03/1015.10 03/1015.10 03/1015.10 Impeller ball bearing
mounted w. cap
P
art Therapy supports Item
No: 12" 16" 20" 24" 26" 28"

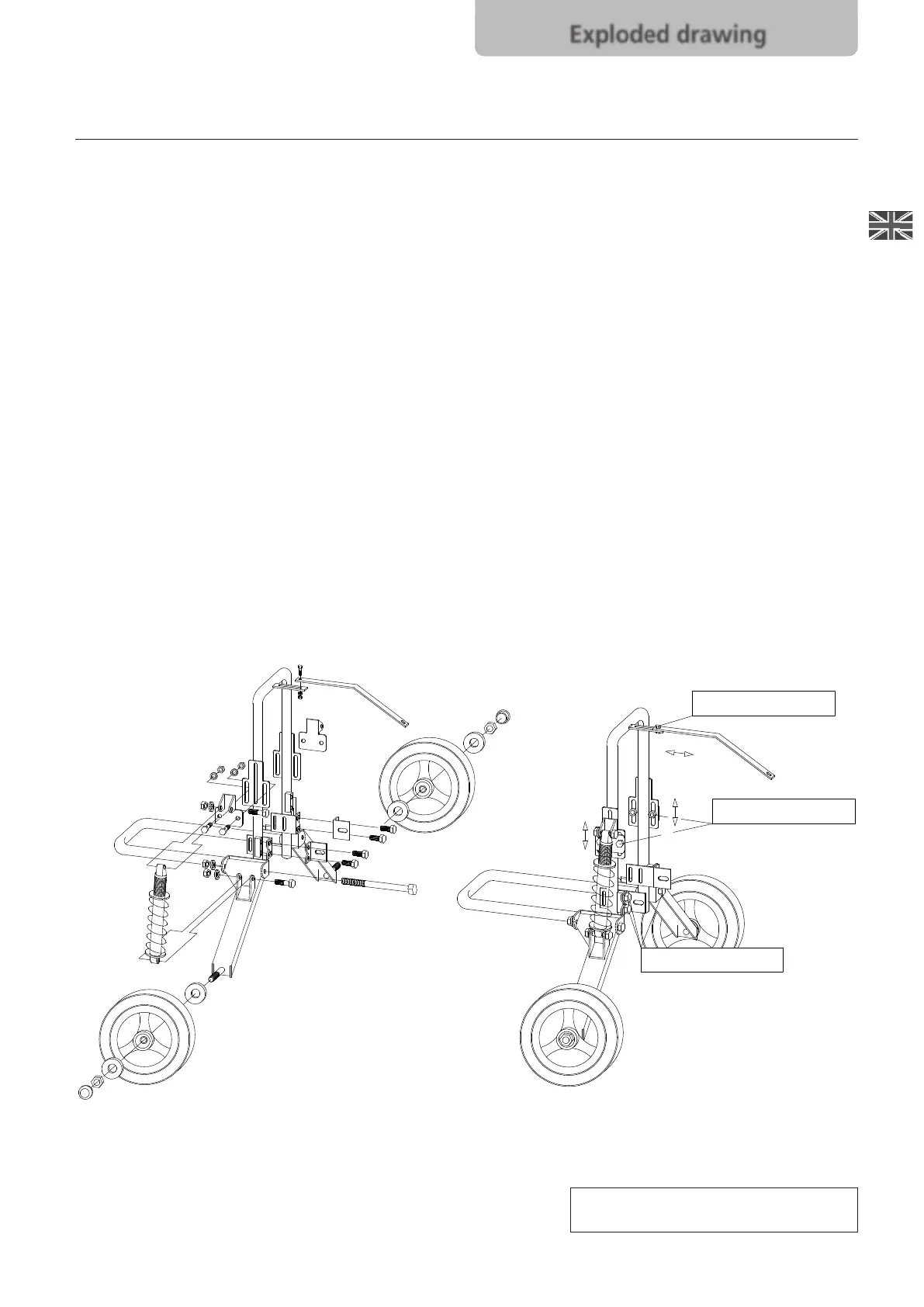

Exploded drawing
C
D
C
D
Loesen derSechskantschrauben
Verstellmoeglichkeit A - B
Loesen derSechskantschrauben
Verstellmoeglichkeit C - D
L
oesen derSechskantschrauben
V
erstellmoeglichkeit E - F
B
A
E
F
