PFIFF PFAU-Tec Pfautomatic - Power Assist System Information

60

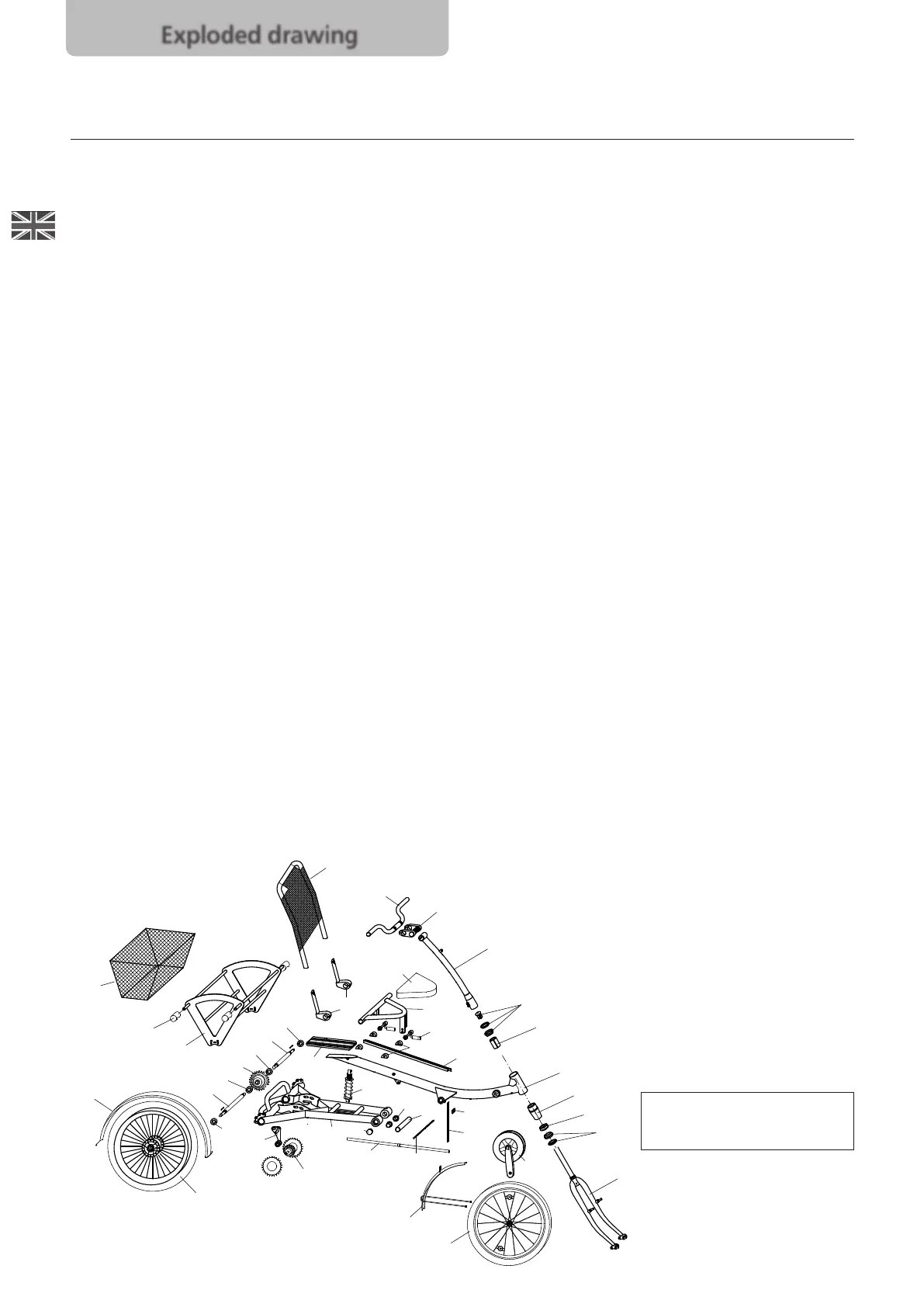

Exploded drawing
1L, 1S
2
3L, 3S
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
19L
19R
20
22
23
24
25
27
28
29
30
38
37
39
40
33
36
36
33
33
26
31
32
P
art ScooterTrike Item
No: 16"-20"
1L 10-000-00068 “L” SCT frame Scooter “L”
1S 10-000-00068 “S” SCT frame Scooter “S”
2 1
0-000-00070
S
CT rocker Scooter
3L 10-000-00069 “L” SCT handlebar stem Scooter “L”
3S 10-000-00069 “S” SCT handlebar stem Scooter “S”
4 10-000-00067 SCT fork 16" rigid
5 10-080-00049 SCT seat frame 2-part, incl. back rest
6 10-080-00041 SCT seat cushion
7 10-080-00045 SCT seat cover
8 10-040-00023 SCT clamping parts back rest
9 10-080-00042 SCT seat rail
10 10-080-00043 SCT Rail Stone for seat rail
11 10-080-00044 SCT quick release
12 10-030-00026 SCT baggage rack
13 09/0035.31 basket brace
14 10-060-00020 Mud guard brace
15 10-030-00024 Basket
16 10-000-00071 SCT spring element
17 10-070-00007 Differential gearing
18 10-070-00005 Deep groove ball bearing 6003
19L 10-070-00035 SCT axle short left 312.1 mm
19R 10-070-00036 SCT axle long right 382.2 mm
20 10-010-00061 SCT gear hub 7 gear RFN w. pinion
22 10-070-00038 SCT chain tensioner
23 10-000-00072 SCT slide bush for rocker bearing
24 10-000-XXXXX Rocker bearing 132x20x16
25 10-000-00073 SCT threaded rod
26 10-000-XXXXX Glider 32
27 10-070-00037 SCT crank set 38Z with double protection
28 10-070-00029 Chain protection tube
29 10-070-XXXXX Spacer plate
30 10-070-XXXXX Webbing for chain protection tube
31 10-040-00035 SCT handlebar black
32 10-040-00036 SCT handlebar adjustment unit
33 10-040-00037 SCT Spacer 3-part
36 10-040-00038 SCT control set 1 1/8" Ahead
37 11-060-XXXXX Impeller front 16" aluminium hollow chamber black hub dynamo
38 10-060-00101 SCT mud guard 16" front black
39 11-060-XXXXX Impeller rear 20" aluminium hollow chamber black
40 10-060-00100 SCT mud guard 20" rear black
Any unmarked components can be
purchased from specialist shops, as
they are not model-specic!
