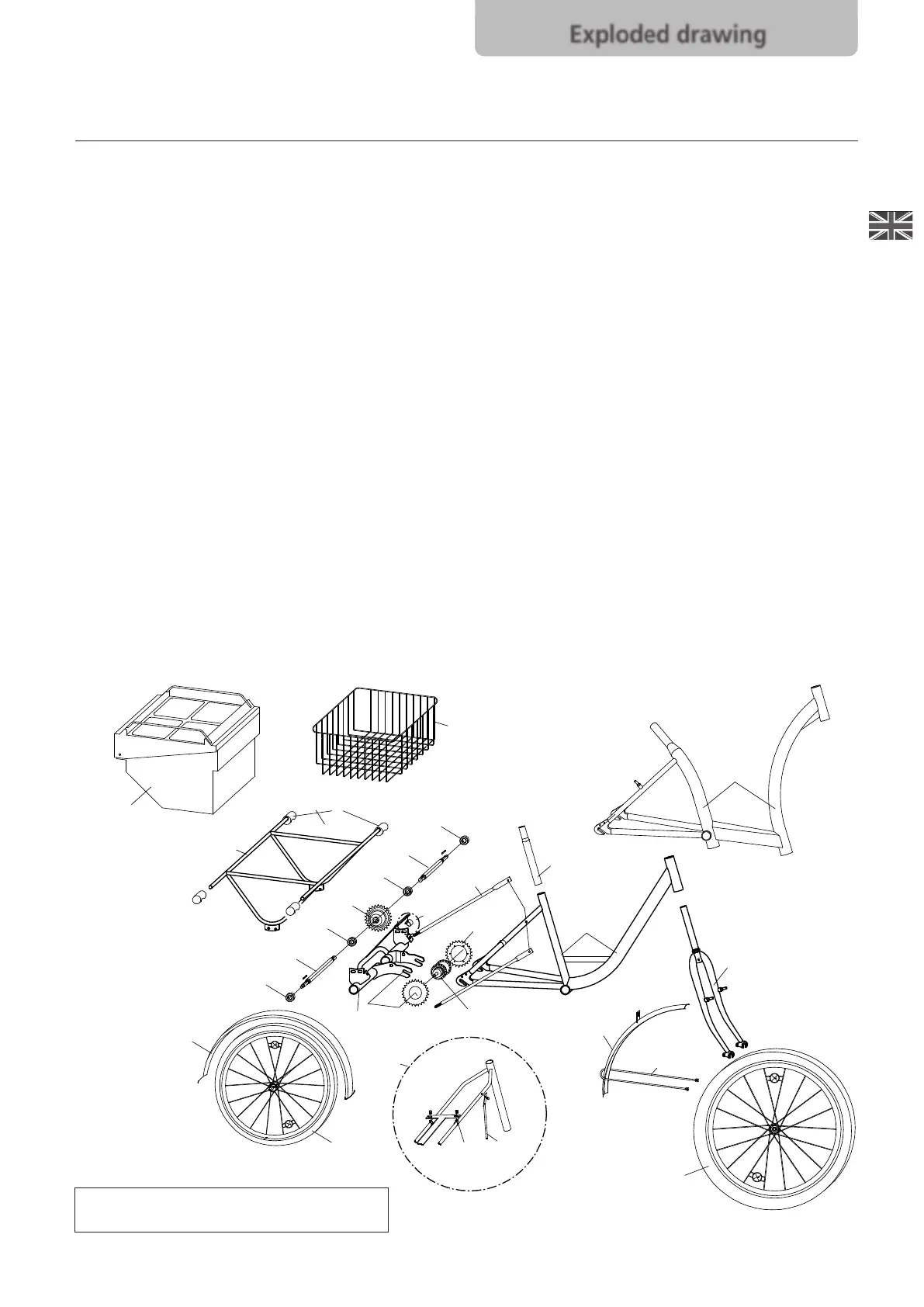

Exploded drawing
Part Proven Special Item
N
o: 26"-24" 26"-24"
1
10-000-00059 Frame Proven 26"
2 10-000-00063 Frame aluminium Special 26"
3 10-000-00052 Fork 26" rigid
4 10-000-0002 Fork 26" silver sprung
5 10-000-00061 10-000-00061 Axle housing Proven/Special
6 10-000-00060 10-000-00060 Tie rod
7 11-060-00002 Impeller front 26" aluminium box hub dynamo
8 11-060-00010 Impeller front 26" aluminium hollow chamber hub dynamo
9L 10-070-00002 10-070-00002 Axle f. 24"/26" short 299.9 mm
9
R 10-070-00001 10-070-00001 Axle f. 24"/26" long 369.9 mm
10 10-060-00009/silver 10-060-00008/black Mud guard 26" front
11 10-060-00023 10-060-00023 Wheel protection strut 26"
12 10-080-00030 Saddle bar Ø 28.6 mm rigid
13 10-080-00036 Saddle bar Ø 27.2 mm sprung
14 10-000-00008/silver 10-000-00051/black Basket brace
15 10-010-00002 cpl. 10-010-00002 cpl. Gear hub 3-gear back pedal brake cpl.
16 10-010-00016 cpl. 10-010-00016 cpl. Gear hub 7-gear back pedal brake cpl.
17 10-070-00007 10-070-00007 Differential gearing
18 10-070-00005 10-070-00005 Deep groove ball bearing 6003
19 10-060-00011/silver 10-060-00010/black Mud guard 24" rear
20 10-060-00020 10-060-00020 Mud guard brace
21 10-030-00002/silver 10-030-00001/black Basket
22 11-030-00001 11-030-00001 Box cpl. mounted lockable
23 10-010-00045 10-010-00045 Laser pinion 3-gear
24 10-010-00047 10-010-00047 Laser pinion 7-gear
25 11-060-00014 Impeller rear 24" aluminium box
26 11-060-00004 Impeller rear 24" aluminium hollow chamber
27 10-000-00062/11-15 mm 10-000-00062/21-23 mm Articulated pipe clamp for axle mounting nut M8
18
18
18
18
9R
9L
17
1
2
3,4
5
6
6
7,8
10
11
12,13
14
15,16
19
20
21
22
23,24
25,26
27
X
X
Any unmarked components can be purchased from
specialist shops, as they are not model-specic!
