PFIFF PFAU-Tec Pfautomatic - Page 23

62
9L
9R
18
17
18
18
18
1
2
3,4
5
6
7,8
16
10,11
12,13
14
15
19
20
21
22
23
25,26
27L
28
30
31
X
X
29
6
32
33
34
35,36
24
24
37,38
39
27R
Part Fusione/Compagno Unione/Colletivo Item
N
o: 26"-24"/26" 24"/24"
1
10-000-00074 Tandem frame Fusione/Compagno
2 10-000-00066 Tandem frame Unione/Collettivo
3 10-000-00026 Fork 26" rigid
4 10-000-00028 Fork 24" rigid
5 10-000-00061 10-000-00061 Axle housing
6 10-000-00060 10-000-00060 Tie rod
7 11-060-00010 Impeller front 26
" aluminium hollow chamber hub dynamo
8 11-060-XXXXX Impeller front 24" aluminium hollow chamber hub dynamo
9L 10-070-00002 10-070-00002 Axle f. 24"/26" short 299.9 mm
9R 10-070-00001 10-070-00001 Axle f. 24"/26" long 369.9 mm
10 10-060-00008/black Mud guard 26" front
11 10-060-00012/black Mud guard 24" front
1
2 10-060-00023 Wheel protection strut 26
"
13 10-060-00024 Wheel protection strut 24"
14 10-000-00008 10-000-00008 Basket brace
15 10-010-00016 cpl. 10-010-00016 cpl. Gear hub 7-gear back pedal brake cpl.
16 11-060-00004/Fusione 11-060-00004/Unione Impeller rear 24
" aluminium hollow chamber
16 11-060-00005 Impeller rear 26" aluminium hollow chamber Sram 7-gear
16 11-060-XXXXX Impeller rear 24" aluminium hollow chamber Sram 7-gear
17 10-070-00007 10-070-00007 Differential gearing
18 10-070-00005 10-070-00005 Deep groove ball bearing 6003
19 10-060-00010 Mud guard 24
" rear, Fusione & Unione
19 10-060-00012/black Mud guard 24" rear, Collettivo
19 10-060-00050/black Mud guard 26
" rear, Compagno
20 10-060-00020 10-060-00020 Mud guard brace
21 10-030-00001 10-030-00001 Basket
22 11-030-00001 11-030-00001 Box cpl. mounted lockable
23 10-010-00047 10-010-00047 Laser pinion 7-gear
24 10-040-00016 10-040-00016 Ball and socket head
25 10-080-00040 10-080-00040 Saddle bar Ø 27.2 mm rigid
26 10-080-00036 10-080-00036 Saddle bar Ø 27.2 mm sprung
27L&R 10-070-00039 10-070-00039 Crank set 38Z. left and right, rear
28 10-070-00040 10-070-00040 Crank set 38Z. left, crank right, front
29 10-000-00062/21-23 mm 10-000-00062/21-23 mm Articulated pipe clamp for axle mounting nut M8
30 08/0065.06 08/0065.06 Sprocket
31 08/0065.04 08/0065.04 Idling sprocket
32 08/0065.05 08/0065.05 Chain pipe brace
33 10-070-00029 10-070-00029 Chain protection tube
34 10-100-00037 10-100-00037 Pipe clamp D=12 mm
35 08/0065.23 Steering bar frame 50/50
36 08/0065.22 Steering bar frame 50/30
37 08/0065.21 Steering column frame 50/50
38 08/0065.20 Steering column frame 50/30
39 10-040-XXXXX 10-040-XXXXX PVC cap
Any unmarked components can be purchased from
specialist shops, as they are not model-specic!

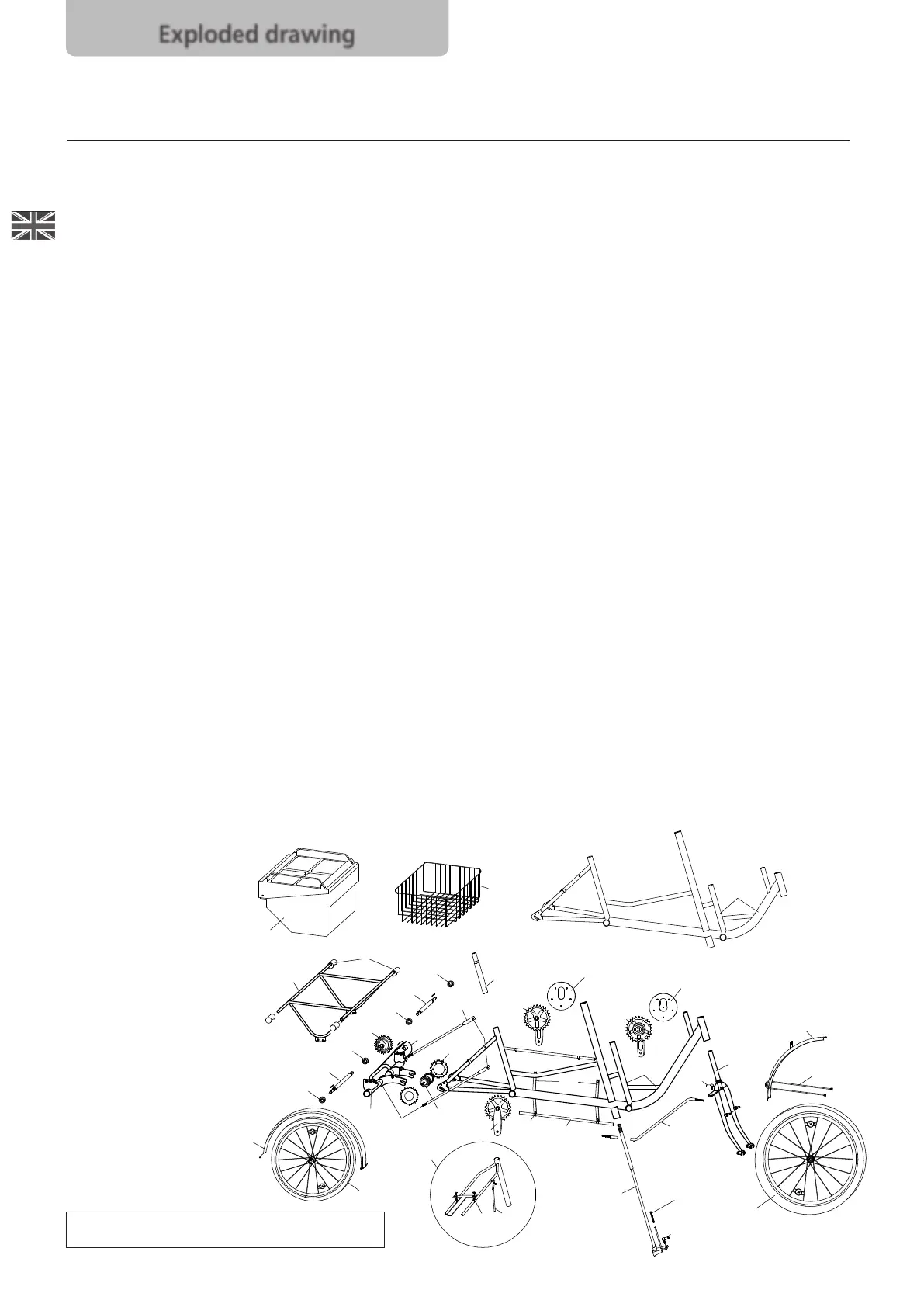

Exploded drawing
