63

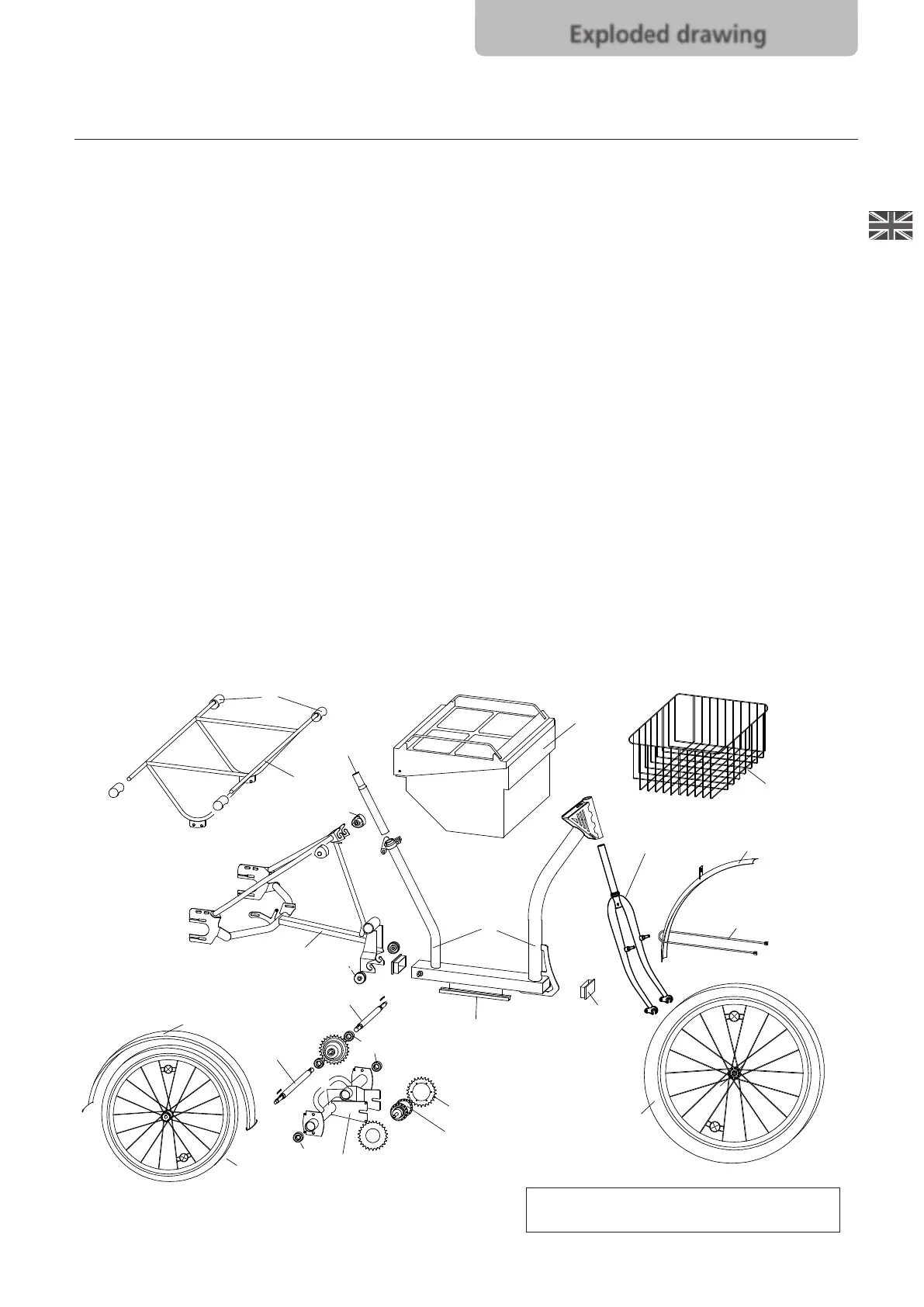

Exploded drawing
9L
9R
2
3
4,5
6
6
7
8
10
11
12,13
14
15
16
17,18
19
20
20
21
22
24
23
25
26
27,28
P
art Robusto Standard (S) Mobile Picco Famoso Item
No: 26"-24" Delux (D) 24"-20" 18"-16" 12"
2 10-000-00006 S+D 10-000-00010 10-000-00014 10-000-00018 Chainstays
3 10-000-00005 S+D 10-000-00009 10-000-00013 10-000-00017 Main frame
4 10-000-00027 D Fork 26 " silver sprung
5 10-000-00026 S 10-000-00028 10-000-00029 10-000-00030 Fork rigid
6 10-000-00007 S+D 10-000-00011 10-000-00015 10-000-00019 Axle housing
7 1
1-060-00003
S
+D
1
1-060-00009 11-060-00007 11-060-00011
I
mpeller front
8 11-060-00004 S+D 11-060-00015 11-060-00016 11-060-00017 Impeller rear
9R 10-070-00001 S+D 10-070-00003 10-070-00003 10-070-00003 Axle right
9L 10-070-00002 S+D 10-070-00004 10-070-00004 10-070-00004 Axle left
10 10-060-00008 S+D 10-060-00012 10-060-00014 10-060-00016 Mud guard front
11 10-060-00023 S+D 10-060-00024 10-060-00025 10-060-00026 Wheel protection strut
12 10-080-00047 S 10-080-00047 10-080-00005 10-080-00005 Saddle bar rigid
13 10-080-00036 D Saddle bar Ø27.2 mm sprung
14 10-000-00008 S+D 10-000-00012 10-000-00016 10-000-00020 Basket brace
1
5
1
0-020-00003
S
+D
1
0-020-00003 10-020-00003 10-020-00003
S
tar grip nut M8
16 10-020-00002 S+D 10-020-00001 10-020-00001 10-020-00001 Knurled nut M8
17 10-010-00002 cpl. S 10-010-00002 cpl. 10-010-00002 cpl. 10-010-00002 cpl. Gear hub 3-gear back pedal brake cpl .
18 10-010-00016 cpl. D Gear hub 7-gear back pedal brake cpl.
19 10-070-00007 S+D 10-070-00007 10-070-00007 10-070-00007 Differential gearing
20 10-070-00005 S+D 10-070-00005 10-070-00005 10-070-00005 Deep groove ball bearing 6003
21 10-060-00010 S+D 10-060-00013 10-060- 00015 10-060-00017 Mud guard rear
22 10-060-00020 S+D 10-060-00020 10-060-00020 10-060-00020 Mud guard brace
23 10-030-00001 S 10-030-00003 10-030-00003 10-030-00003 Basket
24 11-030-00001 D Box cpl. mounted lockable
25 10-000-00032 S+D 10-000-00033 10-000-00034 10-000-00035 Cable duct
26 10-000-00037 S+D 10-000-00037 10-000-00038 10-000-00038 Ribbed insert for footboard
27 10-010-00045 S 10-010-00045 10-010-00045 10-010-00045 Laser pinion 3-gear
28 10-010-00047 D Laser pinion 7-gear
Any unmarked components can be purchased from
specialist shops, as they are not model-specic!
