Any unmarked components can be purchased from
specialist shops, as they are not model-specic!
P
art Capo Bene Item
No: 20"-26" 24"-20"
1 10-000-00045 10-000-00048 Frame cpl.
2 10-000-00057 06/0045.16 Chainstays T-Bike
4 05/0045.34 06/0045.34 Steering plate left
5 05/0045.37 05/0045.37 Steering plate right
6 05/0045.25 06/0045.25 Bearing seat steering bar
8 05/0045.33 06/0045.33 Mud guard seat
9 05/0045.16 06/0045.16 Tie rod
10 05/0045.19 06/0045.19 Steering bar
12 05/0045.31 05/0045.31 Steering column
14 10-050-00016 10-050-00016 Brake anchoring left
15 10-050-00017 10-050-00017 Brake anchoring right
16 11-060-00008 11-060-00008 Impeller front 20" with drum brake
17 10-060-00053 10-060-00053 Quick release axle
18 10-040-00015 10-040-00015 Deep groove ball bearing 6201 wheel mount
19 10-070-00005 10-070-00005 Deep groove ball bearing 6003 steering column
20 10-040-00016 10-040-00016 Ball and socket head
21 10-040-00018/21 10-040-00018/21 Threaded pin M8x40/M8x50
22 10-060-00020 10-060-00020 Mud guard brace
23 10-060-00049 10-060-00049 Mud guard 20" front silver
24 10-060-00050 10-060-00045 Mud guard rear silver
25 11-060-00006 11-060-00018 Impeller rear 3-gear
27 04/0020.35 04/0020.35 Cable duct
28 10-030-00014 10-030-00014 Basket front
29 10-060-00007 10-060-00007 Plug hub
30 10-000-00037 10-000-00037 Ribbed insert for footboard 80x40
31 10-020-00003 10-020-00003 Star grip nut M8
32 10-020-00002 10-020-00002 Knurled nut M8 49 mm
33 10-080-00047 10-080-00047 Saddle bar Ø 31.0 mm rigid
36 10-050-00015 10-050-00015 Distance piece 25 x 17.5 x 8.4

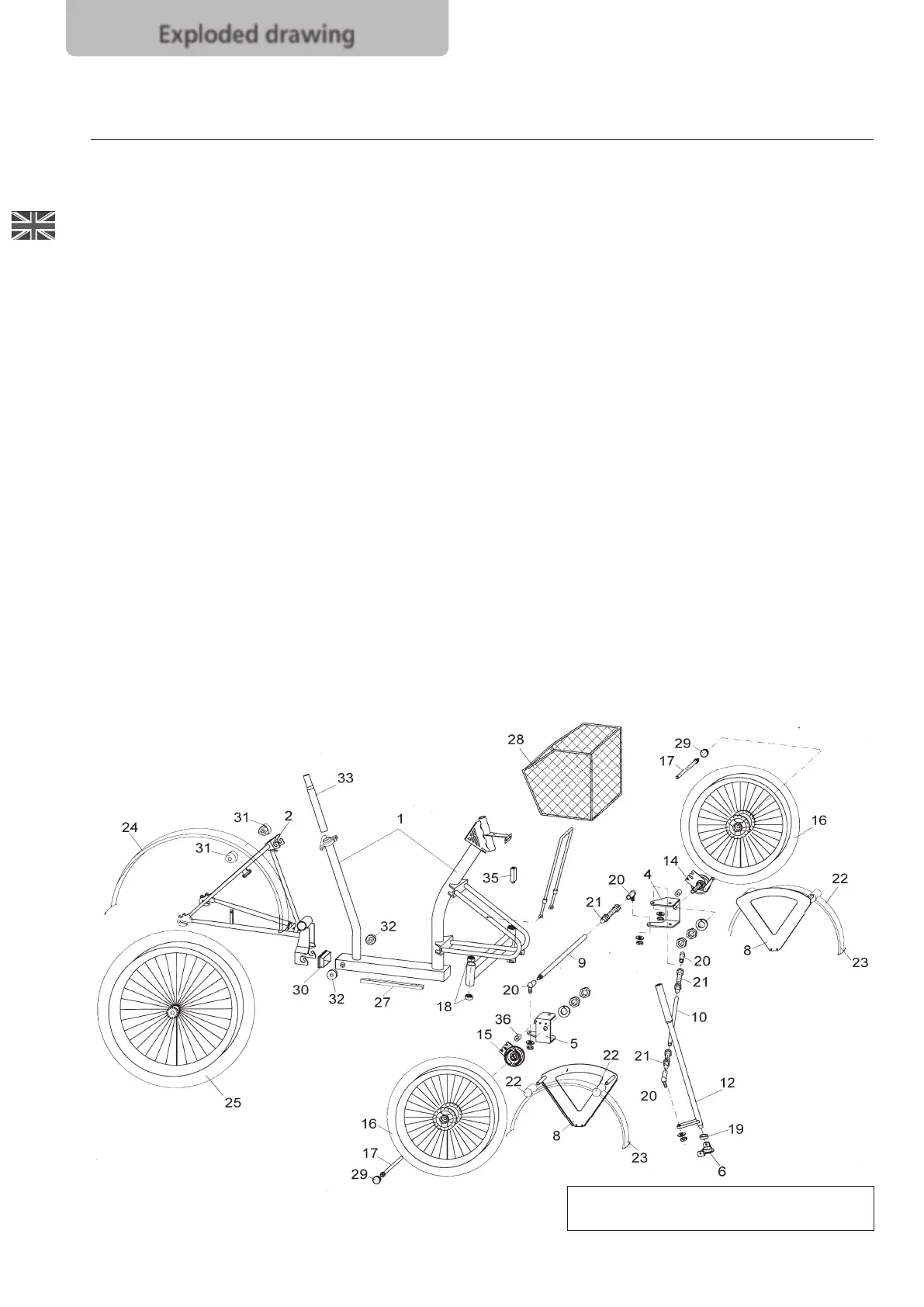

Exploded drawing
To Next Page
