PFT G 4 - Page 49

WUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUW
WUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUW
WUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUW
WVWUWVWUWUWVWUWVWUWUWVW

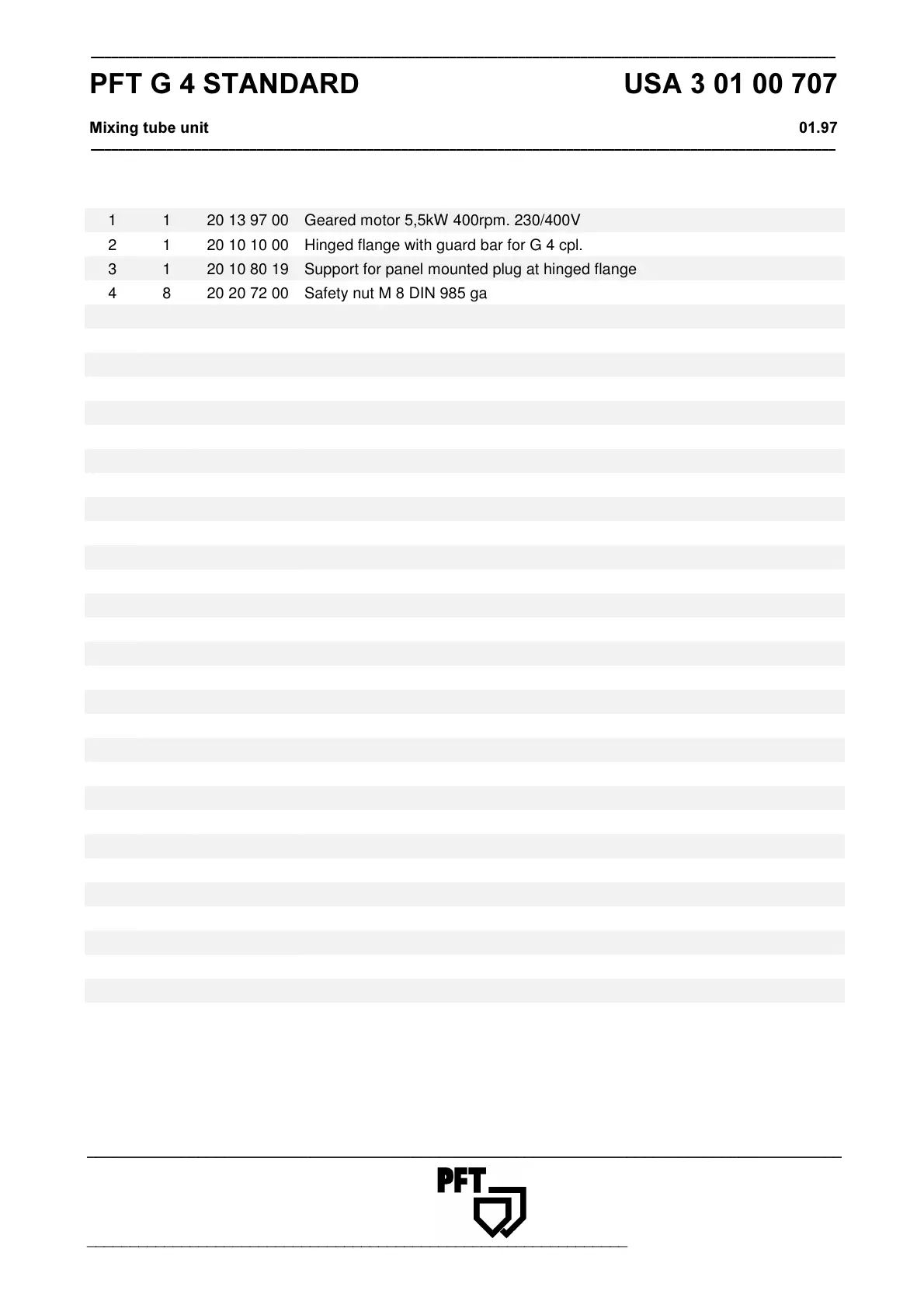

3)7*67$1'$5' 86$
0L[LQJWXEHXQLW 
WUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVW
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
BBBBBBBBBBBBBBBBBBBBBBBB

________________________________________________________________________________________
1R

4W\

$UW1R 'HVLJQDWLRQ
1 1 20 13 97 00 Geared motor 5,5kW 400rpm. 230/400V
2 1 20 10 10 00 Hinged flange with guard bar for G 4 cpl.
3 1 20 10 80 19 Support for panel mounted plug at hinged flange
4 8 20 20 72 00 Safety nut M 8 DIN 985 galv.
5 2 20 20 63 23 Saucer-head screw M8 x 25 DIN 603 galv.
6 2 20 43 09 30 Skintop screw connection PG 16
7 1 20 42 53 00 Panel mounted housing with plug CEE 7 x 16A 6h red no.2166
8 1 20 10 08 01 Snap lock with safety device
9 1 20 10 08 04 Spring
10 1 20 10 08 02 Snap lock
11 1 20 10 08 03 Handle for snap lock
12 2 20 20 85 19 Dowel pin 8 x 40 DIN 1481
13 1 20 20 85 22 Pin 8 H11 x 58 x 54 with washer and spline galv.
14 1 20 54 76 02 Dowel pin 5 x 36 DIN 1481
15 1 20 20 99 74 Screw for snap lock
16 1 20 20 99 71 Nut for snap lock M14x1,5
17 2 20 20 78 01 Hex. screw M8 x 35 DIN 933 galv.
18 2 20 20 78 00 Hex. screw M8 x 30 DIN 933 galv.
19 1 20 10 29 01 Guard for hauling bracket G 4 RAL 2004
20 1 20 10 09 00 Gasket motor hinge flange G 4 20 x 15 x 750
21 1 20 10 06 50 Mixing tube G 4/G 5 with adaptable suction flange RAL2004
22 1 20 20 11 00 Geka coupling 1" int. Thread
23 1 20 20 17 00 Gasket Geka-coupling
24 1 20 20 11 00 Geka coupling 1" int. Thread
25 1 20 10 10 10 Splint D 4,5 with ring
26 1 20 10 12 02 Hinged bolt pin for motor hinged flange galv.
27 1 20 10 35 10 Mixing shaft reinforced for G 4/G 5 RAL2004
28 1 20 10 23 00 Cleaning shaft for D/R pumps RAL 2004
29 1 20 10 23 20 Mixing tube cleaner for D- and R-pumps
30 2 20 20 77 00 Hex. screw M8 x 60 DIN 933 galv.
31 1 20 10 29 10 Hauling bracket G 4 with round funnel, with screws & nuts
32 1 20 42 97 00 Coupling CEE 7 x 16A 6h red no. 746
33 1 20 10 41 05 Wire rope
34 1 20 10 41 06 Aluminium round clamp NG 3 mm
:DUQLQJ,WHPVZLWKRXWSDUWQXPEHUVFDQQRWEHVXSSOLHG
