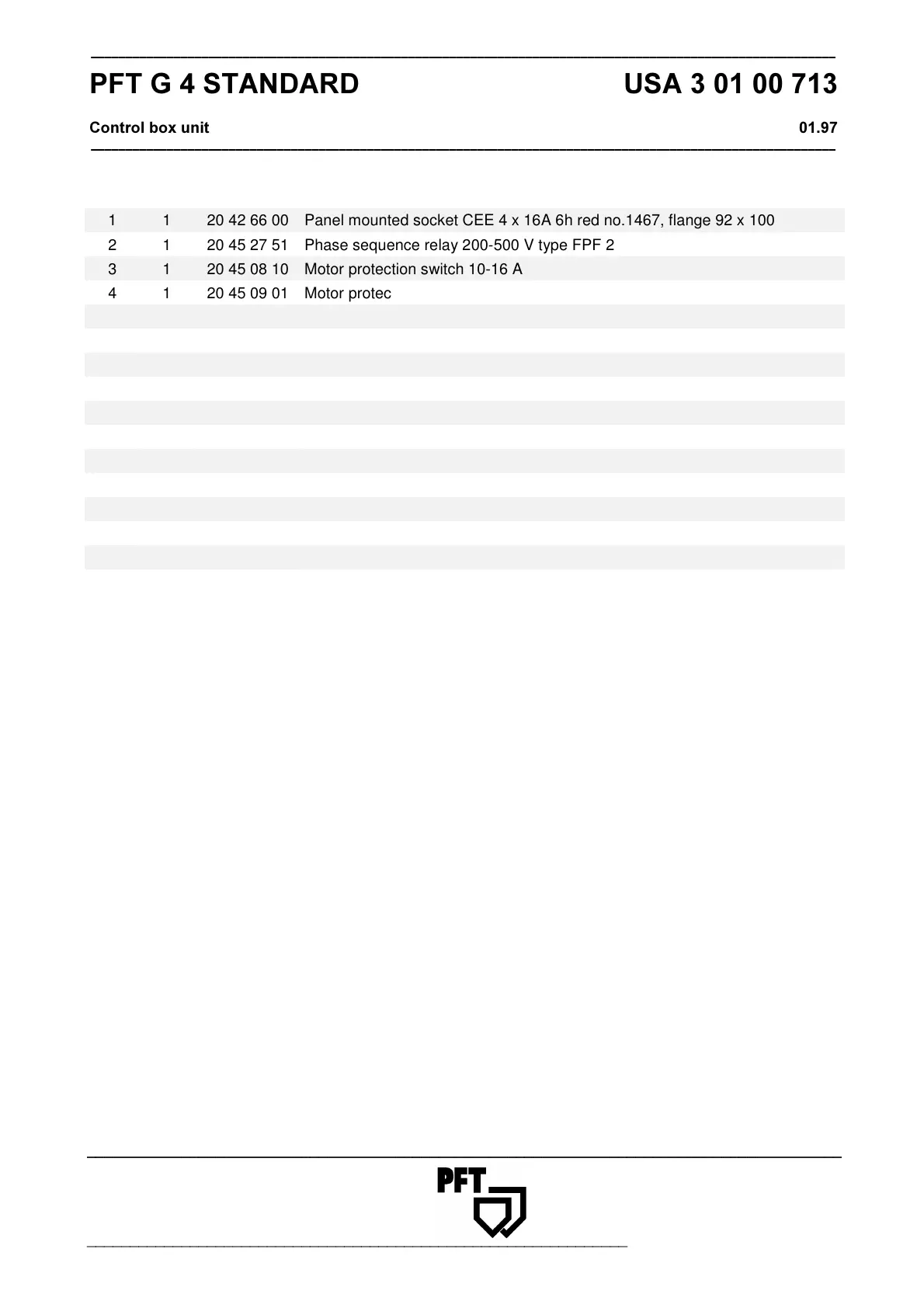

PFT G 4 - Page 55

WUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUW
WUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUW
WUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUW
WVWUWVWUWUWVWUWVWUWUWVW
3)7*67$1'$5' 86$
&RQWUROER[XQLW 
WUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVW
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
BBBBBBBBBBBBBBBBBBBBBBBB

________________________________________________________________________________________
1R

4W\

$UW1R 'HVLJQDWLRQ
1 1 20 42 66 00 Panel mounted socket CEE 4 x 16A 6h red no.1467, flange 92 x 100
2 1 20 45 27 51 Phase sequence relay 200-500 V type FPF 2
3 1 20 45 08 10 Motor protection switch 10-16 A
4 1 20 45 09 01 Motor protection switch 1.6-2.5 A
5 1 20 45 04 20 Auxillary contact 20 DIL E to fix at top
6 1 20 44 66 10 Contactor DIL EM 10 42V 50Hz/48V 60Hz
7 1 20 45 04 10 Auxillary contact 31 DIL M to fix at top
8 1 20 44 71 00 Contactor DIL 0M 42V
9 3 20 41 93 10 Automatic circuit breaker 16A 3 phase
10 1 20 46 08 00 Transformer 230/400V 42V (100VA) fuse 5 x 30 mm
2 20 41 90 80 Fuse 5 X 30, 0.315A
1 20 41 90 21 Fuse 5 x 20, 2.0 A
11 1 20 42 72 00 Panel mounted socket Schuko 16A blue no. 10436
12 1 20 42 72 10 Panel mounted socket Schuko 16A grey no. 10199
13 3 20 43 09 30 Skintop screw connection PG 16
14 3 20 43 09 44 Nut for Skintop screwed joint PG 16
:DUQLQJ,WHPVZLWKRXWSDUWQXPEHUVFDQQRWEHVXSSOLHG
