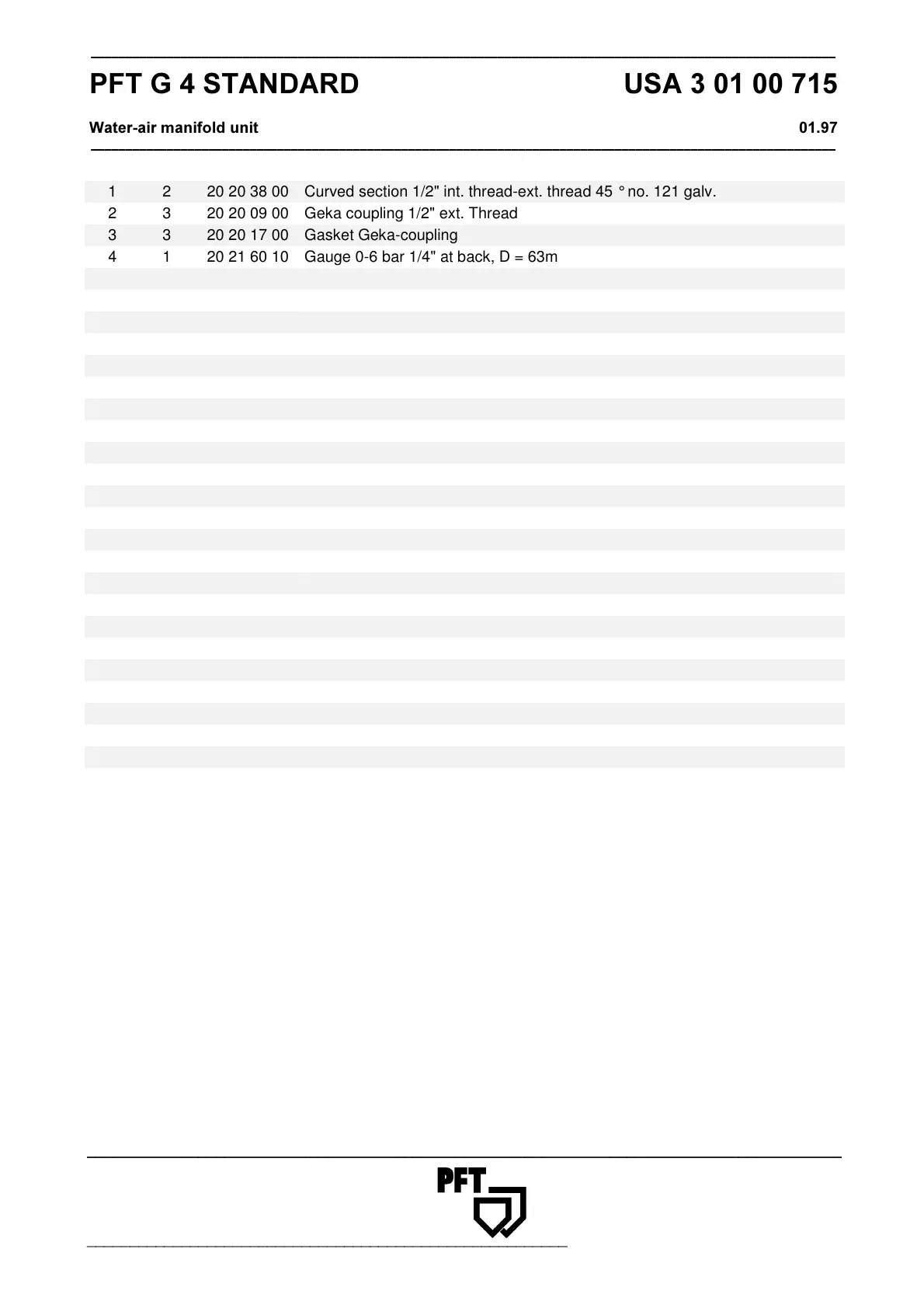

PFT G 4 - Page 57

WUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUW
WUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUW
WUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUW
WVWUWVWUWUWVWUWVWUWUWVW
3)7*67$1'$5' 86$
:DWHUDLUPDQLIROGXQLW 
WUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVW
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
BBBBBBBBBBBBBBBBBBBBBBBB

________________________________________________________________________________________
1R

4W\

$UW1R 'HVLJQDWLRQ
1 2 20 20 38 00 Curved section 1/2" int. thread-ext. thread 45 ° no. 121 galv.
2 3 20 20 09 00 Geka coupling 1/2" ext. Thread
3 3 20 20 17 00 Gasket Geka-coupling
4 1 20 21 60 10 Gauge 0-6 bar 1/4" at back, D = 63mm
5 1 20 20 36 00 Curved section 3/8" int. thread-ext. thread no. 92 galv.
6 1 20 19 04 00 Hose screw joint 3/8" ext. thread socket 1/2"
7 2 20 20 25 00 Hose clip 20-23 packing unit=10ST
8 1 20 21 35 00 Water-/air hose 1/2" x 580mm
9 1 20 20 21 00 EWO-coupling male with socket 1/2"
10 1 20 21 52 01 Handle for tap (20215200)
11 1 20 21 52 02 Upper section for tap 20 21 52 00
12 1 20 21 52 00 Tap 1/2" without drainer
13 1 20 15 20 00 Water inlet filter for Geka coupling
14 2 20 10 25 00 Water/air distribution tube
15 1 20 10 26 11 Clip for water flow meter 150-1500 l/h RAL 2004
16 4 20 43 14 00 Nut for Skintop screwed joint PG 11
17 1 20 42 48 00 Distribution box cpl.
18 2 20 20 63 05 Cheese-head screw M4 x 12 DIN 84
19 1 20 44 76 31 Connection cable water pressure switch G 4
20 4 20 44 76 30 Connection cable air pressure switch G 4
21 1 20 21 60 00 Gauge 0-10 bar 1/4" at bottom, D = 63mm
22 3 20 20 64 00 Hex. nut M8 DIN 934 galv.
23 1 20 20 78 10 Hex. screw M8 x 25 DIN 933 galv.
24 1 20 44 86 00 Protection cover for pressure switch (20 44 76 00) FF4
25 2 20 20 37 10 Double nipple hex. 3/8" no. 280 galv.
26 1 20 44 76 00 Pressure switch Typ FF4-4 0,22-4bar
27 2 20 20 93 13 Washer B 8,4 DIN 125 galv.
28 3 20 20 64 00 Hex. nut M8 DIN 934 galv.
:DUQLQJ,WHPVZLWKRXWSDUWQXPEHUVFDQQRWEHVXSSOLHG
