1R

4W\

$UW1R 'HVLJQDWLRQ

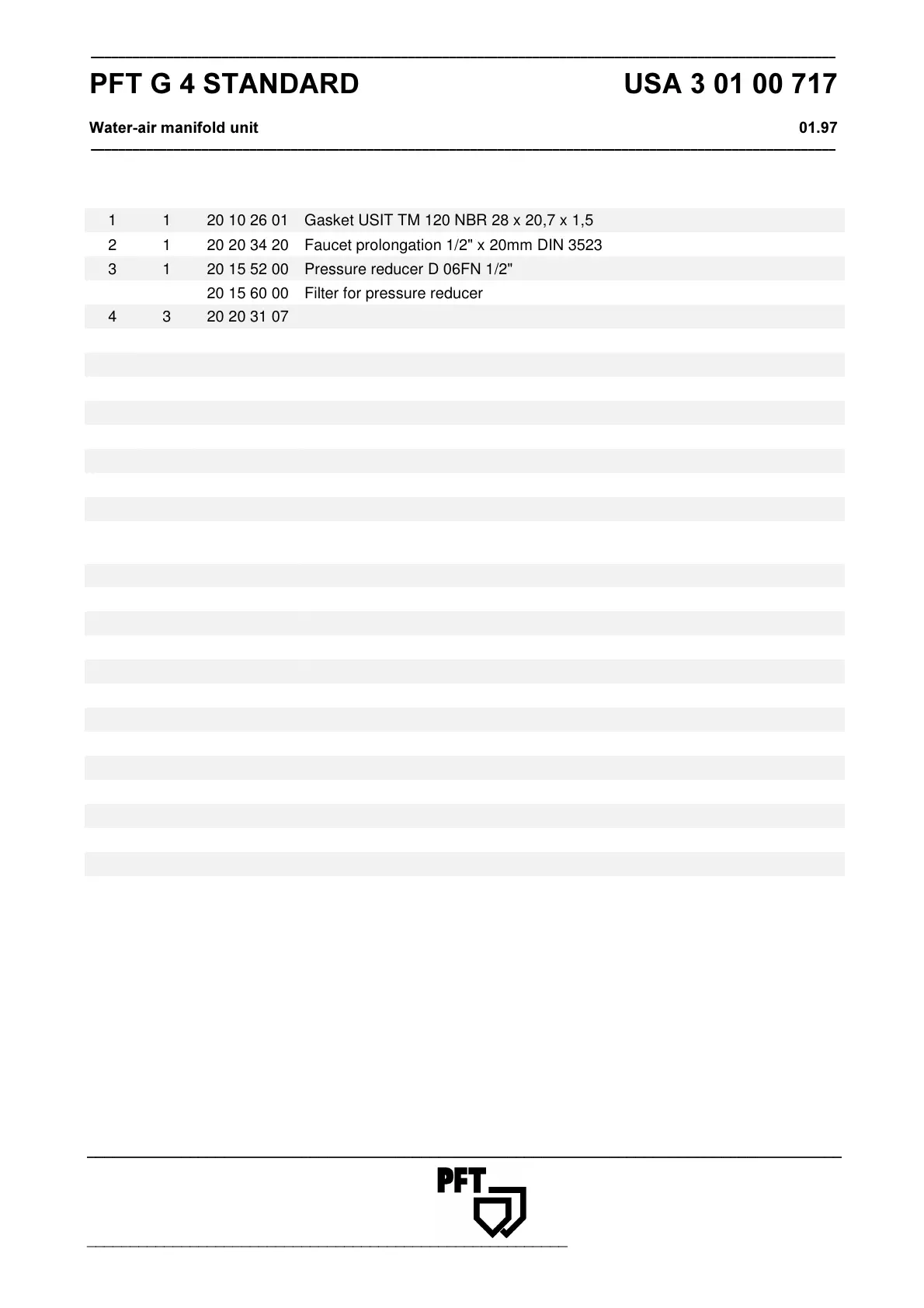

1 1 20 10 26 01 Gasket USIT TM 120 NBR 28 x 20,7 x 1,5
2 1 20 20 34 20 Faucet prolongation 1/2" x 20mm DIN 3523
3 1 20 15 52 00 Pressure reducer D 06FN 1/2"
20 15 60 00 Filter for pressure reducer
4 3 20 20 31 07 Nipple 1/2" ext. thread flat with nut 3/4" int. thread
5 1 20 15 26 13 Solenoid valve 1/2" 42V type 6213 A
6 1 20 20 51 11 Reducing nipple 3/4" ext. thread 1/2" int. thread DIN 3523 30mm brass
7 1 20 20 33 00 Double nipple 1/2" x 100 no. 23 galv.
8 1 20 20 45 21 T-piece 1/2" 1/2" 3/8" int. thread no. 130 galv.
9 1 20 19 03 20 Tap 3/8" ext. thread with socket 10mm
10 1 20 20 26 10 Hose clip 15-18 packing unit=10ST
11 1 20 19 05 30 Hose section 9mm x 220mm
12 1 20 20 34 00 Double nipple 1/2" x 40 no. 23 galv.
13 1 20 20 31 05 Nipple with conical socket 1/2" ext. thread with reducer nut 3/4" int. thread for
item no.20 15 77 00
14 1 20 15 77 00 Needle valve 1/2" type 6701
15 1 20 15 78 00 Hand knob for needle valve 1/2"
16 1 20 20 17 00 Gasket Geka-coupling
17 1 20 20 16 00 Geka coupling 3/4" socket
18 2 20 20 24 00 Hose clip 23-28 packing unit=10ST
19 1 20 21 36 19 Water-/air hose 3/4" x 580mm
20 1 20 20 30 05 Hose kink eliminator Ø 3/4" for water/airhose 580mm
21 1 20 19 04 42 Hose screw joint 1/2" ext. thread socket 3/4"
22 2 20 20 36 10 Curved section 1/2" int. thread-ext. thread no. 92 galv.
23 2 20 18 33 10 Reduction nipple 1" ext thread - 1/2" int. thread plastic
24 2 20 18 32 00 O-ring 28,17 x 3,53 DIN 3771-NBR 70
25 1 20 18 34 00 Cone for water flow meter 1500
26 1 20 18 51 10 Plastic tube 150-1.500 l/h
27 1 20 18 50 04 Water flow meter 150-1500 l/h cpl.
:DUQLQJ,WHPVZLWKRXWSDUWQXPEHUVFDQQRWEHVXSSOLHG
