PFT G 4 - Page 61

WUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUW
WUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUW
WUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUW
WVWUWVWUWUWVWUWVWUWUWVW

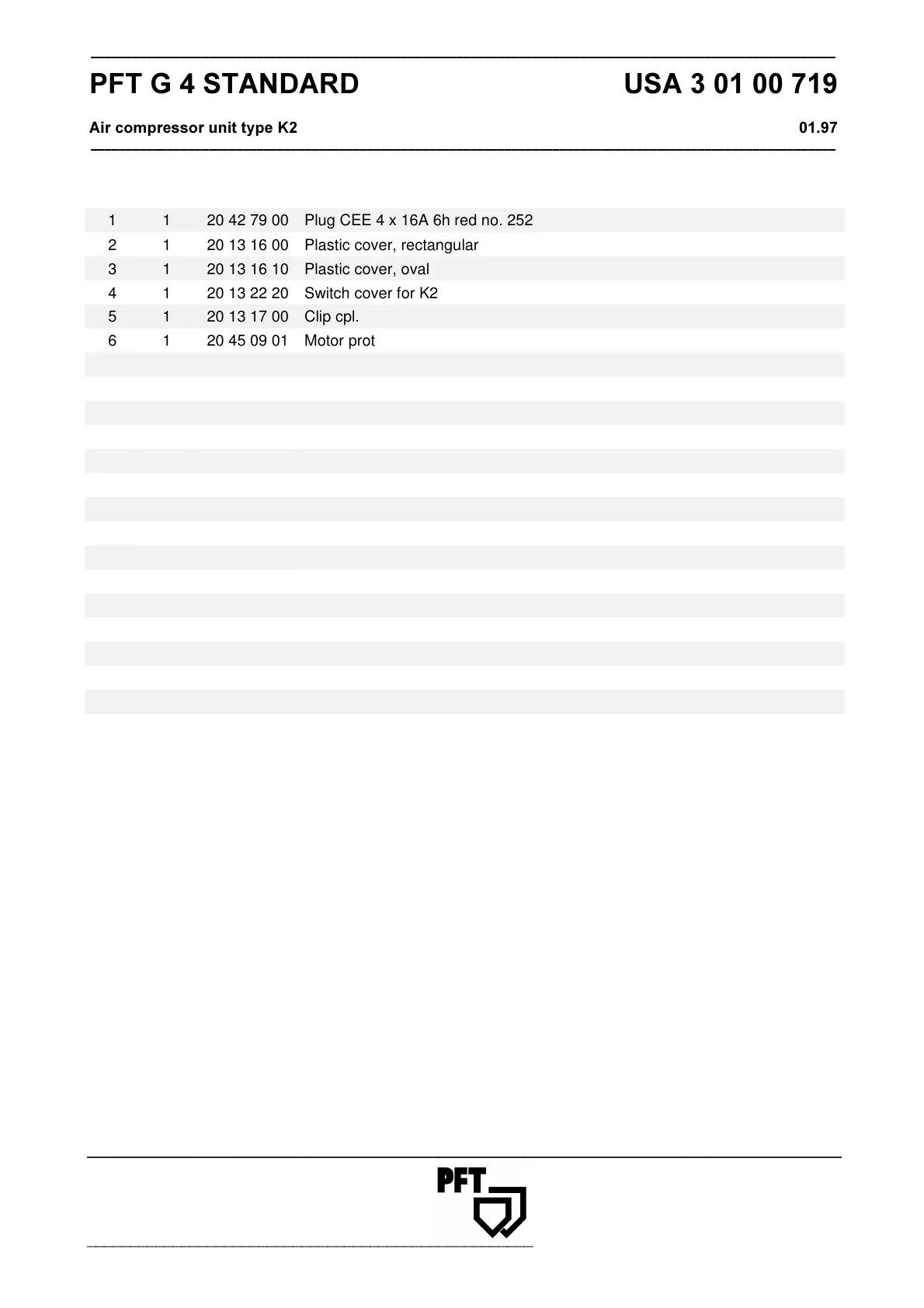

3)7*67$1'$5' 86$
$LUFRPSUHVVRUXQLWW\SH. 
WUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVWUWVWUWUWVW
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
BBBBBBBBBBBBBBBBBBBBBBBB

________________________________________________________________________________________
1R

4W\

$UW1R 'HVLJQDWLRQ
1 1 20 42 79 00 Plug CEE 4 x 16A 6h red no. 252
2 1 20 13 16 00 Plastic cover, rectangular
3 1 20 13 16 10 Plastic cover, oval
4 1 20 13 22 20 Switch cover for K2
5 1 20 13 17 00 Clip cpl.
6 1 20 45 09 01 Motor protection switch 1.6-2.5 A
7 1 20 13 40 00 Filter diam. 100mm
8 2 20 20 20 00 EWO coupling female 1/4" ext. thread non-blocking
9 5 20 13 47 00 Sealing ring 13 x 20 x 2
10 1 20 13 12 00 Safety valve 1/4" 3.5bar with washer
11 2 20 20 36 50 Curved section 1/4" int. thread-ext. thread no. 92 galv.
12 1 20 20 21 03 EWO-coupling male 1/4" ext. thread
13 1 20 15 52 10 Sealing ring D21 x 14 x 3 PTFE for tap at pressure reducer
14 1 20 21 90 51 Double counter flow valve 1/4"int.thread
15 2 20 19 04 12 Hose screw joint 1/4" ext. thread socket 1/4"
16 2 20 20 26 10 Hose clip 15-18 packing unit=10ST
17 1 20 19 05 10 Hose section 9mm x 310mm
18 1 20 13 01 06 Distributor for pressure switch-off
19 1 20 20 32 83 Double nipple hex. 1/4" no. 280 galv.
20 1 20 13 51 10 Pressure switch Typ FF53-5,1/4" 2-3bar 3-phase opener
21 1 20 13 51 11 Cover for pressure switch 20 13 51 10
:DUQLQJ,WHPVZLWKRXWSDUWQXPEHUVFDQQRWEHVXSSOLHG
