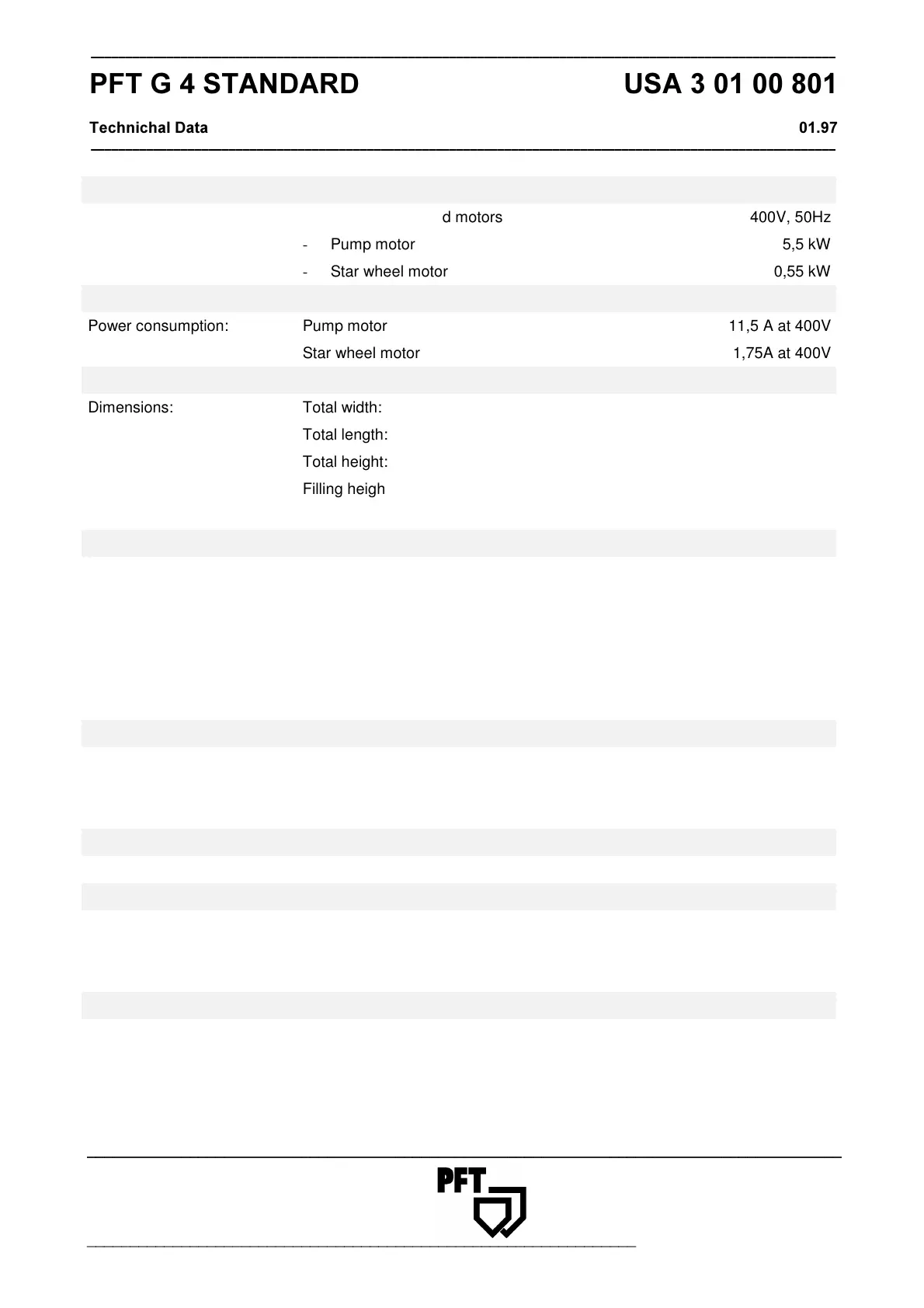

Drive: 2 three-phase geared motors
- Pump motor
- Star wheel motor
400V, 50Hz
5,5 kW
0,55 kW
Power consumption: Pump motor
Star wheel motor
11,5 A at 400V
1,75A at 400V
Dimensions: Total width:
Total length:
Total height:
Filling height / hopper capacity
Or with extension
730mm
1200mm
1550mm
930mm / 150l
1050mm / 200l
Weight: Machine
Motor hinged flage cpl.
Mixing pump
Mixing tube
Compressor
Total weight
approx. 141,0 kg
approx. 53,0 kg
approx 17,5 kg
approx 18,5 kg
approx 23,5 kg
approx 253,0 kg
Connections:
Only connect to electrical
panel
Power connection
Protection:
FI protection switch necessary!
400 V-three-phase, 32A
3 x 25A
Power source: Ar least 25 kVA
Water connection: ¾“ Hose At least 2.5 bar
Water pressure when
Machine is running
Machine performance:
Operating pressure:
5-55 l/min depending on
motor speed, mortar quality,
consistency and pump version
max. 30 bar
