BRAKE ADJUSTMENT
The clearance of lever
(a) Front brake: 10~20 mm
(b) Rear brake: 10~20 mm
Adjust the nut if necessary.
NOTE:
Please contact to PGO dealer if the clearance is
incorrect.

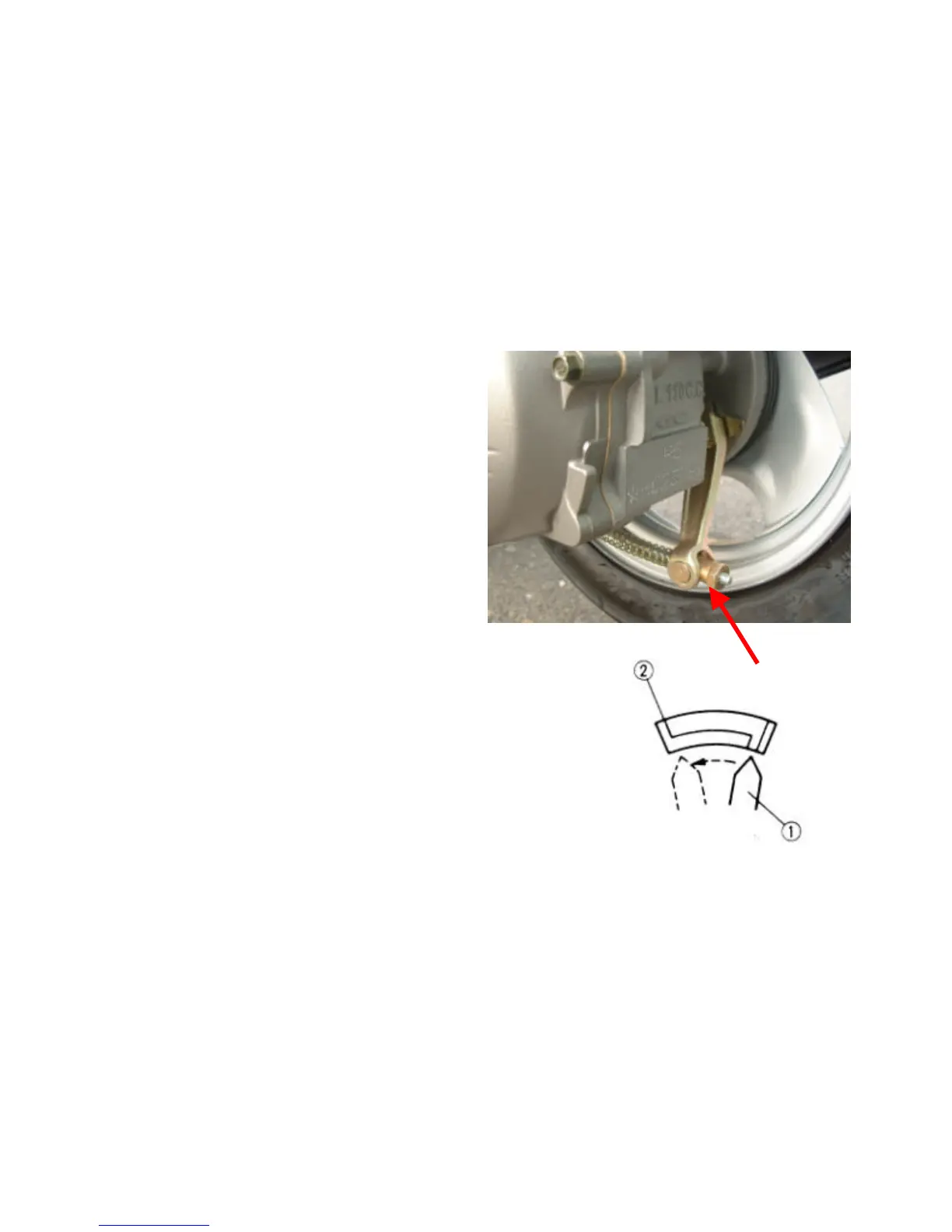

Rear brake check (only for Drum brake model)
The indicator will help you to easily screen the status
of brake function. Please replace the shoe of rear brake
if indicator reaches the warning line.
1. Brake indicator
2. Warning line
~39~
