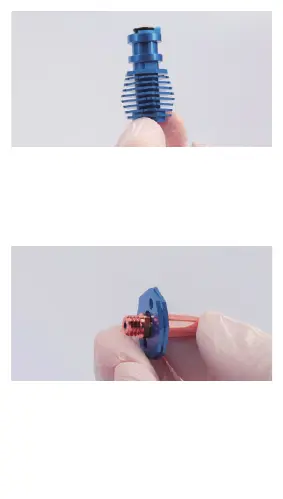

4. Screw the heat break into the side - A of heat
block by using 5mm open - ended wrench
(Attention: Side - A of heat block should be
completely attached to the heat break).
3. Assemble the heat sink rib through the threaded
end at the bottom of the heat break, to the middle
of the heat break (Make sure the side of the
countersunk hole of the rib is toward the threaded
end).
www.phaetus.com
02
