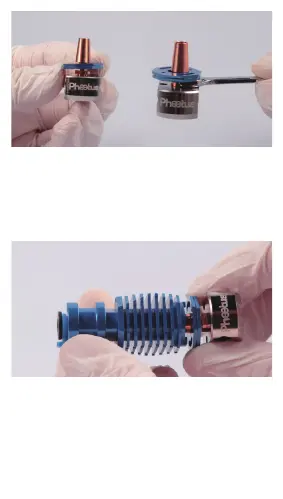

6. Put two M1.4 screws into the rib and use 1.27
hexagonal bar for locking.
5. Assemble the heat break into the heat sink and
adjust its position, so that the side plane of the
heat sink, which close to its threaded hole, and the
2 through holes on the heat block, are align with
the 2 holes on the heat sink.
www.phaetus.com
03
