连接风扇集线器
将风扇集线器4-PIN 线连接到主板PWM 4-pin风扇接口上
将额外的风扇连接到集线器的相应接口上
将SATA接头连接到电源
黑色 3针接口
黑色 4针接口
13

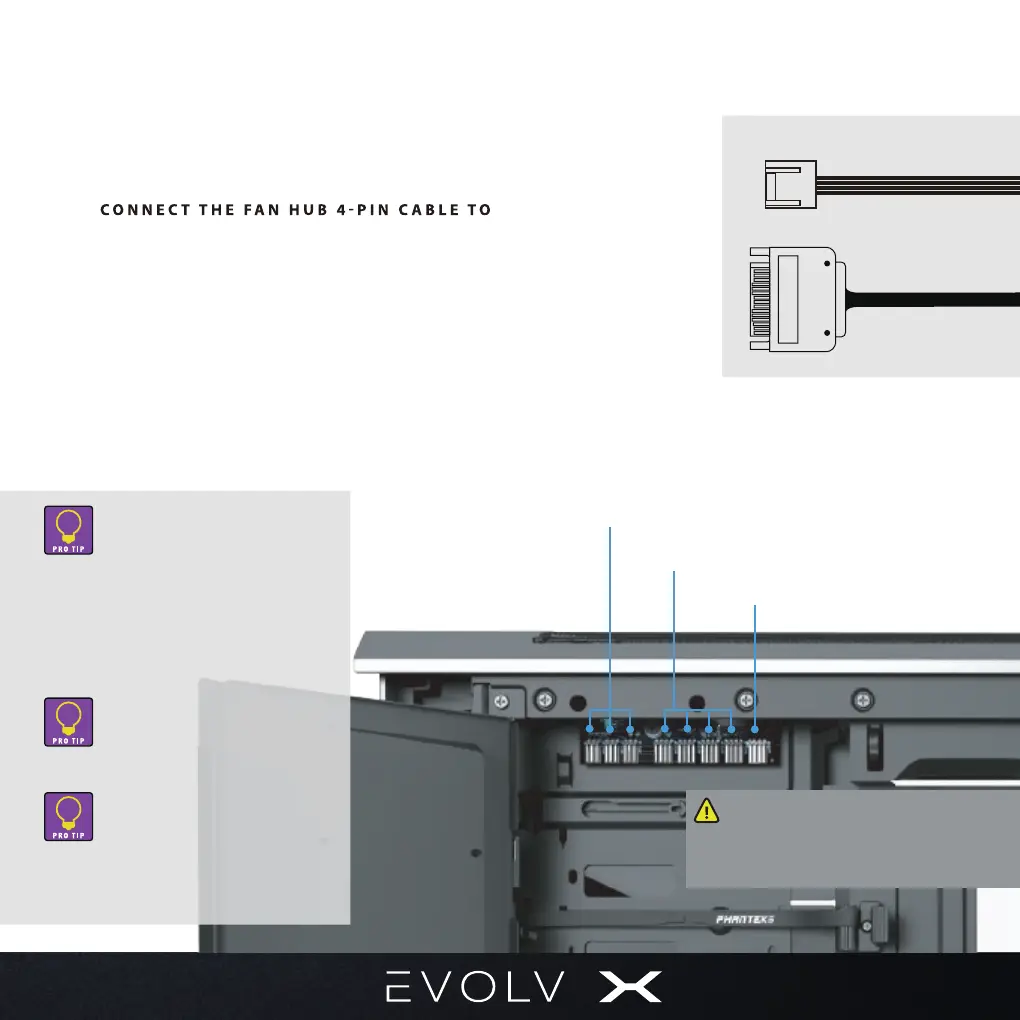

C ONNE C TING THE UNIVERSAL F AN HUB
The White Connector will provide the
RPM signal to the motherboard.
1.
2.
Y O U R M O T H ERBO ARD F A N HEA DER
C ONNEC T E X T R A F ANS T O T H E C O RRESPON D ING
C ONNEC T O R O N THE UNIVE R S A L F A N H U B
Choosing a PWM output provides the most
customization options in the motherboard
settings.
You can choose a PWM or DC output in the
motherboard settings. The Fan Hub will
automatically translate the signal to all
connected 3- and 4-pin fans.
Check
WWW.PHANTEKS.COM/FAQ for more technical
details.
3.
C ONNEC T T H E S A T A C ABLE T O T H E P O W E R S U PPL Y
W H ITE 3-/4-PIN UNIVERSAL
B L A C K 4 -PIN
B L A C K 3 -PIN
T O PSU
T O MO THERBO ARD
SATA
FAN HUB 4-Pin
Expand the number of fans with splitter
cables up to a maximum of 4A total power.
Splitter cables are sold separately:
PH-CB-Y4P / Y3P
连接主板
连接电源
您可以在主板设置中选择PWM或DC输出。风扇集线器会
自动将信号转换为所有连接的3针和4针风扇。
相关更多详情，请登录WWW.PHANTEKS.COM/FAQ
选择PWM输出可在主板中设置更多的自定义选项
使用分接线扩展风扇数量，最大可达4A总功率。
分接线单独出售：
PH-CB-Y4P / Y3P
白色 3/4针通用接口
必须接入1把风扇且只能接入1把风扇
白色端口为主板调试风扇转速信号，
