Phanteks NV7 - Bottom Fan and Radiator Installation; Bottom Fan;Radiator Bracket Installation

18

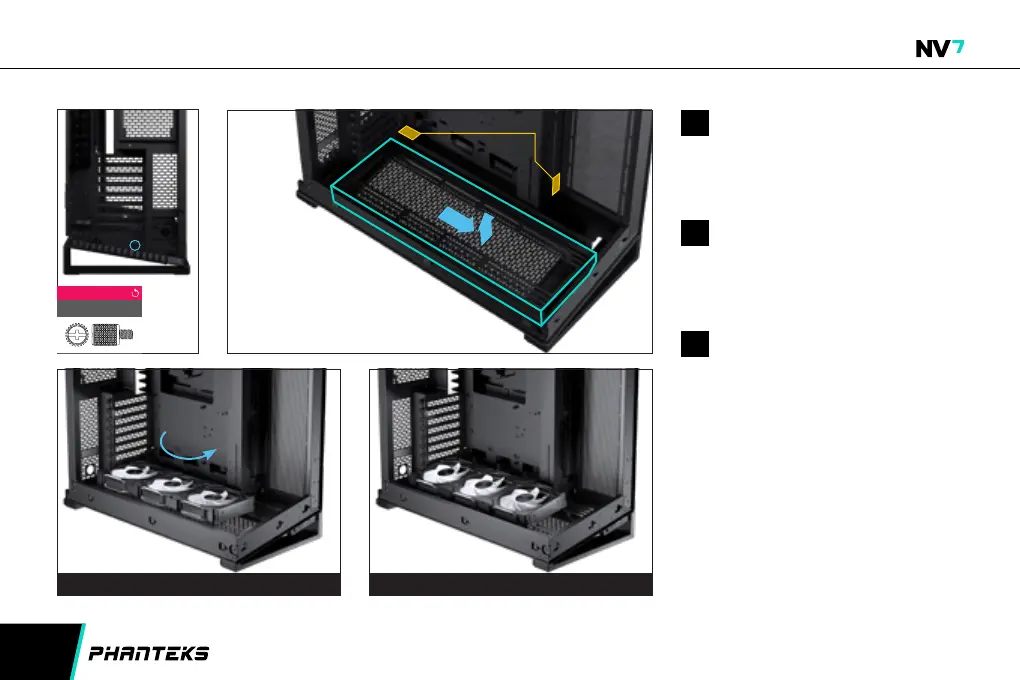

FAN & RADIATOR INSTALLATION
Install up to 3x 120mm / 3x 140 mm
fans and/or 280/360 radiator on to the
bracket.
Release the bracket by removing the
rear thumb screw. Slide the bracket to
the front to remove it.
Re-install the bracket by sliding it
towards the rear and secure it with the
thumb screw.
It is possible to install the bracket the
other way around for angled fans.
Fan cables can be routed through the
cut-outs on the rear and side.
Rotated bracket for angled fan positioningDefault bracket position for straight fans
BOTTOM FAN/RADIATOR BRACKET
02 INSTALL FANS/RADIATOR
01 REMOVE BOTTOM BRACKET
03 RE-INSTALL BOTTOM BRACKET
2
3
Rotate
180 degrees
for angled fans
1.
routing cut-outs
THUMB SCREW 1x
REMOVE
