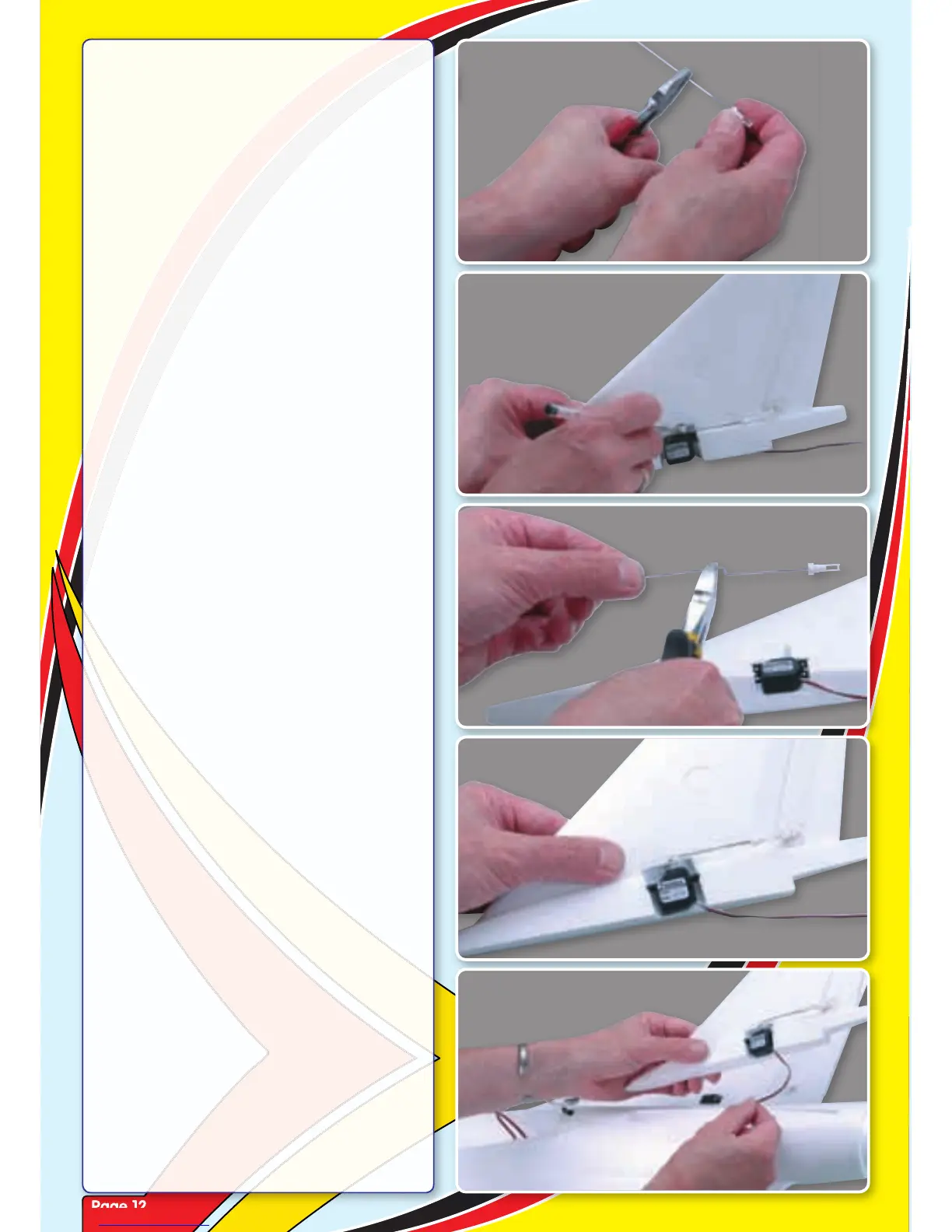

Step 41
Prepare a rudder pushrod by screwing a
clevis onto the rod until the thread is just
visible through the clevis.
Step 42
Centre the rudder servo and the rudder. Fit
the clevis in its horn and mark the position
the pushrod crosses the hole in the servo
horn one in from the outermost.
Step 43
Form a z-bend at the marked point and cut
off the excess pushrod wire as shown.
Step 44
Adjust the pushrod’s length by screwing the
clevis in or out until the rudder is centred.
Now push the clevis into the control horn
until it clicks.
Step 45
Thread the rudder servo lead though the
opening in the top of the fuselage and
ensure that the motor leads are pushed
down into their recess.
