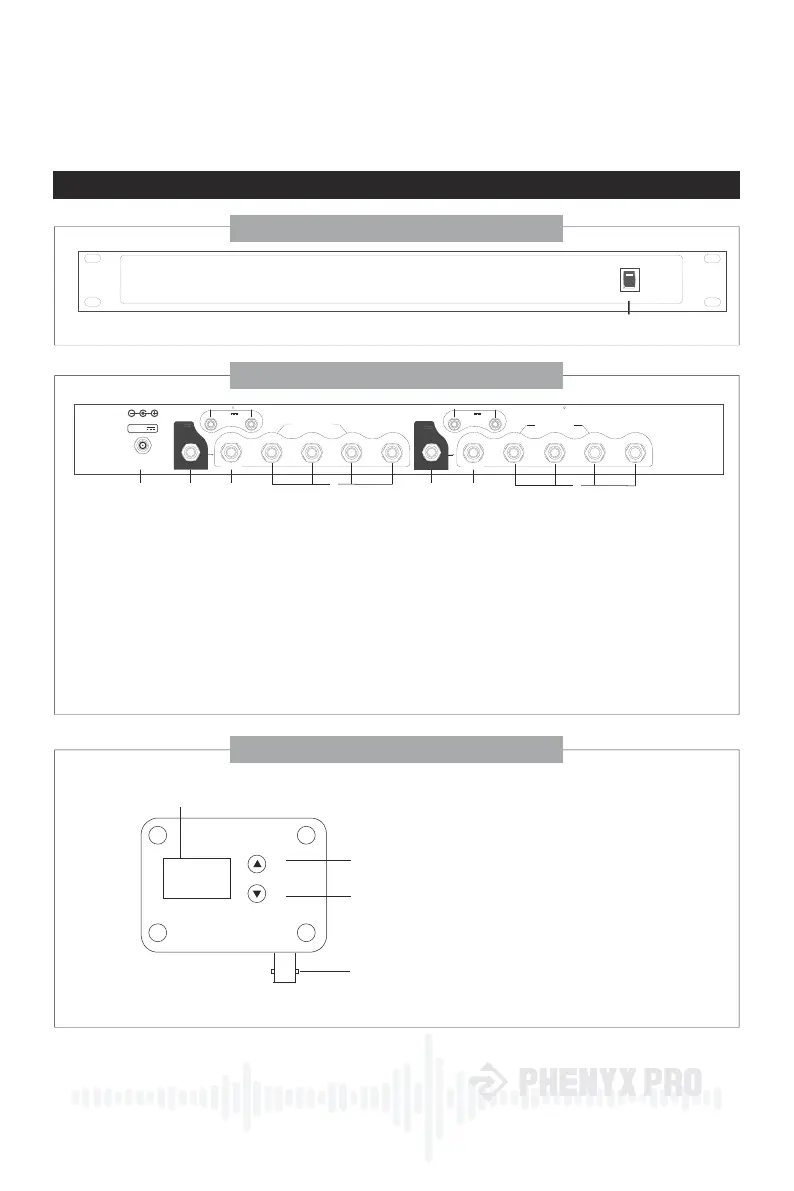

PHENYX PRO PAS-225 - Receiver and Antenna Components; Receiver Front Panel; Receiver Back Panel; Directional Antenna Features

®
5
Receiver
① Power Button
① DISPLAY SCREEN
② INCREASE SIGNAL GAIN
③ DECRESE DIGNAL GAIN
④ ANTENNA OUTPUT
Antenna output port to connect to
the antenna input port on the
PAS-225 receiver.
①
②
③
④
400-950MHZ
LOW NOISE
RE AMPLIFIER
dB
dB
① DC INPUT
Connect the power adapter here to power the receiver.
② DC OUTPUT
Connect the power adapter here to power the receiver.
③ ANTENNA INPUT
Antenna input ports for channel A and B.
④ CASCADE OUTPUT
Cascade output port that can connect to extra PAS-225 systems.
Or it can be used as a normal antenna signal output port .
⑤ RF OUTPUT
RF output port for channel A and B to connect to other wireless microphone systems.
Back Panel
Directional Antenna
Front Panel
