PHENYX PRO PAS-225 - Usage Tips; Connecting to Wireless Systems

®
7
Tips
400-950MHZ
LOW NOISE
RE AMPLIFIER
dB
dB

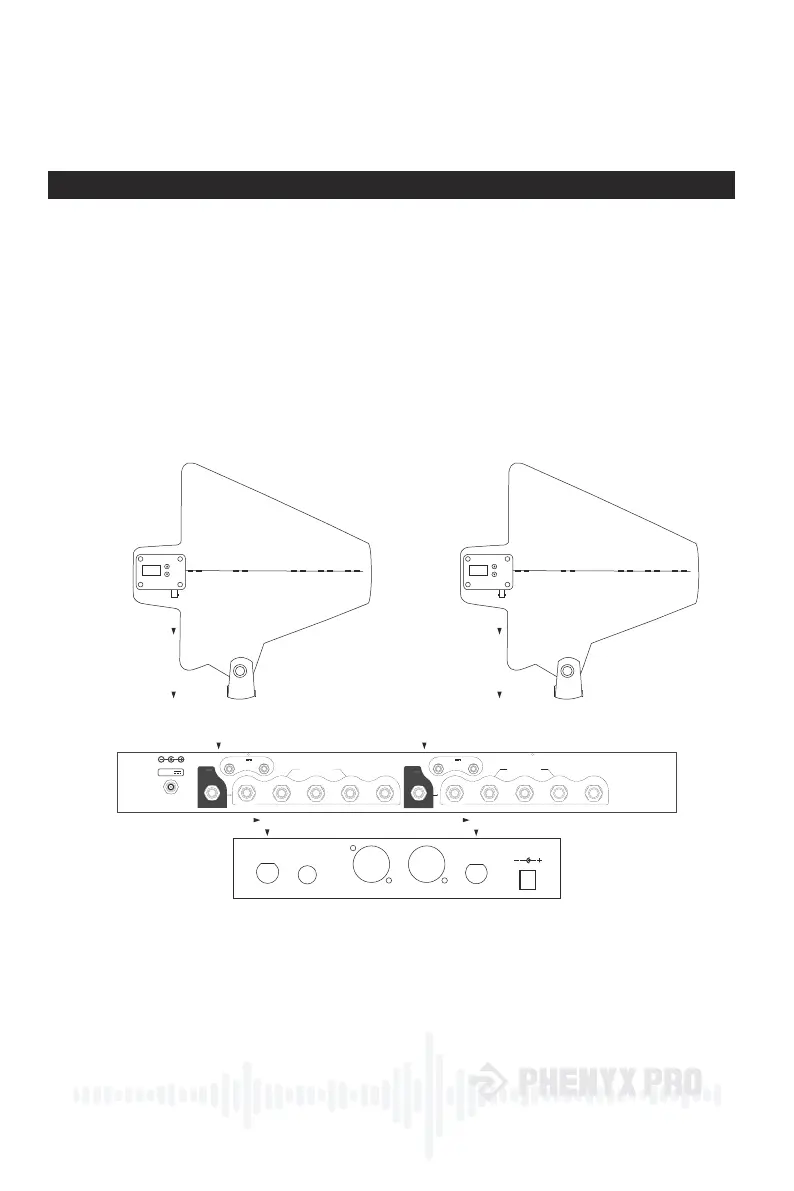

1. How to connect the the antenna system to my wireless system? Can I just use
antenna outputs from one channel?
A: If your wireless system only has one antenna input, then using either antenna
output is fine. If your wireless system has more than one antenna inputs, then it’s
recommended to use antennas output from two channels. Please refer to the gra-
ph below for sample setup with our PTU-71 system.
12V-18V
12V
OUT
150mA
12V
OUT
150mA
DC INPUT
12V
OUT1.1A
MAX
TOTAL
12V
OUT1.1A
MAX
TOTAL
RF OUTPUT B
RF OUTPUT A
CASCADE CASCADE
ANTENNA B IN ANTENNA A IN
5 B B B B B2 134 5 A A A A A2 134
BAL B OUT
UNBALA
OUT
ANT B
ANT A
BAL A OUT
DC 12-15V
350 mA
400-950MHZ
LOW NOISE
RE AMPLIFIER
dB
dB
------------------------------------------------------- -------------------------------------------------------
------
------
----------------- -----------------
----------------
-------------------- --------------------
----------------- ------------------------------
