PHI VILLA AH-FP-30F - Page 5

Model
Unit Overall Dimensions
Cutout Dimensions(W*D*H)
AH-FP-30F
30” x 6.2” x17.7”
26.75”x 6.313”x 17.125”
AH-FP-36F
36” x 6.2” x17.7”
32.75”x 6.313”x 17.125”
AH-FP-40F
40” x 6.2” x17.7”
36.75”x 6.313”x 17.125”
AH-FP-48F
48” x 6.2” x17.7”
44.75”x 6.313”x 17.125”

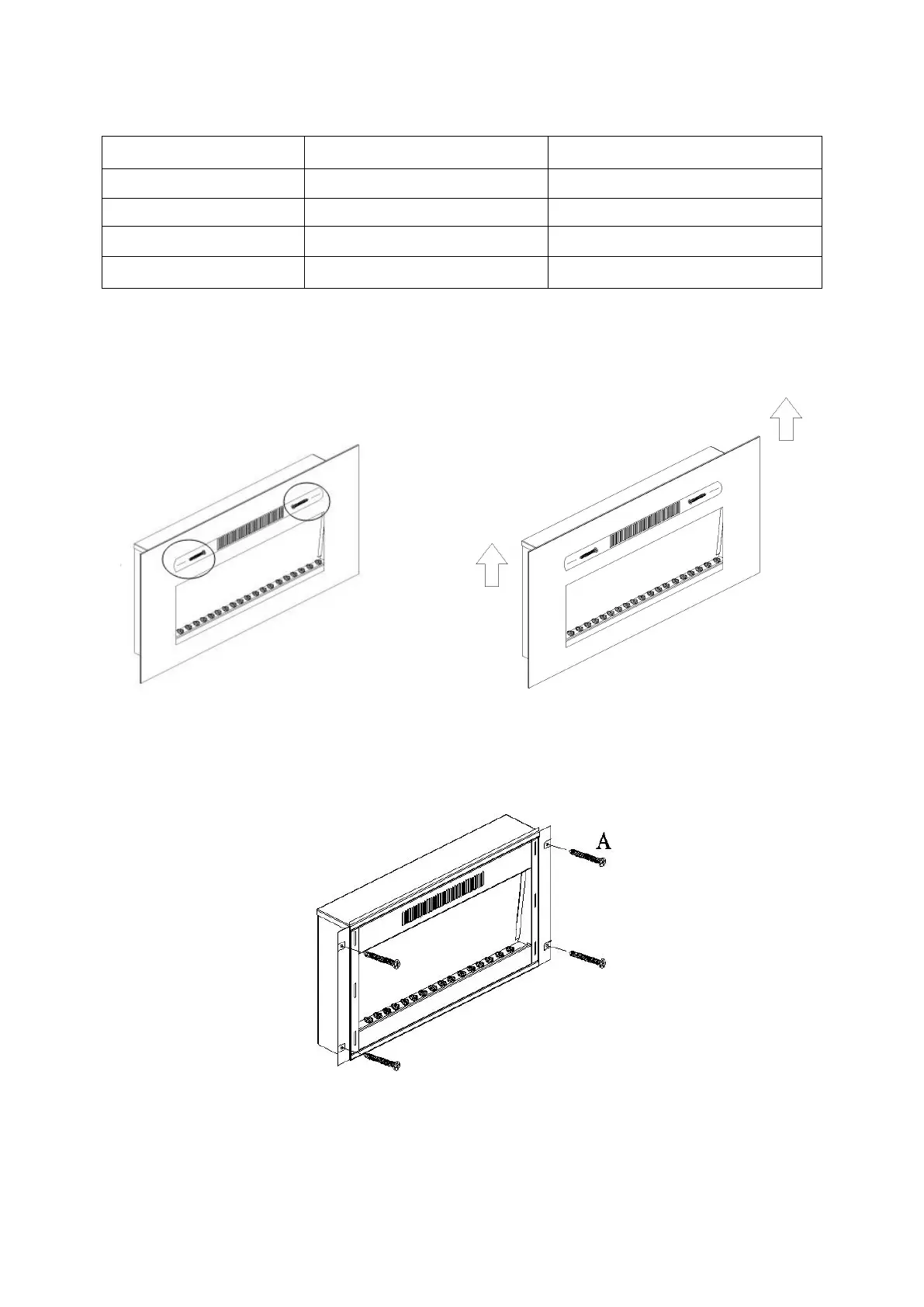

Step 1: (1)Find the two mounting screws and remove them. (2)Remove the front cover
by pulling it upward (See Fig. A(1)and Fig.A(2)).
Fig. A(1) Fig. A(2)
Step 2: Secure the unit to the back wall using the 4 screws (A) as shown in Fig. B.
Fig. B
Step 3：Replace the front cover and secure it with two mounting screws (See Fig. C).
