PHI VILLA AH-FP-30F - Page 7

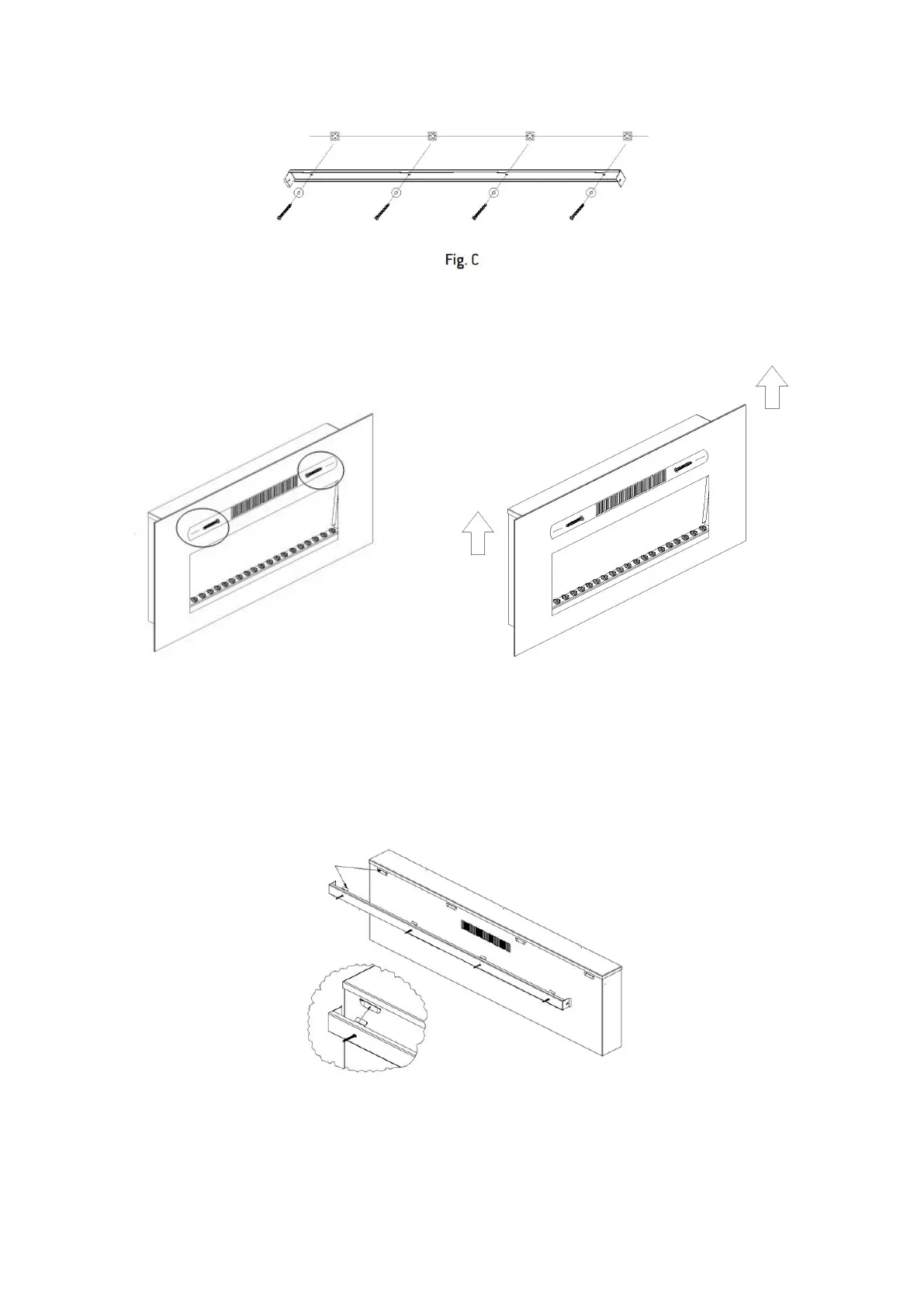

Step 4: (1)Find the two mounting screws and remove them. (2)Remove the front cover
by pulling it upward (See Fig. D(1)and Fig.D(2)).
Fig.D(1) Fig. D(2)
Step 5: Mount the heater on wall using the keyhole slots of the metal bracket at the
back of the heater. See Fig. E.
Make sure that the mounting bracket is completely engaged into the metal bracket at
the back of the heater.
Fig. E
