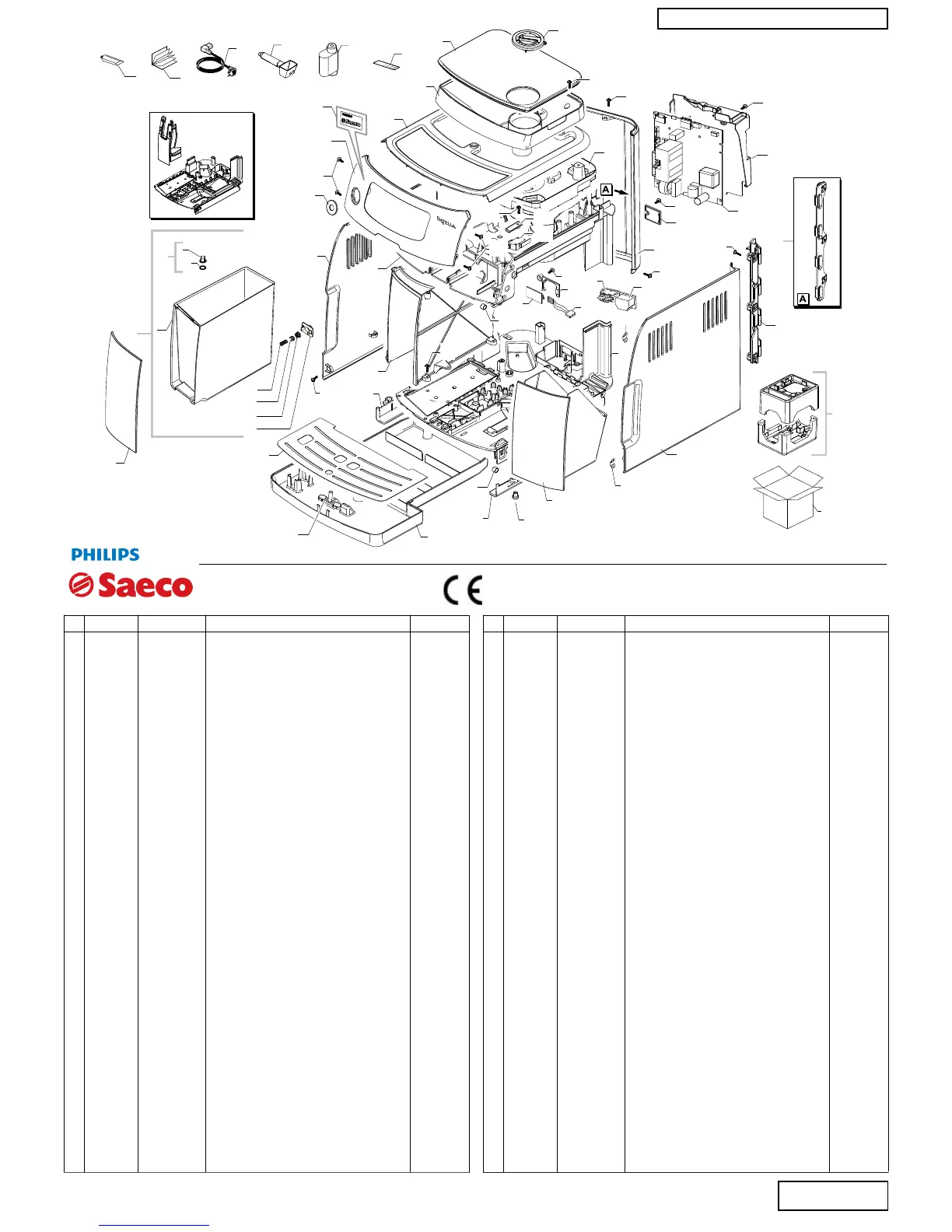

Philips Saeco HD8751 - External; Electronical Components; Front Panel; User Interface

PSA INTELIA FOCUS-CLASS-CLASS METAL
Exp. E74170 Rev.10-09/07/14
HD8751/04-06-11-12-14-15-19-23-41-43-47
HD8751/71-88 - HD8752/05-22-23-25
HD8752/41-49-61
HD8752/83-87-89
Cod.10004055-57-3844-46-882875114100-10003937-3845-4115-4058-59-56
Cod.882875171010-10004101-3936-3861-3935-4232-882875225630
Cod.10003849-882875241020-10003860-882875249020-10003986
Cod.10004102-03-882875287740-10004104
47
53
53
52
27
28
26
23
25
22
24
29
21
20
19
16
14
17
16
46
15
13
12
11
10
9
7
8
45
46
46
38
37
51
35
30
18
34
33
31
32
36
46
46
40
39
1
2
3
4
5
6
48
36
44
43
42
51
41
46
50
51
49
46
46
52
POS
POS
CODE
CODE
DESCRIPTION
DESCRIPTION
NOTE
NOTE
12NC
12NC
TABLE 1a/6
01 11028379 996530070318 PSA KLUBER TRIBOSTAR SIL 2 TUBE 5GR.
02 - 421946009281 MANUAL V2 PSA HD8751 NPR/P GB USA
- 421946009301 MANUAL V2 PSA HD8751 NPR/P FR USA
- 421946009311 MANUAL V2 PSA HD8751 NPR/P ES USA
15002987 996530070364 MANUAL PSA HD8751 NPR/P CHN
- 421946005881 MANUAL V2 PSA HD8752 NPR/H GB USA
- 421946005901 MANUAL V2 PSA HD8752 NPR/H FR USA
- 421946005911 MANUAL V2 PSA HD8752 NPR/H ES USA
15002989 996530071975 MANUAL PSA HD8752 NPR/H CHN
15003074 996530072425 MANUAL PSA HD8751 NPR/P PT/BRA
03 - 421946001591 BLK POWER CABLE SCHUKO L=800
183940650 996530025872 BLACK POWER CABLE AUSTRALIA L=1200
183930650 996530025858 POWER CABLE CH BLACK 3X1 H05VV-F L=1200
11004247 996530002167 BLACK POWER CABLE RVV 3X1 CHINA L=1200
11001985 996530001089 BLACK POWER CABLE KOREA L=1200
183970350 996530025882 BLACK POWER CABLE UK L=1200
183921950 996530025843 POWER CABLE SJT3 USA BLACK UL L=1200
11004246 996530002166 BLACK POWER CABLE TAIWAN HVCTF L=1200
17800330 996530069926 BLACK POWER CABLE BRAZIL L=1200 BRA 120V
17800019 996530009627 BLACK POWER CABLE BRAZIL L=1200 BRA 230V
04 421944033301 BLK ABS COFFEE MEASURE SMART
05 21002051 996530071783 ACC PSA MAVEA WATER FILTER 1UNIT USA-BRA
06 0301.961 996530039604 STICKER FOR WATER HARDNESS TEST
07 17001245 996530068681 NAT/GREY BEAN COFFEE CONTAIN.LID NPR/H-T .
FOR HD8752/05-22-23-25-41-49-61-83-87-89
17001470 996530068715 NAT/GREY BEAN COFFEE CONTAINER LID NPR/P
FOR HD8751/04-06-11-12-14-15-19-23-41-43-47-71-88
08 17001244 996530068685 NAT/GREY GROUND COFFEE HOPPER LID NPR
09 17001234 996530068743 NAT/GREY BEAN COFFEE CONTAINER NPR
10 20007023 996530068677 SPARES KIT SS/BLK UPPER CASING COV.NPR/H
UP TO S/N . TW901239414583
FOR HD8752/05-22-23-25-41-49-61-83-87-89
11030729 996530072896 BA/SS-MATT/BLK UPP.CASING COV.NPR/H ASSY
FROM S/N . TW901239414584
FOR HD8752/05-22-23-41-49-61
11030769 996530072906 SB/SS-MATT/BLK UPP.CASING COV.NPR/H ASSY
FROM S/N . TW901239414584
FOR HD8752/25-83-87-89
17001287 996530068703 BLACK UPPER CASING COVER NPR/P
UP TO S/N . TW901239414583
PER HD8751/04-06-11-12-15-19-23-41-43-47-71-88
10 421941301461 M/BLK UPPER CASING COVER V2 NPR/B-P
FROM S/N . TW901239414584
FOR HD8751/04-06-11-12-15-19-23-41-43-47-71-88
421941301471 G/ANT.UPPER CASING COVER V2 NPR/B-P
FOR HD8751/71
11 11026478 996530068756 SILVER FRONT PANEL S/SCR.NPR/H-P
UP TO S/N . TW901239414583
11030526 996530072905 SILVER FRONT PANEL S/SCR.NPR/H-P
FROM S/N . TW901239414584
FOR HD8752/05-22-23-41-49
11026295 996530068754 BLACK FRONT PANEL S/SCR.NPR/H-P
UP TO S/N .TW901239414583
11030590 996530072885 MATT/BLACK FRONT PANEL S/SCR.NPR/H-P
FROM S/N .TW901239414584 FOR HD8751/04-06
HD8751/11-12-14-15-19-23-41-43-47-88-HD8752/61
11030230 996530072908 SS FRONT PANEL V2 S/SCR.NPR/HM ASSY.
FOR HD8752/25-35-83-87-89
421946006771 G/ANT.FRONT PANEL S/SC.SAE INTEL.NPR/H-P
FOR HD8751/71
12 11026290 996530068757 CHROM.FRONT PANEL CAP NPR/H-P
FOR HD8751/71-HD8752/05-22-23-25-41-49
HD8752/61-83-87-89
11026768 996530068759 BLACK FRONT PANEL CAP NPR/H-P
UP TO S/N . TW901239414583
11030533 996530072903 MATT/BLACK FRONT PANEL CAP NPR/H-P
FROM S/N . TW901239414584
FOR HD8751/04-06-11-12-14-15-19-23-41-43-47-88
13 17001299 996530068729 BLACK LEFT SIDE CASING NPR
14 11030130 996530072415 BLK COFFEE GRINDER SUPP.PLATE V2 NPR/H-P
15 17001114 996530068752 BLACK CASING BOTTOM INSERT NPR
FOR HD8751/04-06-11-12-14-15-19-23-41-43-47-71
HD8752/25-61-83-87-89
15 11027799 996530068712 GREYCASING BOTTOM INSERT NPR
FOR HD8752/05-08-22-23-41-49
16 17001110 996530068723 BLACK DRIP TRAY GUIDE NPR
17 147622800 996530016875 TRANSPARENT SILICONE FOOT
UP TO S/N TW901420291211
421324705256 FOOT
FROM S/N TW901420291212
