Philips 107E7 - Page 18

17” CDT Color Monitor 107E7
18

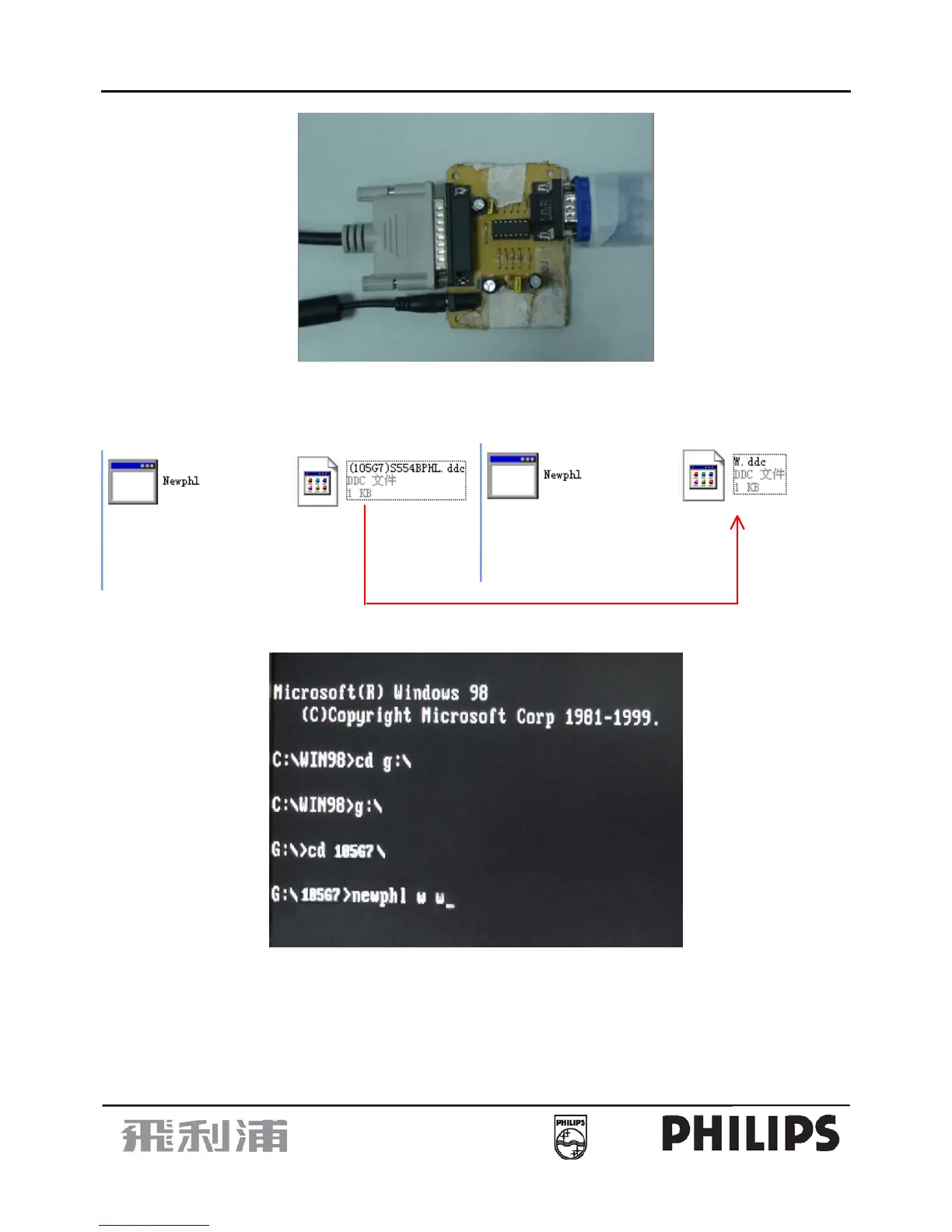

Fig 1
Step 1: Put the “Newphl.exe” and “(105G7) S554BPHL.ddc” to a special folder, such as 105G7. And rename the
“(105G7) S554BPHL.ddc” as “W.ddc”
Step 2: Access to MS-DOS program, Input the command as shown fig 2
Fig 2
Printer connector
DC 12V input
D-SUB connector
