After returning to MAIN CONTROLS . . .
...to continue to ROTATE IMAGE, start with step 5 under ROTATE IMAGE and follow
the directions.
...to exit completely, press the button twice.
...to adjust only the PARALLELOGRAM, follow steps 1 - 4 above, then press the
button, and follow steps 7 - 9.
ROTATE IMAGE
(Not available in all models)
ROTATE IMAGE under ADJUST SHAPE allows you to adjust one of the five preset options. These two
options are PINCUSHION and BALANCED pincushion. Note: use this feature only when the picture is not
square.

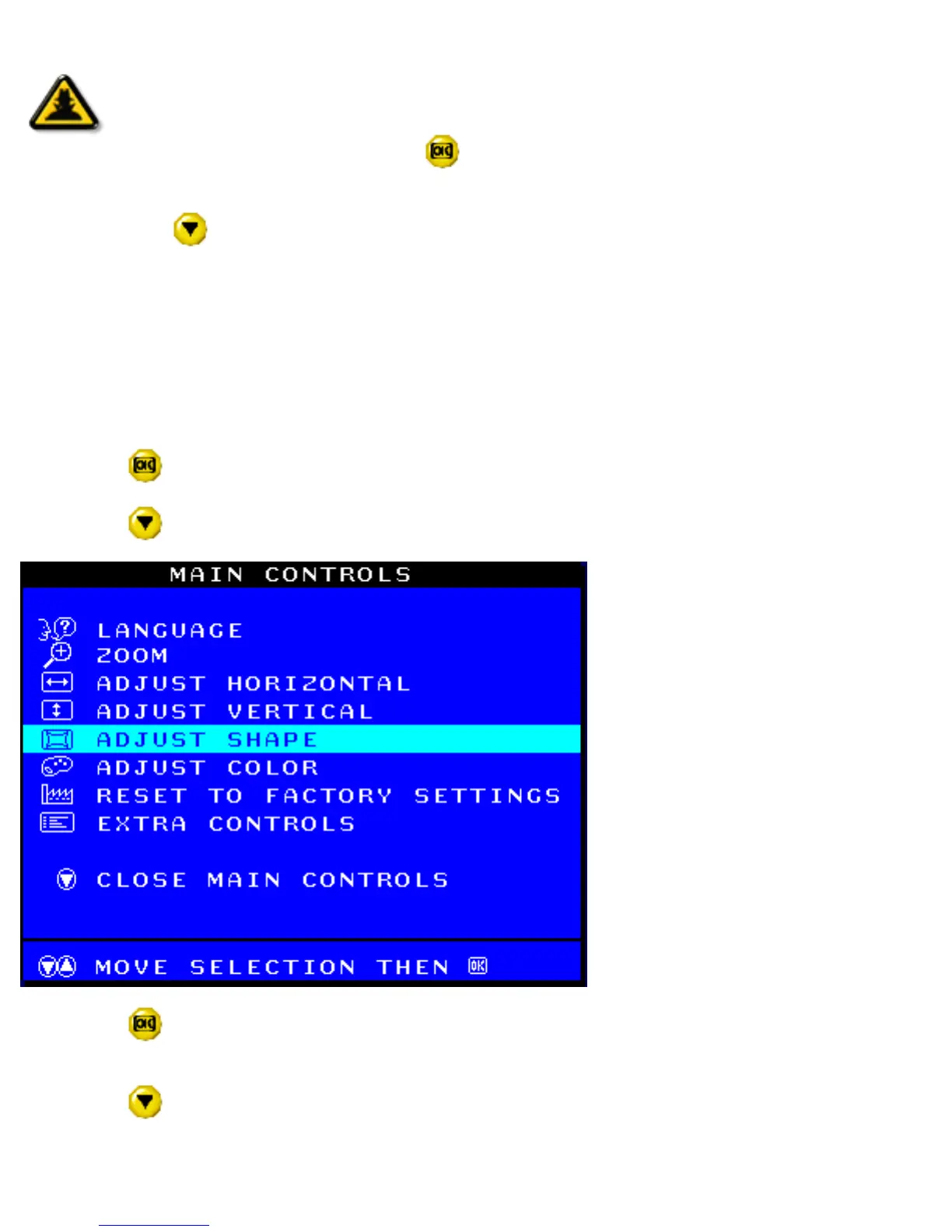

1) Press the
button on the monitor. The MAIN CONTROLS window appears.
2) Press the
button until ADJUST SHAPE is highlighted.
3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be
highlighted.
4) Press the
arrow until ROTATE IMAGE is highlighted.
