Technical Specifications, Connections and Chassis Overview
EN 2 TE3.2E CA1.
1. Technical Specifications, Connections and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connections / Control Facilities
1.3 Chassis Overview
1.1 Technical Specifications
1.1.1 Reception
Tuning system : PLL
Colour systems : PAL B/G, D/K, I
: SECAM B/G, L/L'
Sound systems 14” : Mono
Sound systems 21” : Mono
: Nicam B/G, D/K, I, L
A/V connections : NTSC 3.58
: NTSC 4.43
Channel selections : 100 channels
: UVSH
IF frequency : Systems B/G, D/K, L,
I: 38.9 MHz
: System L': 33.95 MHz
Aerial input : 75 Ω, Coax
1.1.2 Miscellaneous
Audio output (RMS) 14” : 1x 1 W Mono
Audio output (RMS) 21” : 1x 4W Mono
: 2x 3 W Mono
Mains voltage : 220 - 240 V
Mains frequency : 50 Hz
Ambient temperature : + 5 to + 45 deg. C
Maximum humidity : 90 %
Power consumption : 50 W (10 %)
Standby Power consumption : < 2 W
1.2 Connections / Control Facilities
1.2.1 Front Connections and Front Control
Figure 1-1 Front Control without AV Input (xxPT1501)
Figure 1-2 Front Control with AV Input (xxPT1521)
Audio / Video In (Only for 14PT1521)
1 - Video CVBS (1 V
pp
/ 75 Ω) jq
2 - Audio (MONO) (0.5 V
rms
/ 10 k Ω) jq
3 - Headphone 3.5 mm (8 - 600 Ω/ <100 mW) rt
1.2.2 Rear Connections 14” & 21”

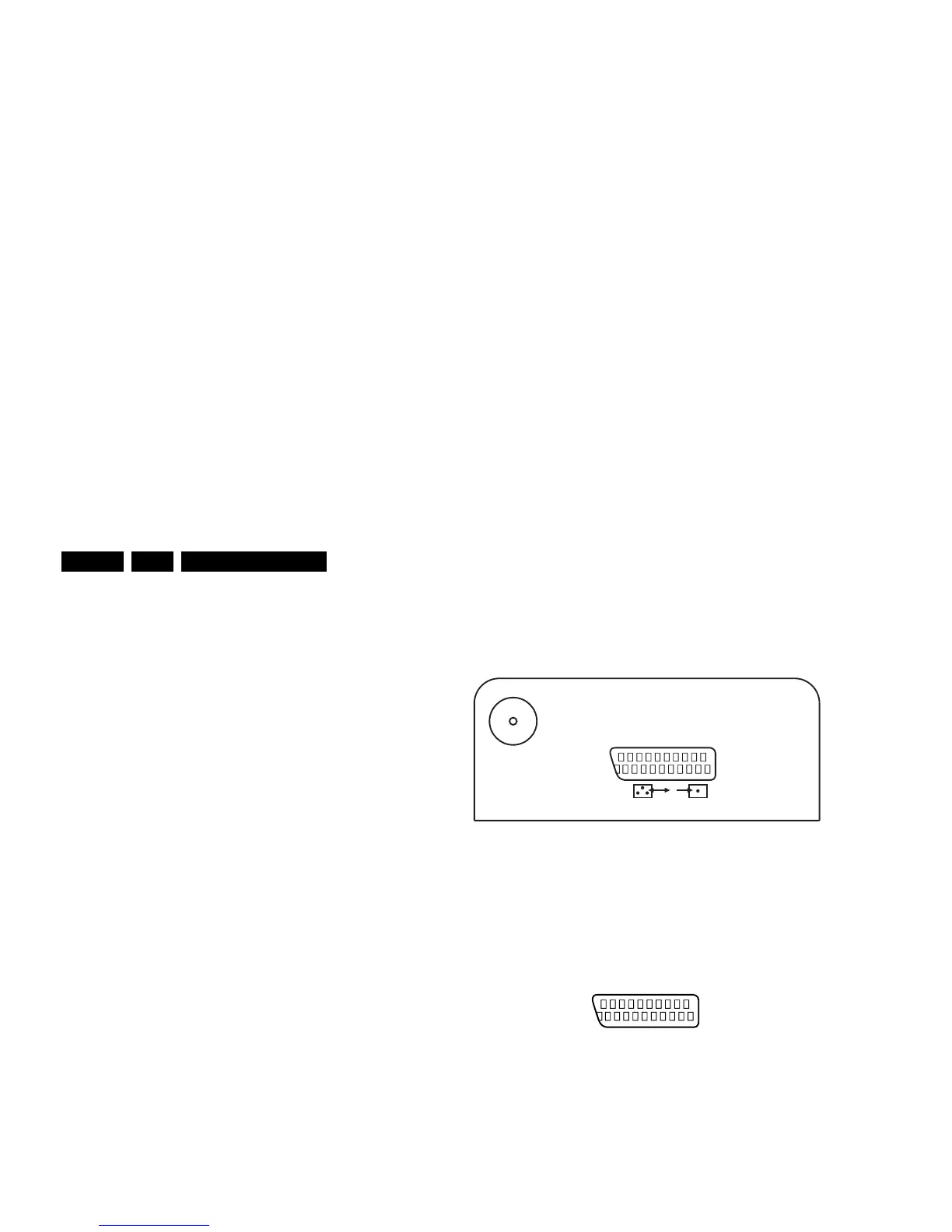

Figure 1-3 Rear Connections
TV Aerial In
Aerial input : 75 Ω, Coax (IEC-
type)
External 1: RGB in + CVBS in/out
Figure 1-4 SCART connector
1 - Audio R (0.5 V
rms
1 kΩ) k
2 - Audio R (0.5 V
rms
10 kΩ) j
3 - Audio L (0.5 V
rms
1 kΩ) k
4 - GND H
5 - GND H
6 - Audio L (0.5 V
rms
10 kΩ) j
7 - Blue (0.7 Vpp / 75 Ω) j
8 - CVBS-status 0 - 2.0 V: INT
4.5 - 12 V: EXT 4:3
9 - GND H
10 -
11 - Green (0.7 V
pp
/ 75 Ω) j
12 -
13 - GND H
14 - GND H
15 - Red (0.7 V
PP
/ 75 Ω) j
16 - RGB-status 0 - 0.4 V: INT
1 - 3 V: EXT / 75 Ω
17 - GND H
18 - GND H
19 - CVBS (1 V
pp
/ 75 Ω) k
20 - CVBS (1 V
pp
/ 75 Ω) j
21 - Earth GND vj
SK1 RED
IR
HEADPHONE
- VOLUME +
- PROGRAM +
G_16010_013.eps
130206
SK1
RED
IR
- VOLUME + AUDIO
- PROGRAM +HEADPHONE
VIDEO
G_16010_014.eps
130206
F_15850_002.eps
160805
75 Ohm
EXT1
21
20
1
2
E_06532_001.eps
050404
