This section provides information on the connectivity available for the LCD Television set.
20” LCD TVs

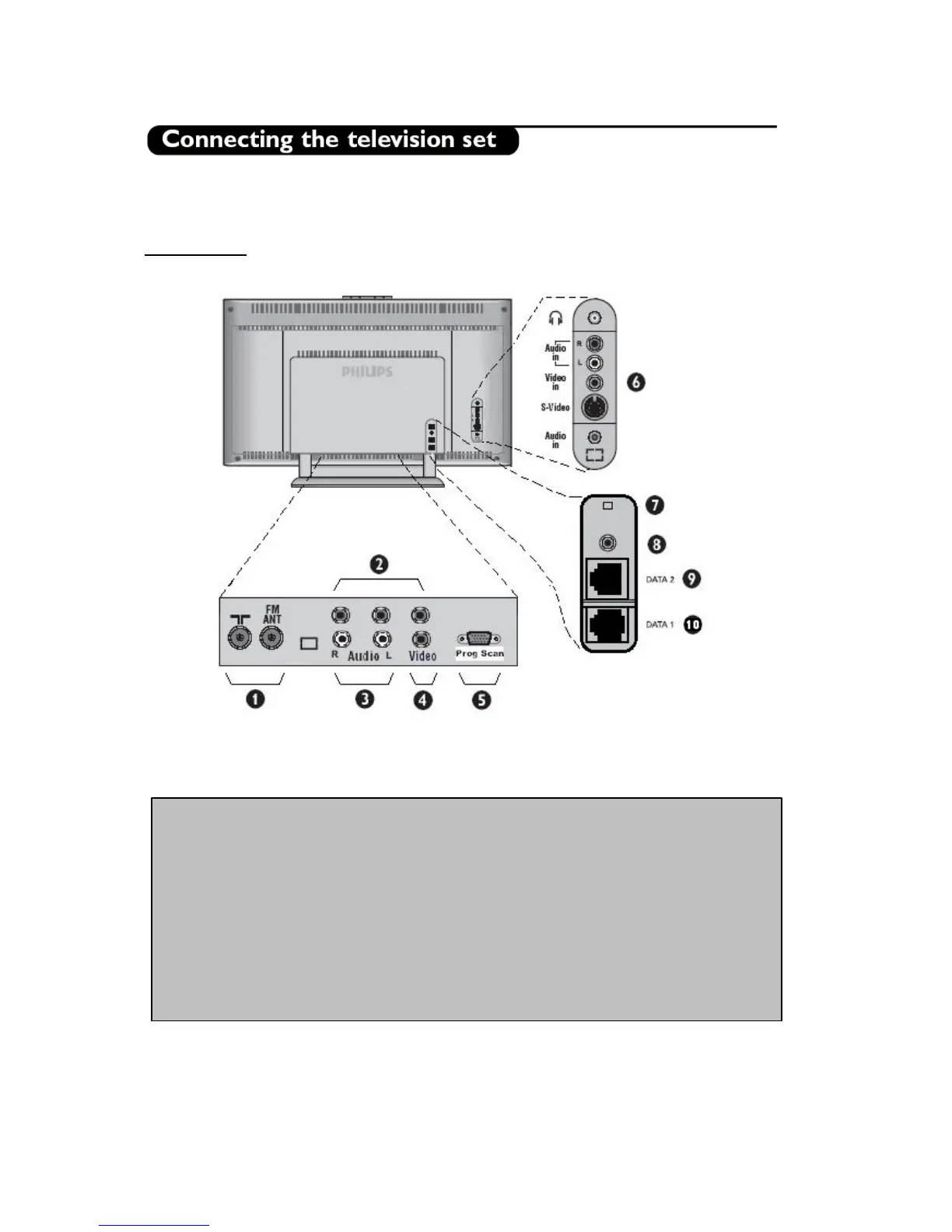

Connectors on the 20” LCD TV
1. TV and Radio antenna sockets
2. Component Video Inputs (CVI) connectors – Y, Pb, Pr, 1fH (480i)
3. Audio-In connectors (AV1)
4. Video-In connector (AV1)
5. Progressive Scan Input for connecting Y, Pb, Pr, 2fH (480p)
6. Side IO Connectors (AV2) – Headphones, Audio-In, Video-In, S-Video, and PC-Audio In
7. Internal Speaker Switch – switch to disable/enable internal speakers
8. Pendant Control jack
9. Data 2 (RJ45) jack – for interactive connectivity purposes, not currently used
10. Data 1 (RJ12) jack – for interactive connectivity purposes, SmartPort
