Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 32 TC8.1A CA9.
9.3.8 IC801 (TEA1506P)
IC801 is a switched mode power supply control IC.
Its block diagram and pinning are as follows:

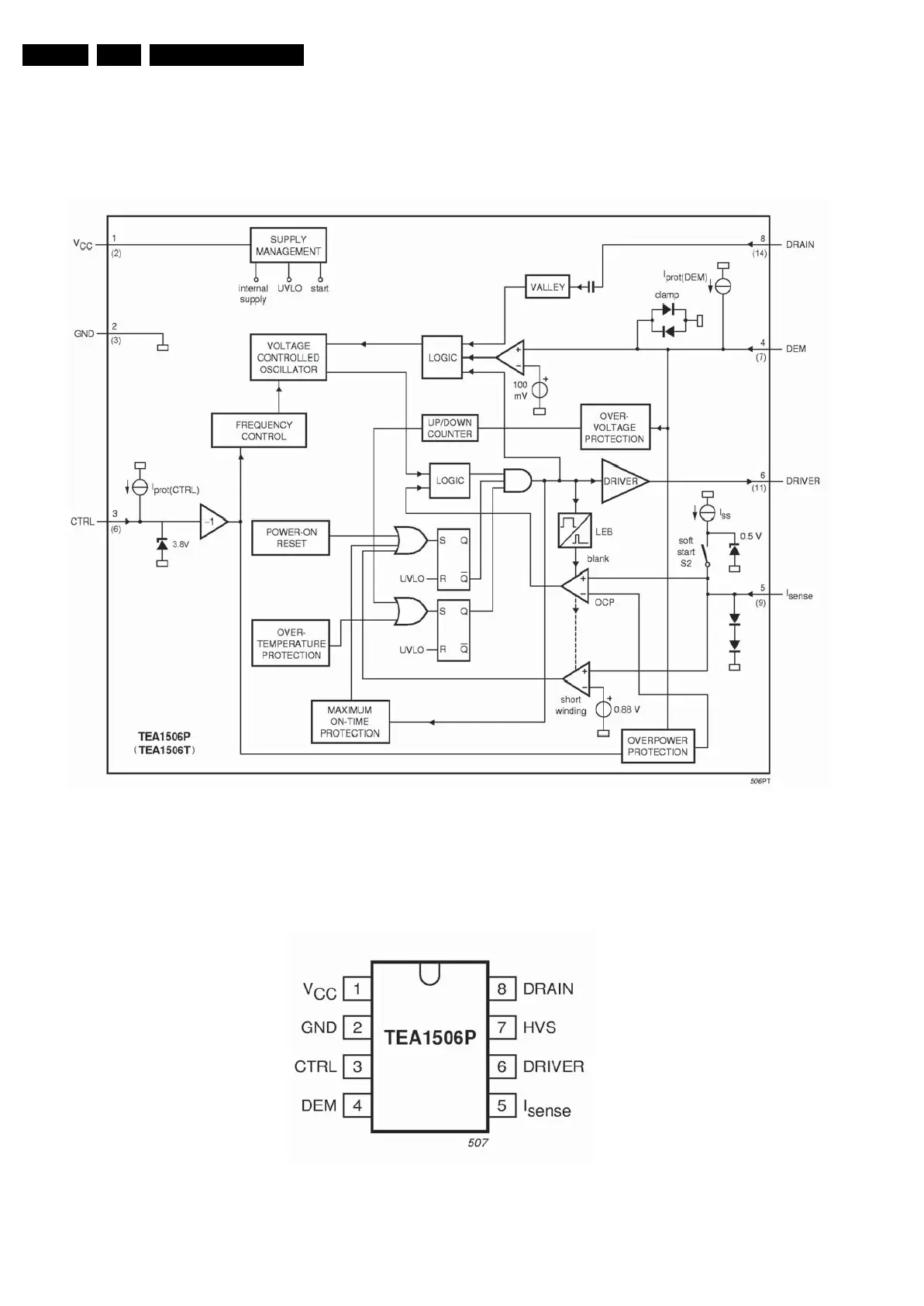

Figure 9-7 Block diagram of IC801 (TEA1506P)
Block Diagram
H_17130_032.eps
240407
Pin Configuration
