Product Information

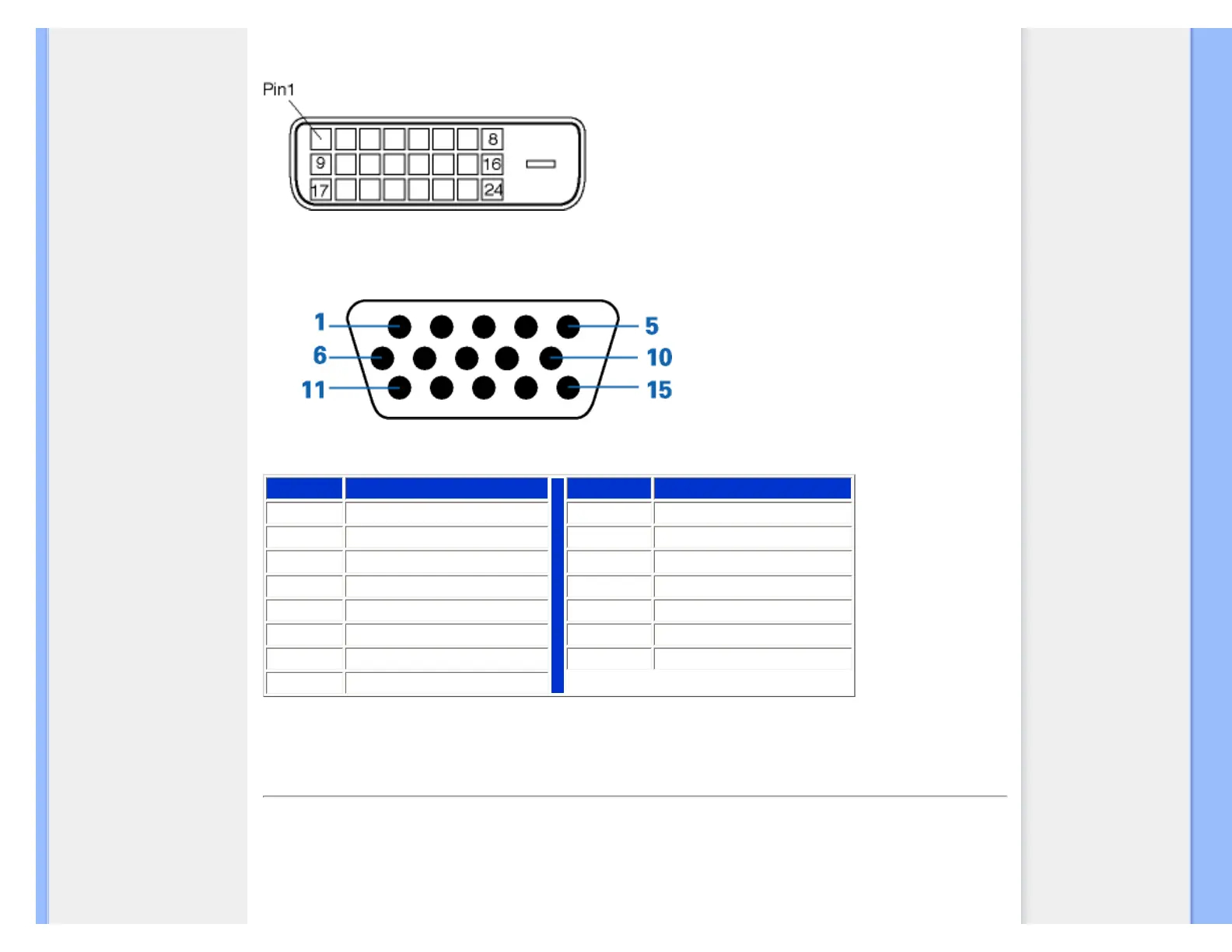

2.The 15-pin D-sub connector (male) of the signal cable:
Pin No.
Assignment
Pin No.
Assignment
1
Red video input
9
DDC + 5 V
2
Green video input/SOG
10
Logic ground
3
Blue video input
11
Ground
4
Sense (GND)
12
Serial data line (SDA)
5
Cable detect (GND)
13
H. Sync / H+V. Sync
6
Red video ground
14
V. Sync
7
Green video ground
15
Data clock line (SCL)
8
Blue video ground
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
