Philips 22DC594/35X - Page 16

22DC594/35X zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA

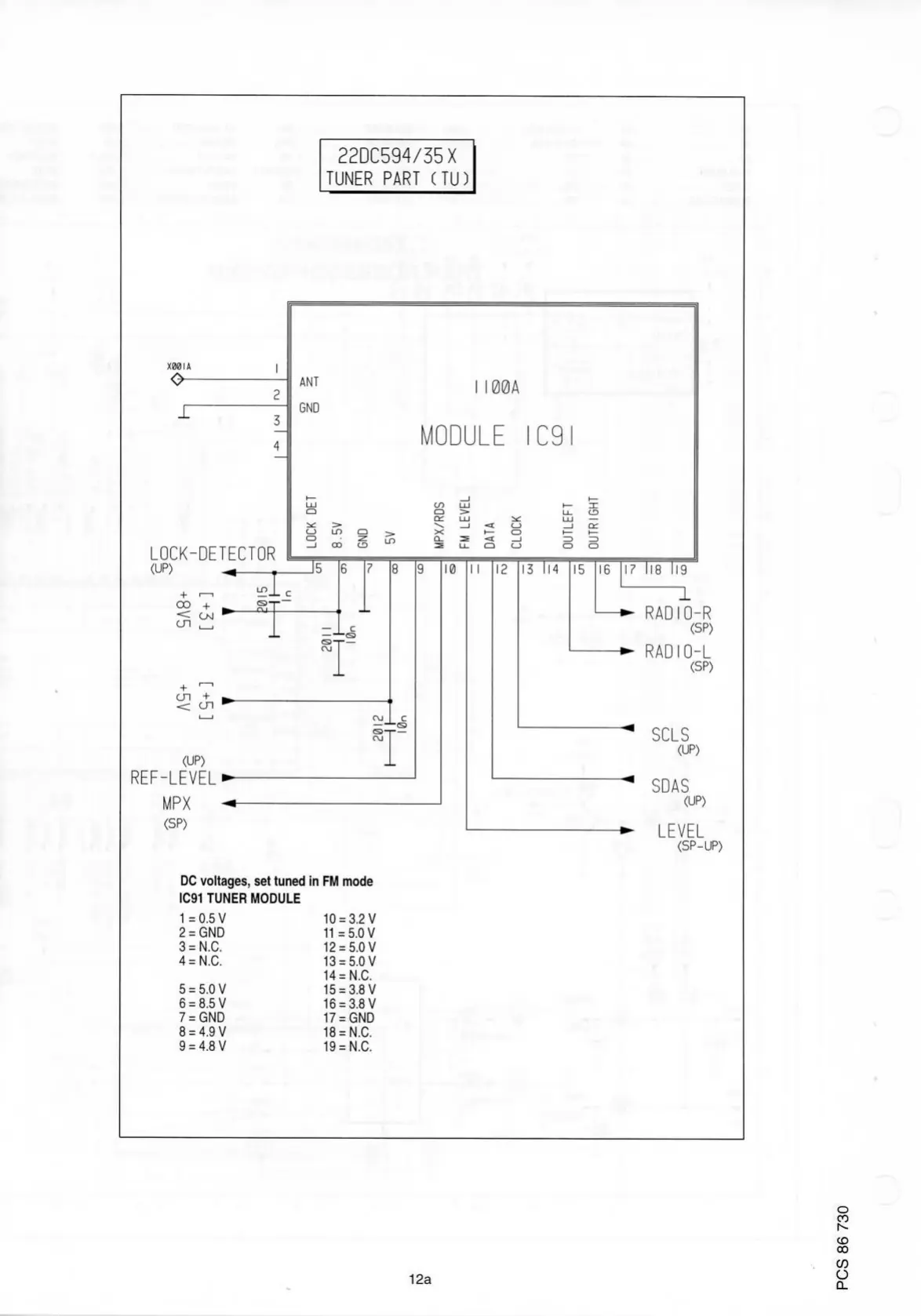

TUNER PART
(TU)
X00IA
X"
LOCK-DETECTOR zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA
( UP) ^
ANT
GND
I00A
MODULE IC9
CJ LD Q
35"
00
+
cn +
< cn
— c
— -^o
o-r—
C\
cs-r-
CM
( UP)
REF-LEVEL
MPX
( SP)
12 | I 3 Il4 | I 5 | I 6 | I 7 Il8 Il9
1
RAD IO-R
( SP)
RADIO-L
( SP)
SCLS
( UP)
SDAS
( UP)
LEVEL
( SP- UP)
DC voltages, set tuned In FM mode
IC91 TUNER MODULE
1 =0.5V
2 = GND
3 = N.C.
4 = N.C.
5 = 5.0V
6 = 8.5V
7 = GND
8 = 4.9V
9 = 4.8V
10 = 3.2 V
11 =5.0 V
12 = 5.0 V
13 = 5.0 V
14 = N.C.
15 = 3.8 V
16 = 3.8 V
17
= GND
18 = N.G.
19 = N.C.
12a
