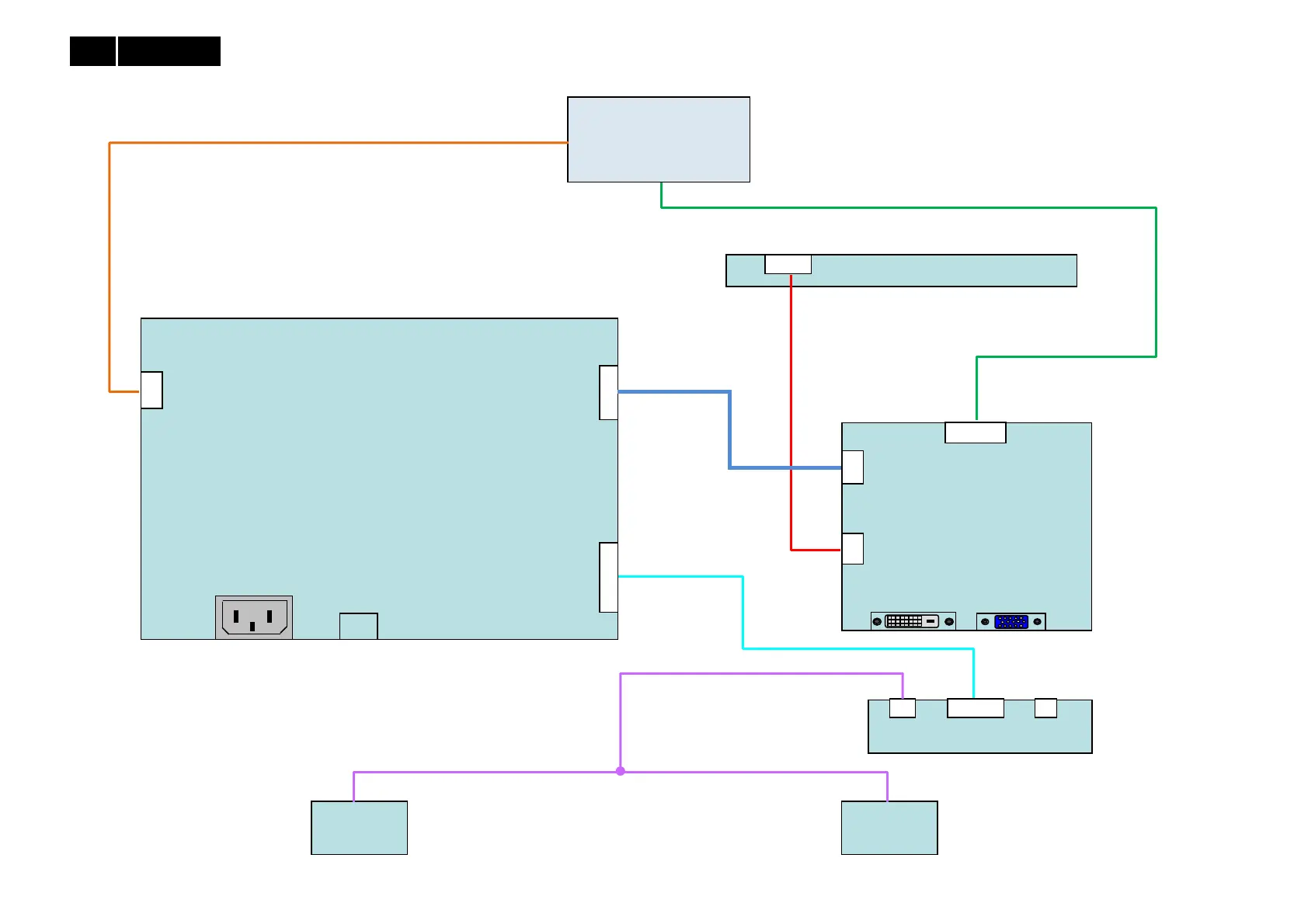

Meridian 3
246V5LAB
Panel
Key Board
CN001
6
1
Power Board
CN902
CN802
6
1
30
Scaler Board
CN701
1
9
1
CN404
CN102
CN101
1
7
CN408
1
9
CN683
1
41
9
CN681
CN684
12
1
CN602
CN901
A
UDIO
CN601
SPK SPK
Head Phone Jack Board
