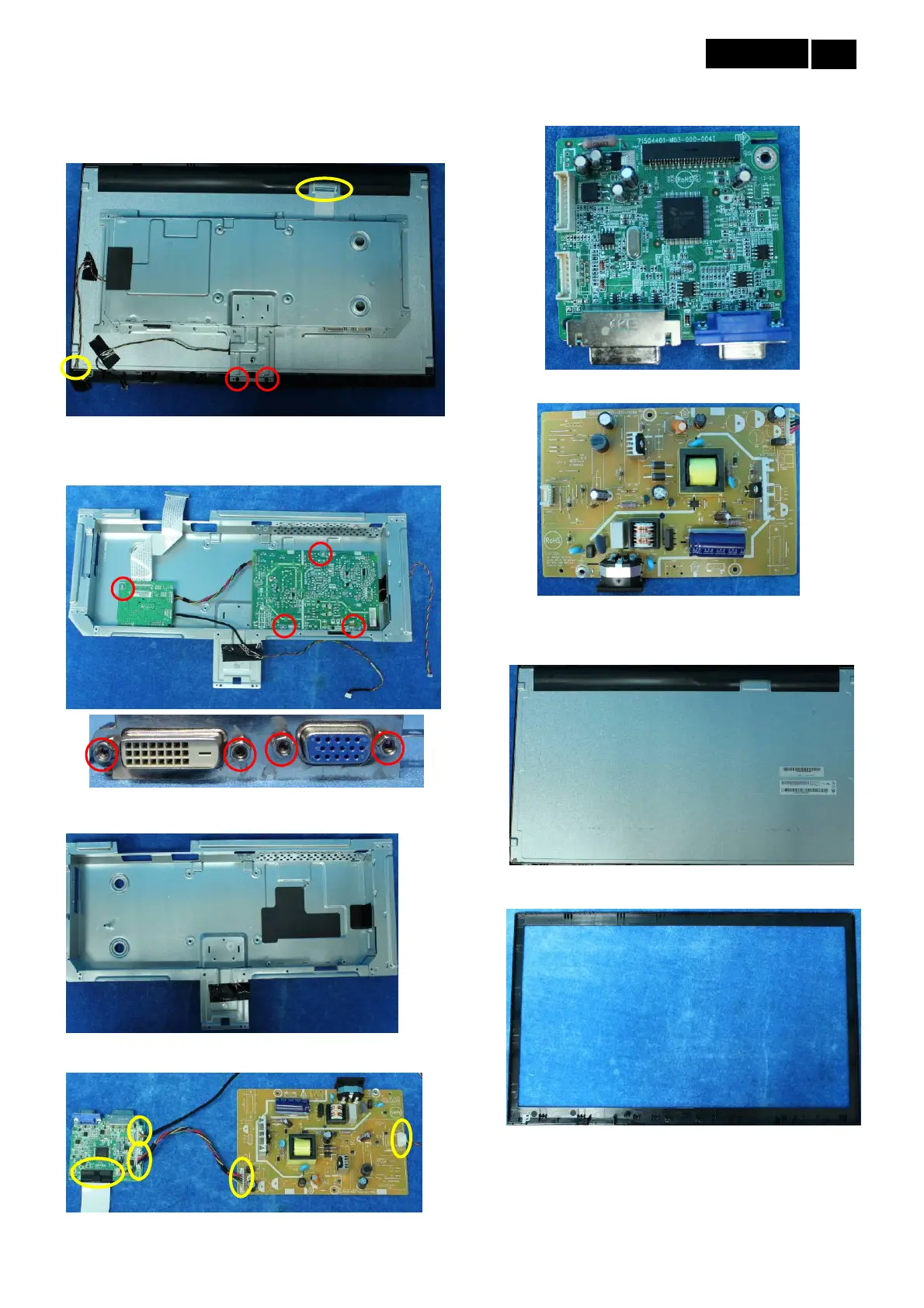

Step 3: Remove the boards.
1. Unplug the connectors and remove the screws to
remove the mainframe.
2. Remove the screws to separate the mainframe with
the scalar board and the power board.
The mainframe
3. Unplug the connectors.
The scalar board.
The power board
Step 4: The panel and the bezel.
The panel
The bezel
