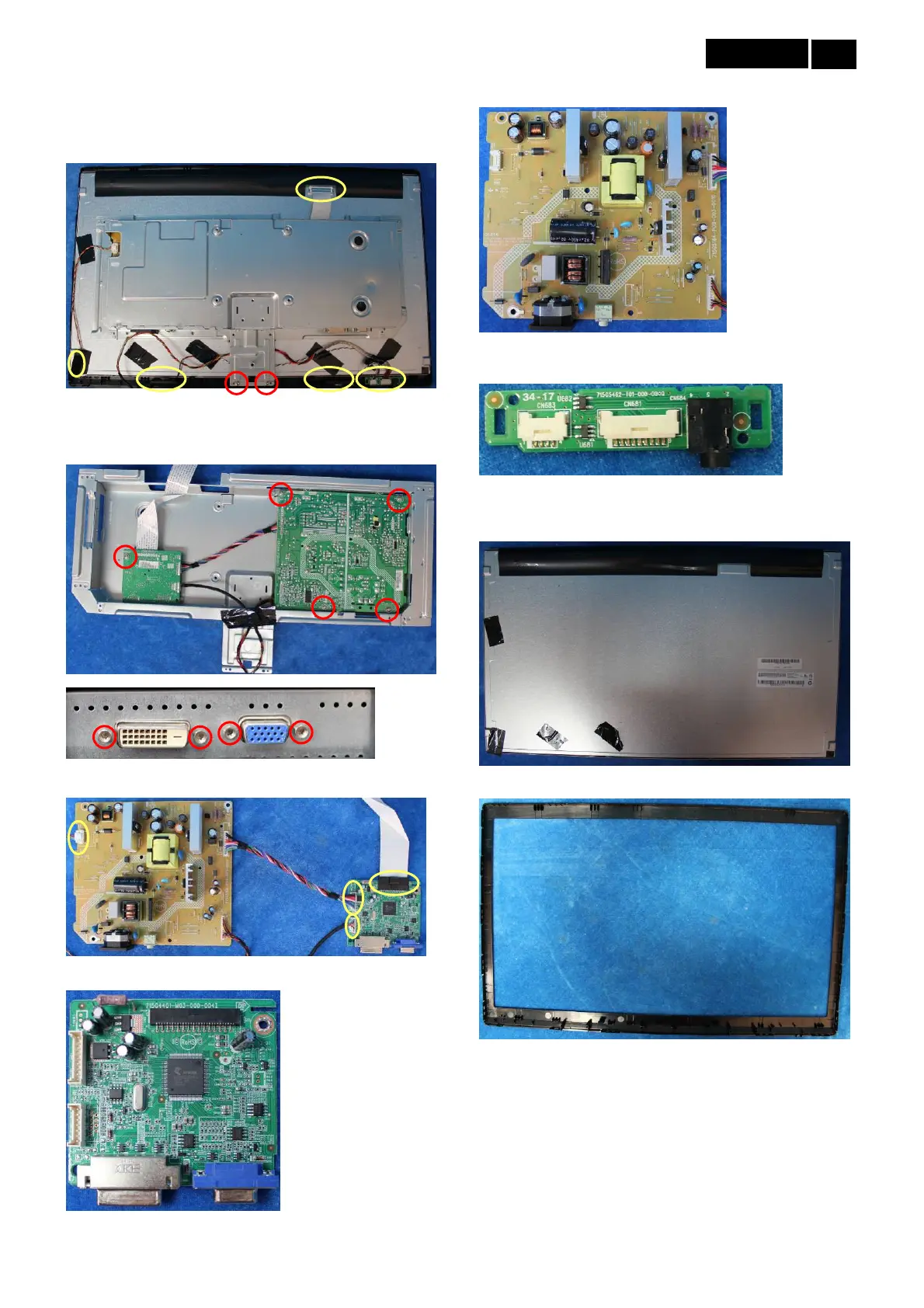

Step 3: Remove the boards and speakers.
1. Unplug the connectors and remove the screws to
remove the mainframe and remove the speakers.
2. Remove the screws to separate the mainframe with
the scalar board and the power board.
3. Unplug the connectors.
The Scaler Board
The Power Board
The Head Phone Jack Board
Step 4: The panel and the bezel.
The Panel
The Bezel
To Next Page
