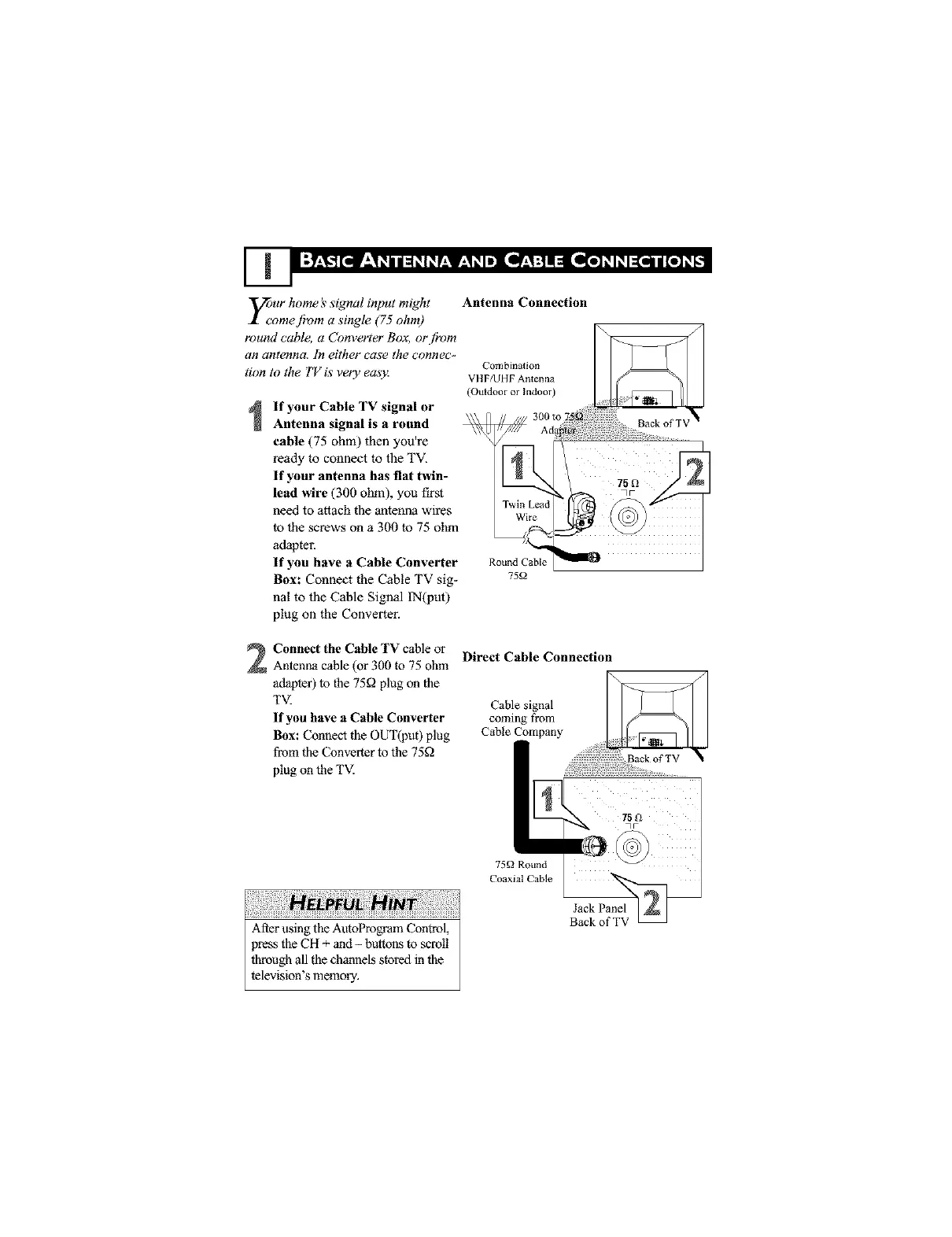

_ur home k signal input might Antenna Connection
ome/h_m a single (75 ohm)
round cable, a Com,erter Box, orjh_m
an antenna. ]n either case the connec_
tion to the TV is very ea_2_
If your Cable TV signal or
Antenna signal is a round
cable (75 ohm) then you're
ready to connect to the TV,
If your antenna has flat twin-
lead wire (300 ohm), you first
need to attach the antenna wires
to the screws on a 300 to 75 ohm
adaptel_
If you have a Cable Converter
Box: Connect the Cable TV sig-
nal to the Cable Signal IN(put)
plug on the Converter.
Combination
VHF/UHF Antenna
(Outdoor or Indoor)
Round Cable
75_
Connect the Cable TV cable or
Antenna cable (or 300 to 75 ohm
3dapter) to the 75f2 plug on the
TV.
If you have a Cable Converter
Box: Connect the OUT(put) plug
from the Converter to the 75ff2
plug on the TV.
Direct Cable Connection
Cable signal
coming from
Cable Company
75_ Round
Coaxial Cable
Jack Panel
Back of TV
