Connecting peripheral equipment
VCR
VCD

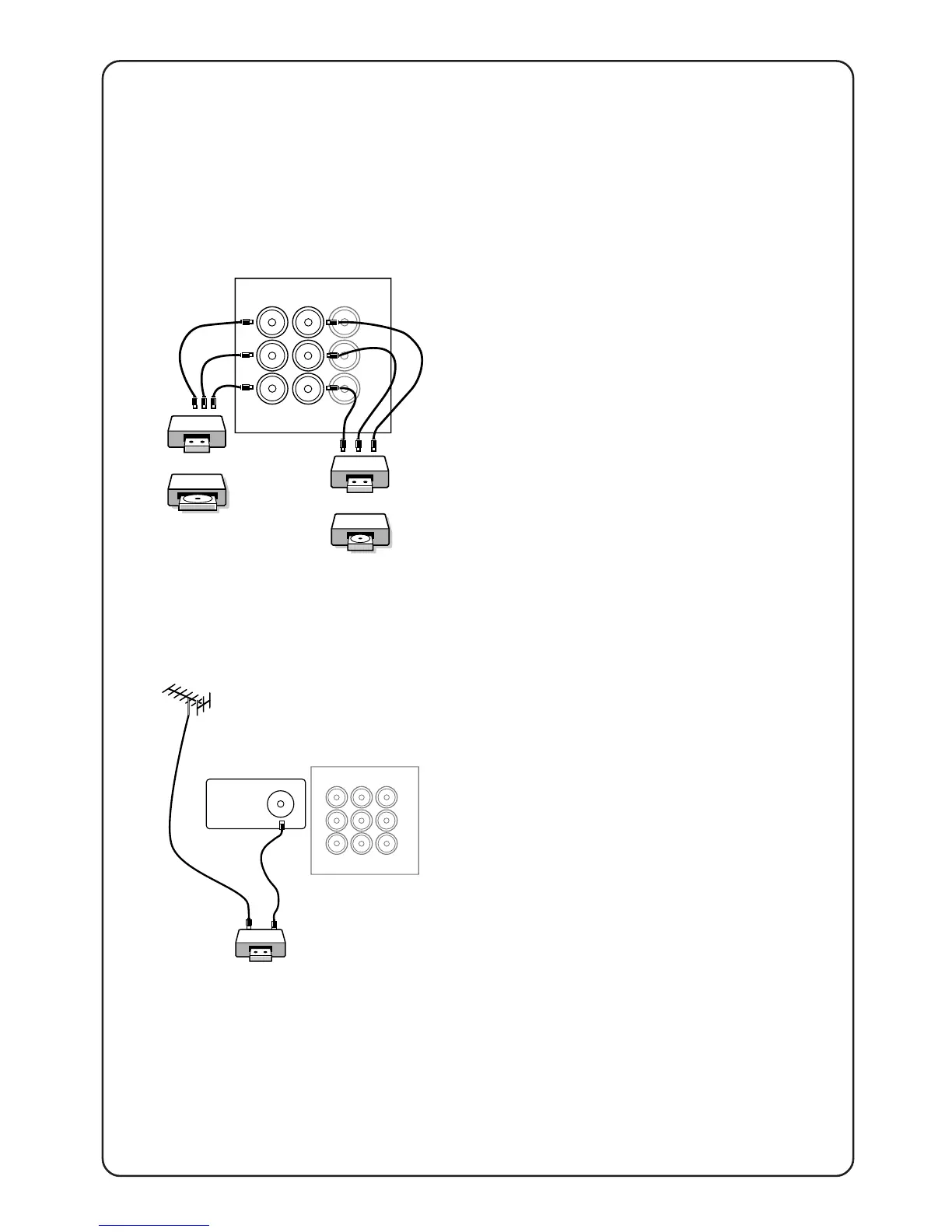

1. Connect to AV sockets
• connect the corresponding sockets of
the equipment to that of the TV.
• to view the playback, select a channel
named AV1 (if connection is made to
sockets at VIDEO 1 in) or AV2 (if
connection is made to sockets at
VIDEO 2 in).
Note : If you have connected a computer
game set to VIDEO 1 in, select a channel
named GAME1 to playback. If your
connection is made to VIDEO 2 in, then
select GAME2 to playback.
2. Connect to aerial socket
(only for VCR)
The playback on your VCR is considered a
TV channel by your TV if you connect via
the aerial socket. You must tune in to
your VCR’s test signal and assign the
channel number 0 to it. Refer to your
VCR’s instruction manual for more
details.
• connect the RF cable to the VCR’s “RF
in” and connect the “RF out” of the VCR
to the aerial socket of the TV.
• select channel 0 and tune in to to your
VCR’s signal.
• to view the playback, select channel 0.
VCR
Laser disc
player
VIDEO 2
in
MONITOR
out
VIDEO 1
in
AUDIO
VIDEO
L
R
OR
g
Ω75
VIDEO 2
in
MONITOR
out
VIDEO 1
in
AUDIO
VIDEO
L
R
OR
Equipment such as VCR, Laser disc player, VCD etc. could be connected to
the video and audio (AV) sockets at the back of the TV. Switch off the TV and
equipment before making any connection.
Connection for playback
