Philips 29PT5026C/79 - Audio;Video Playback Connections; Connecting DVD Component Video Input

AV sockets on rear of TV
Back of DVD
DVD (with “Y” , “Pb” and “Pr”
and Output sockets)
You can view the playback of DVD discs by using the COMPONENT VIDEO INPUT (CVI)
sockets on the rear of the TV.

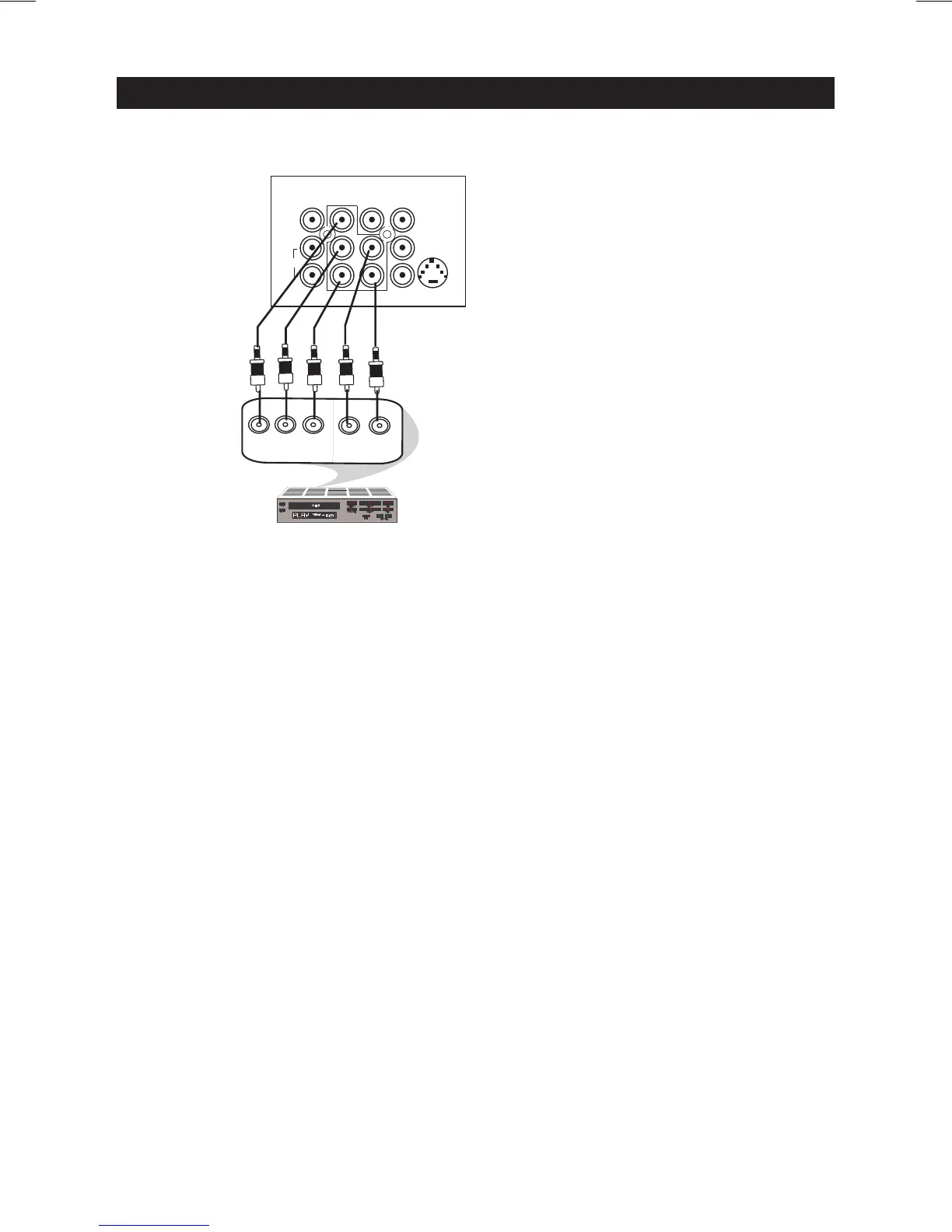

– Connect the CVI cables from the “Y”, “Pb” and “Pr” INPUT of the TV to the “Y”, “Pb”and
“Pr” OUTPUT of the DVD to view playback of DVD discs.
