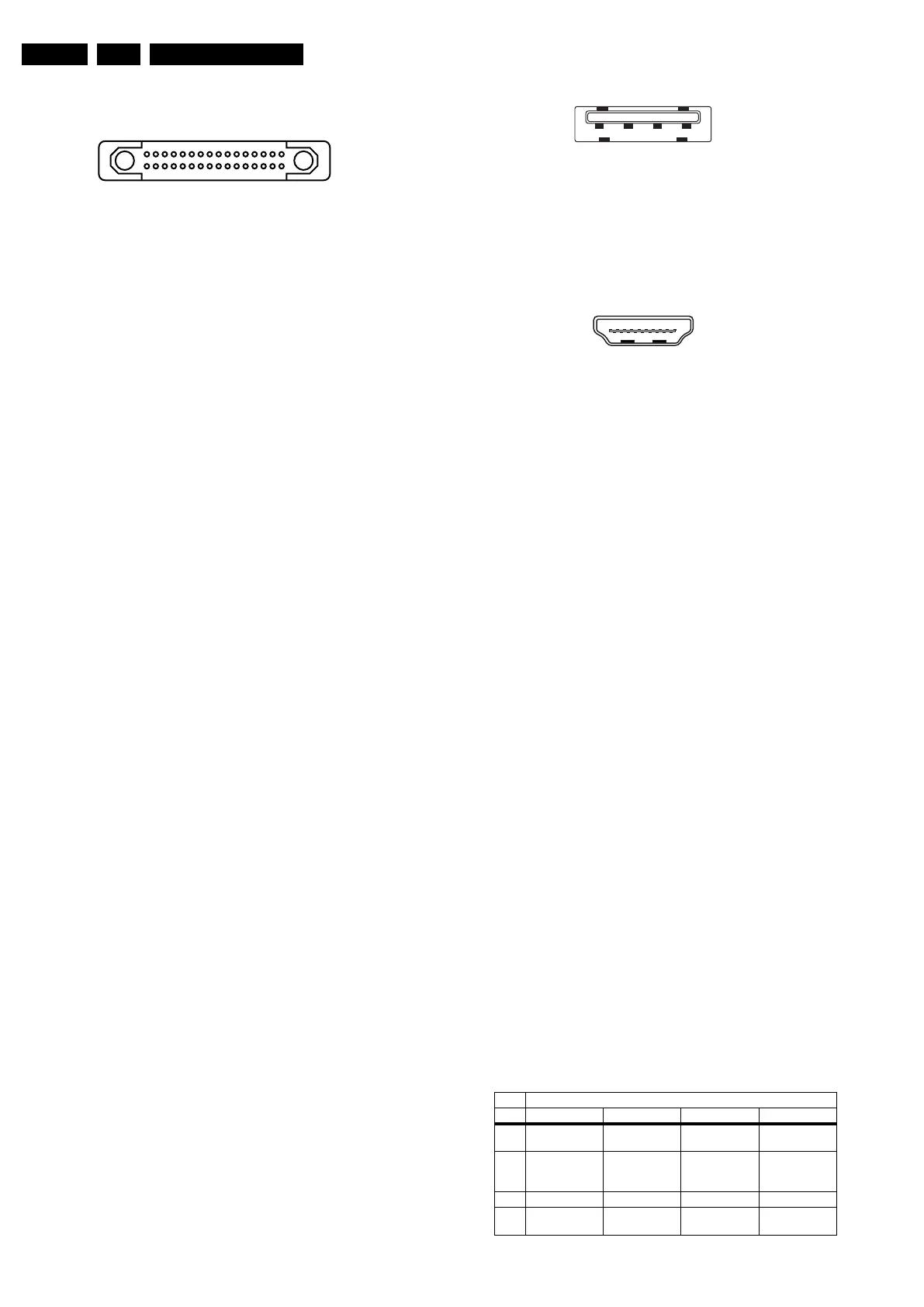

2.3.1 Side Connections
Smart Card Interface: Data Video - In/Out
Figure 2-2 Smart-card Connector
1 - 3V3 (1) +3.3 V k
2 - Ground power Gnd H
3 - 12V (1) +12 V j
4 - Ground I
2
C Gnd H
5 - IR data Data j
6 - POR (2) Signal j
7 - TV Clock (3) Clock Signal k
8 - Data in (3) Data j
9 - Data out (3) Data k
10 - 5V (1) +5 V j
11 - H-sync Signal k
12 - V-sync Signal k
13 - Gnd CVBS in Gnd H
14 - SCL (4) DDC clock jk
15 - SDA (4) DDC data jk
16 - Reserved
17 - B_Pb in (5) Blue in Signal j
18 - G_Y in (5) Green in Signal j
19 - R_Pr in (5) Red in Signal j
20 - FBL in (5) Signal j
21 - Gnd CVBS out Gnd H
22 - CVBS out (6) 1 V
PP
/ 75 W j
23 - Reserved
24 - Reserved
25 - Reserved
26 - Gnd Audio in Gnd H
27 - Audio R 0.5 V
RMS
/ 1 kW k
28 - Audio L 0.5 V
RMS
/ 1 kW k
29 - Audio R 0.5 V
RMS
/ 10 kW j
30 - Audio L/Mono in 0.5 V
RMS
/ 10 kW j
31 - Video CVBS/Yin 1 V
PP
/ 75 W j
32 - C in 0.7 V
PP
/ 75 W j
1. Pin 1, 3, 10: maximum current limits 1.5A for 3.3V, 1.0A for
5V, and 0.6A for 12V. Total power may not exceed 10W.
2. Pin 6: Bidirectional POR. TV will reset the system card
(active low) when mains is switched “off” to “on”. DCM can
reset iTV controller by pulling POR low for 150 ms.
3. Pin 7, 8, 9: SPI bus global (either I2C bus or SPI at any one
time, not simultaneously).
4. Pin 14, 15: I2C bus (either I2C bus or SPI at any one time,
not simultaneously).
5. Pin 17, 18, 19, 20: RGB+FBL applicable only for full field
insertion and not for OSD. For CVI input, only applicable for
1fH.
6. Pin 22: CVBS_terr_out when switching from analog RF to
SCART. Composite video out when switch from DVB-T to
SCART.
Head phone (Output)
Bk - Head phone 32 - 600 ohm / 10 mW ot
Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/ 75 ohm j
USB2.0
Figure 2-3 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
HDMI: Digital Video, Digital Audio - In
Figure 2-4 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink CEC jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
Common Interface
68p - See diagram B09A jk
2.3.2 Rear Connections
Mini Jack: Bathroom speaker (Output)
Bk - Bathroom speaker 8 W / 1 W o
RJ48 DATA2 (Xpress Box/Set Top Box- In/Out)
1 - +12V +12V/1W k
2 - Gnd Gnd H
3 - Reserved
4 - Reserved
5 - TXD232 Signal
6 - RXD232 Signal
7 - IR-OUT/SDA Signal k
8 - POR Signal k
9 - CVBS_out Signal k
10 - Gnd CVBS_out Gnd H
RJ12 DATA1 (SmartCard XPress Box)
1
17
16
32
10000_044_090121.eps
090121
Configure via communication menu
Pins SP-SPI SP-Serial XP SP-I2C HM-Link
1 SP Clock, 5V,
active low
Tx_ 5V,
active low
SCL, 5V,
active low
LED Ctrl
2 SP Data In, 5V,
active high
Rx_5V,
active low
Use pin 7 RJ45
for SDA, 5V
active low
IR in to TV, 5V,
active low
3 Reserved Reserved Reserved Reserved
4 SP Data Out, 5V,
active low
Not use Not use Status
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
