Technical Specifications, Directions for Use, and Connections
EN 5Q522.1HE LA 2.
2009-Dec-04
VGA: Video RGB - In

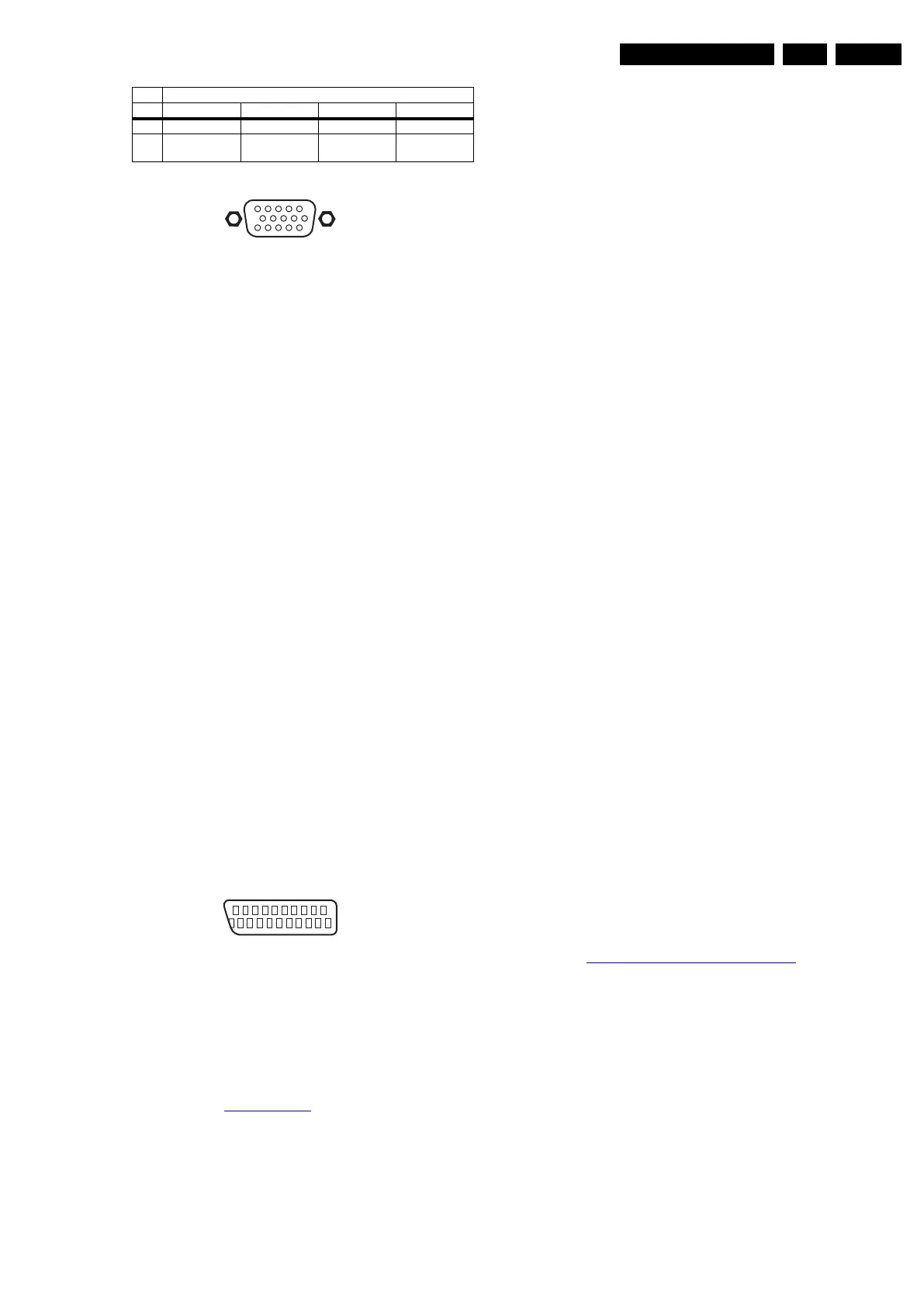

Figure 2-5 VGA Connector
1 - Video Red 0.7 V
PP
/ 75 W j
2 - Video Green 0.7 V
PP
/ 75 W j
3 - Video Blue 0.7 V
PP
/ 75 W j
4 - Sense Gnd H
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V
DC
+5 V (EDID NVM) j
10 - Ground Sync Gnd H
11 - Sense Gnd H
12 - Bi-directional data EDID I2C data jk
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - Data clock EDID I2C clock jk
Service Connector (UART)
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
Cinch: S/PDIF - Out
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 ohm kq
Cinch: Audio - Out
Rd - Audio - R 0.5 V
RMS
/ 10 kohm kq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm kq
EXT3: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Rd - Audio - R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm jq
EXT1: Video RGB - In (*), CVBS - In/Out, Audio - In/Out
Figure 2-6 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - Video Blue (*) 0.7 V
PP
/ 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green (*) 0.7 V
PP
/ 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red (*) 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
(*) Only when Cardslot is disabled in “Communication” menu.
EXT2: Video YPbPr - In, CVBS - In/Out, Audio - In/Out
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Pb Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - Video Pb 0.7 V
PP
/ 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Y Gnd H
10 - n.c.
11 - Video Y 0.7 V
PP
/ 75 ohm j
12 - n.c.
13 - Ground Pr Gnd H
14 - Ground P50 Gnd H
15 - Video Pr 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
Aerial - In
- - IEC-type (EU) Coax, 75 ohm D
HDMI 1 & 2 Digital Video, Digital Audio - In
See HDMI: Digital Video, Digital Audio - In
Mini Jack: HDMI/DVI Audio - In
Rd - Audio - R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm jq
2.4 Chassis Overview
Refer to chapter Block Diagrams for PWB/CBA locations.
5 Gnd Gnd Gnd Gnd
6 IR Out,
open collector
IR Out,
open collector
IR Out,
open collector
IR from RC, 5V,
active low
Configure via communication menu
Pins SP-SPI SP-Serial XP SP-I2C HM-Link
1
6
10
11
5
15
10000_002_090121.eps
090127
21
20
1
2
10000_001_090121.eps
090121
