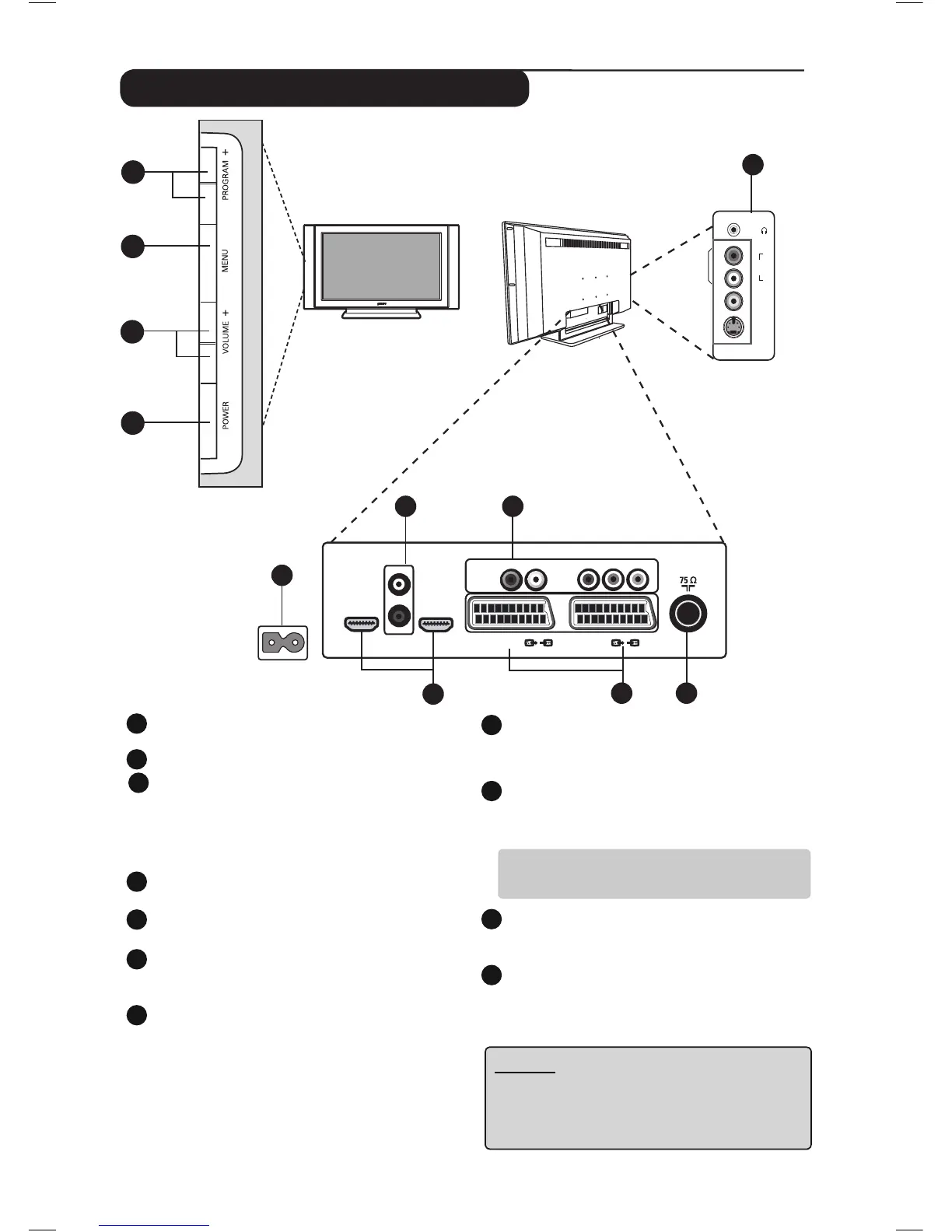

Television keys and connectors
Headphone
Audio In
Video In
S-Video
AUDIO
IN
R
L
VIDEO
IN
S-VIDEO
11
6
7
8
9
10
EXT 4
EXT 2 /SVHS2
EXT 1
DVI
(AUDIO IN)
HDMI 2
HDMI 1
AUDIO R L
IN
Pr
Pb Y
L
R
5
AC in ~
––
.
1
3
EXT3/SVHS3
4
2
1
POWER
.
: to switch the TV on and off.
2
VOLUME –/+: to adjust sound level.
3
MENU : to access or close menus.
The PROGRAM /CHANNEL –/+ keys can
be used to select a menu item and the
VOLUME –/+ keys to enter into the selected
menu item and make adjustments.
4
PROGRAM / CHANNEL –/+ : to select
programmes.
5
POWER socket : Insert the mains plug into
a wall socket.
6
DVI Audio Input : for connecting a HD (high
definition) equipment or computer with DVI
output.
7
Component Video inputs / Audio Inputs :
to connect to equipment like DVD, Set-Top
box which have the same sockets. Connect the
audio inputs of the TV to the outputs of the
device together with the Component Video
Inputs.
8
HDMI 1 /HDMI 2 sockets : to connect to
set-top boxes, DVD player/recorder, High
Definition equipment or Personal Computer.
9
EXT1 and EXT2/SVHS2 sockets : connect to
equipment
like DVD player/recorder, VCR,
Decorder which have scart connections.
Important : In order to connect your
decoder, please use EXT1 scart only.
10
TV Aerial socket : Insert the aerial plug into
the 75 Ω : socket .
11
Side / EXT3 / SVHS3 connections : for
connecting to devices like camera or
camcorder. Also allows you to connect your
headphone for your personal listening pleasure.
NOTE
For more details on connections,
see CONNECTION GUIDE.
