Philips 32PFL5007G/78 User Manual

Block Diagrams
EN 45L12M1.1L LA 9.
2012-Aug-17
back to
div. table

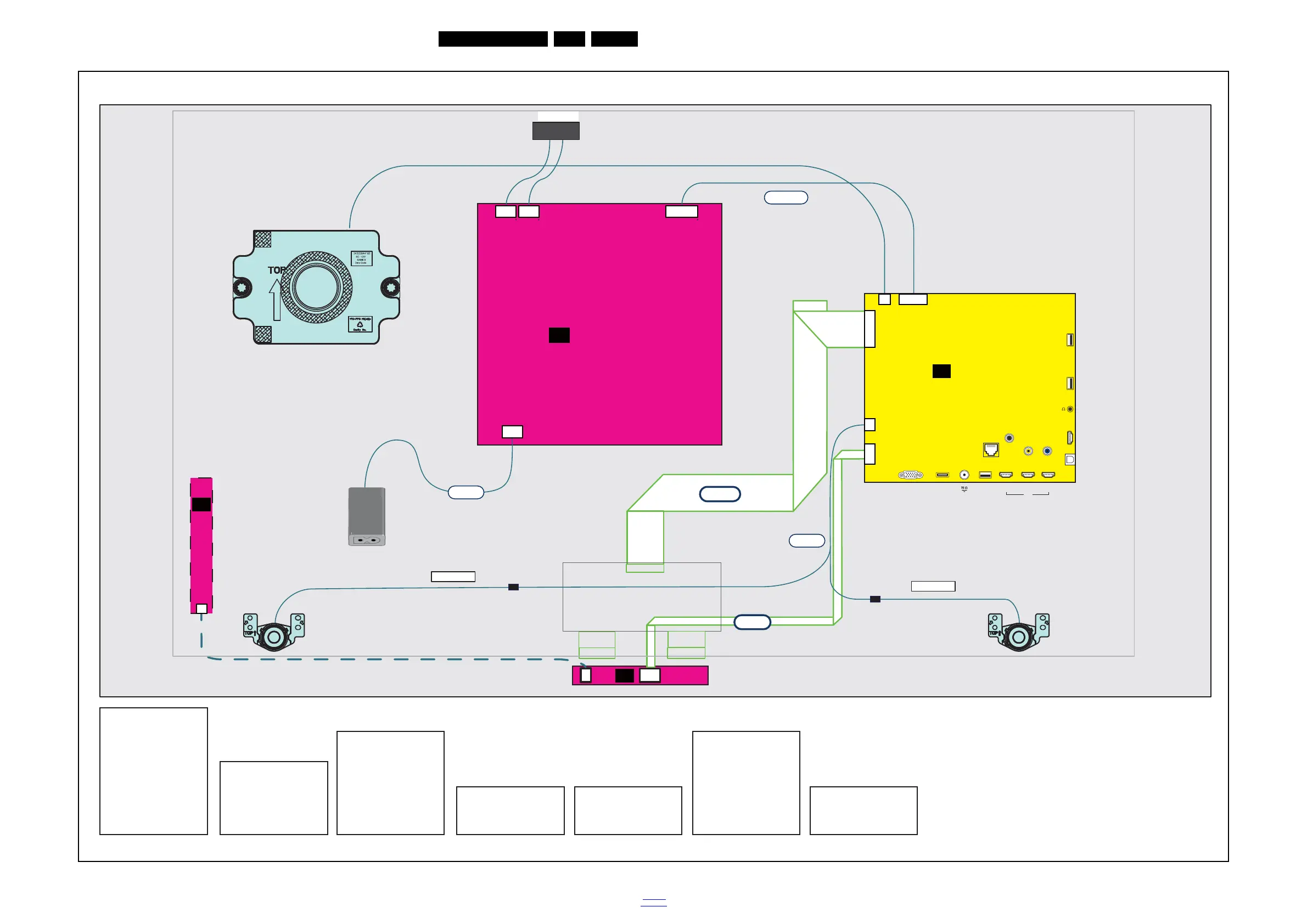

9-5 Wiring Diagram 47" (5000 series)
19300_038_120416.eps
120416
1C22 (B04C)
1. LIGHT-SENSOR
2. 3D-LED
3. LED-2
4. GND
5. KEYBOARD
6. +3.3 V - STANDBY
7. RC
8. +5 V
9. SCL-SET
10. GND
11. SDA-SET
J1 (J)
1. SDA-SET
2. GND
3. SCL-SET
4. +5 V
5. RC
6. +3.3 V - STANDBY
7. KEYBOARD
8. GND
9. LED-2
10. 3D-LED
11. LIGHT-SENSOR
1D01 (B03)
1. LEFT-+
2. LEFT--
3. RIGHT-+
4. RIGHT--
1D02 (B03)
1. LEFT-+
2. GND
3. RIGHT--
J2 (J)
1. +5 V
2. KEYBOARD
3. +3.3 V - STANDBY
1M95 (B01)
1. +3V3STBY
2. STANDBY
3. GND
4. GND
5. +12Vin
6. +12Vin
7. +12VAUDIO
8. +12VAUDIO
9. GND
10. GND
11. BL-ON-1
12. BL-DIM-1
13. BL-I-CTRL-1
14. POWER-OK-1
1G51 (B04D)
1. +VDISP
2. +VDISP
3. +VDISP
4. +VDISP
|
|
51.
Wiring diagram 47" 5000 series
8G51
J2
3P
8C20
1316
8P
1M95
14P
1315
8P
1308
2P
NL
J1
11P
SENSOR BOARD
(1122)
CN2 CN1
White wires
RED Wires
51P
8M95
LED Power
8D01
8308
AV IN
NETWORK
SERV.U
AUDIO IN
DVI/VGA
VGA CVI USB 1
TV ANTENNA
(1) ARC (2) (3)
HDMI
HDMI
SIDE
DIGITAL
AUDI O
OUT
USB 3
USB 2
1D01
4P
1C22
11P
1M95
14P
1D02
3P
1G51
52P
SSB
(1150)
B
MAIN POWER SUPPLY
(1005)
A
J
E
KEYBOARD CONTROL (1114)
