Philips 32PFL5007G/78 User Manual

EN 52L12M1.1L LA 9.
Block Diagrams
2012-Aug-17
back to
div. table

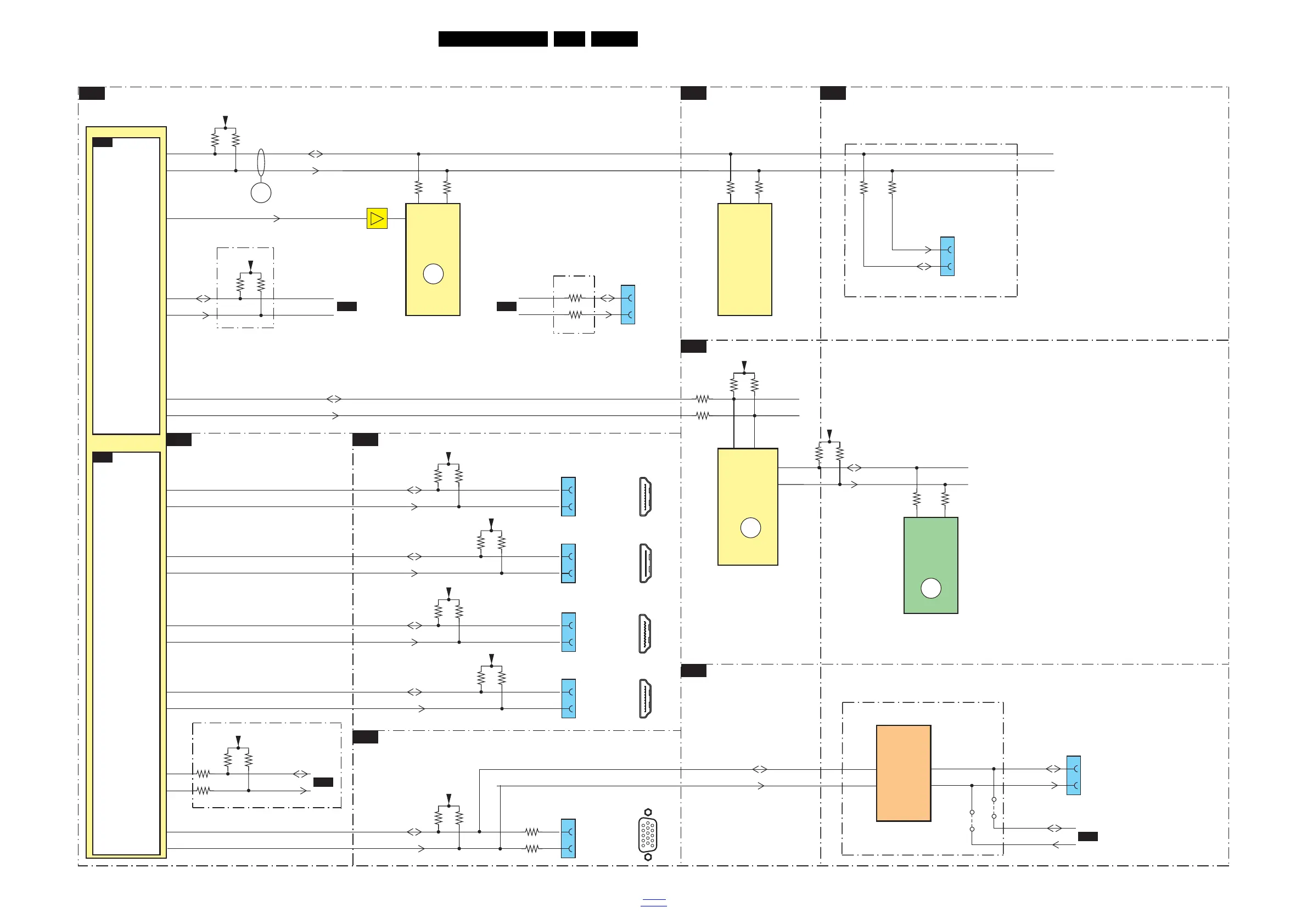

9-12 Block Diagram I2C
I²C
TUNER & DEMOD
B02
HDMI & MUX
B05A
FLASH + CONTROL + EJTAG
B04C
LVDS DISPLAY
B04D
CLASS-D & MUTING
B03
MTK5396 POWER
B04A
VGA
B06C
RES
B04D
B04C
RES
RES
B04C
RES
B04A
19300_001_120330.eps
120330
FLASH+CONTROL+EJTAG
B04C
RES
+3V3_SW
DEMOD_SDA
DEMOD_SCL
+3V3_SW
TUNER_SDA
TUNER_SCL
+3V3_SW
OPWR1_5V
OPWR2_5V
HDMI_2_SDA
HDMI_2_SCL
HDMI_1_SDA
HDMI_1_SCL
HDMI_0_SDA
HDMI_0_SCL
HDMI_3_SDA
HDMI_3_SCL
OPWR3_5V
OPWR0_5V
VGA_SDA
VGA_SCL
+5V_DC
+3V3_SW
VCOM_SDA
VCOM_SCL
VCOM_SDA
VCOM_SCL
+3V3STBY
SDA
SCL
VGA_SDA
VGA_SCL
STB_SDA
STB_SCL
SYS_EEPROM_WE
ERR
13
STB_SDA
STB_SCL
3537 3538
AR21
AT21
3784 3783
7300
MT5396
OSDA0
OSCL0
GPIO44
F327
AN12
AP12
3735 3734
OSDA2
OSCL2
56
7705
M24C64
EEPROM
(NVM)
3741 3740
V34
V35
3213 3212
MISC
B04C
ERR
35
7702
1
6
10
11
5
15
VGA
CONNECTOR
21 20
7210
CXD2828ER
DIGITAL
DEMODULATOR
3232
3231
11 10
1201
SUT-RA214ZN
MAIN
TUNER
ERR
27
3218 3217
46
45
7D04
PCA9540BDP
I2C
SWITCH
HDMI 3
CONNECTOR
HDMI 4 (SIDE)
CONNECTOR
1B04
16
15
TO
DISPLAY
1G51
50
49
3B22 3B21
AB33
AC33
1B03
16
15
3B12 3B11
AD33
AE33
HDMI_SCL2
HDMI_SCL1
HDMI_SDA2
HDMI_SDA1
4D23
4D24
3205
3204
23 24
7400
TA S5731PHP
CLASS D
AMPLIFIER
3402 3403
HDMI 1
CONNECTOR
HDMI 2
CONNECTOR
1B02
16
15
3B02 3B01
AF33
AG33
1B01
16
15
3B32 3B31
AH33
AH32
B04C
OPTCTRL_
TCON
HDMI_2_SDA
HDMI_2_SCL
HDMI_1_SDA
HDMI_1_SCL
HDMI_0_SDA
HDMI_0_SCL
HDMI_3_SDA
HDMI_3_SCL
1A01
12
15
3A20 3A21
AR22
AP22
VGA_SDA
VGA_SCL
3A26
3A27
19
1
18 2
19
1
18 2
19
1
18 2
19
1
18 2
AN15
AP15
OSDA0
OSCL0
2
1
7
8
STB_SDA
STB_SCL
3539
3540
TO
LOCAL
CONTROL
1C20
11
9
3759
37A9
ERR
34
3799 3798
TEMPERATURE
SENSOR
1T71
1
3
