4.2 Service Positions
For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.
4.3 Assembly/Panel Removal (for
32"/39"/40"/55"Pxx5500 series &
40"/50"/55"Pxx6400 series)
Instructions below apply to the 40PFT5500/12, but will be
similar for other 32"/39"/40"/55"Pxx5500 &
40"/50"/55"Pxx6400 series models.
4.3.1 Rear Cover
Refer to Figure 4-16
for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove fixation screws [1] that secure the base assy, pull
out the base assy from the set. Refer to Figure 4-16
for
details.
2. Remove the fixation screws [2], [3] and [4] that secure the
rear cover. Refer to Figure 4-16
for details.
3. Unplug the connector [5] from SSB. Refer to Figure 4-17
for details.
4. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

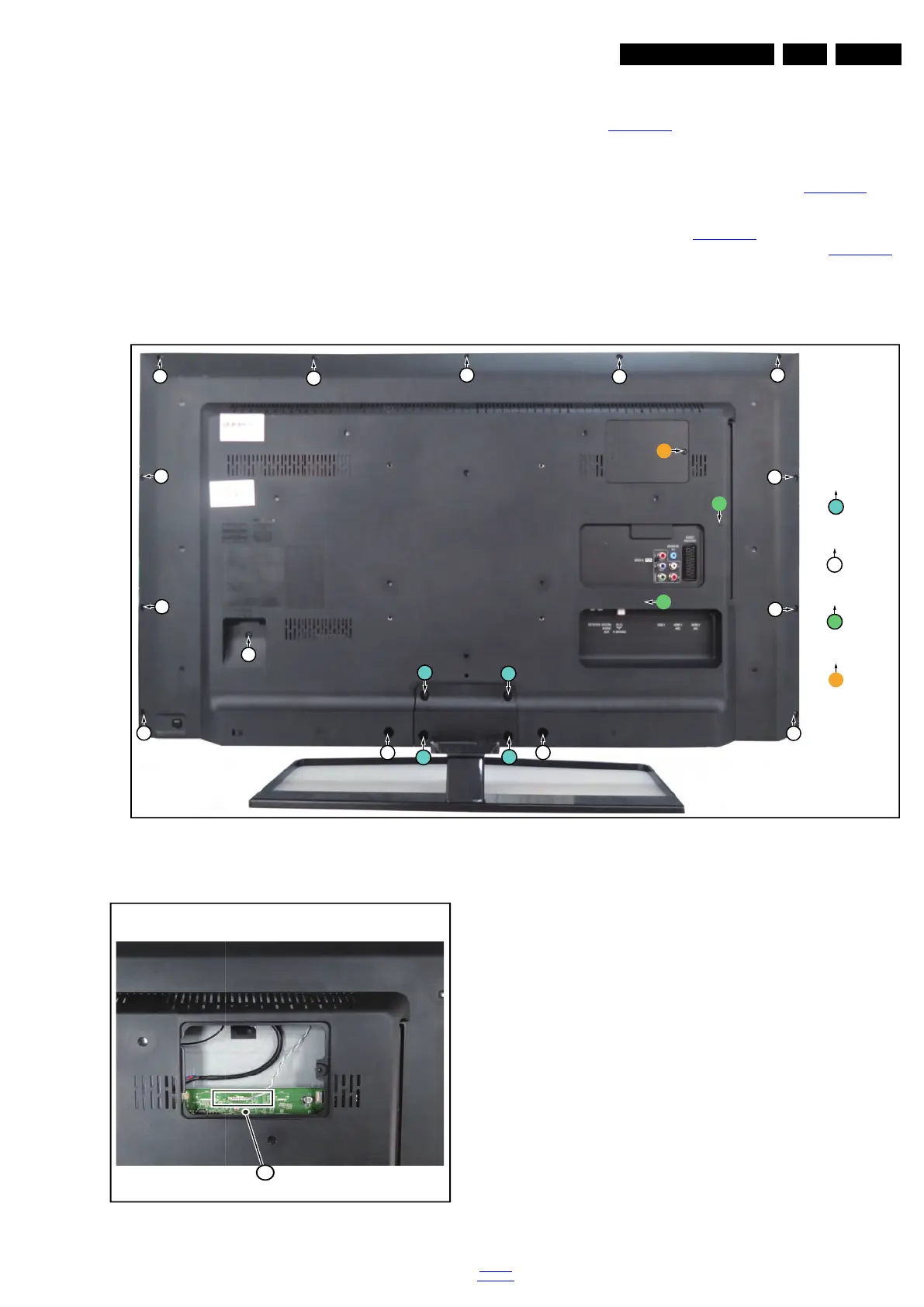

Figure 4-16 Rear cover removal[1]
Figure 4-17 Rear cover removal[2]
19880_104.eps
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
1
1
1
3
4
4
3
1
M4 × 12
M3× 8
2
M3 × 6
Q3 × 6
3
