Mechanical Instructions
EN 11QM15.2E LA 4.
2015-Sep-30
back to
div.table
4. Mechanical Instructions
Index of this chapter:
4.1
Cable Dressing
4.2 Service Positions
4.3 Assembly/Panel Removal (for 32"/39"/40"/55"Pxx5500
series & 40"/50"/55"Pxx6400 series)
4.4 Assembly/Panel Removal (for 32"/40"/50"/55"Pxx65x0
series)
4.6 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

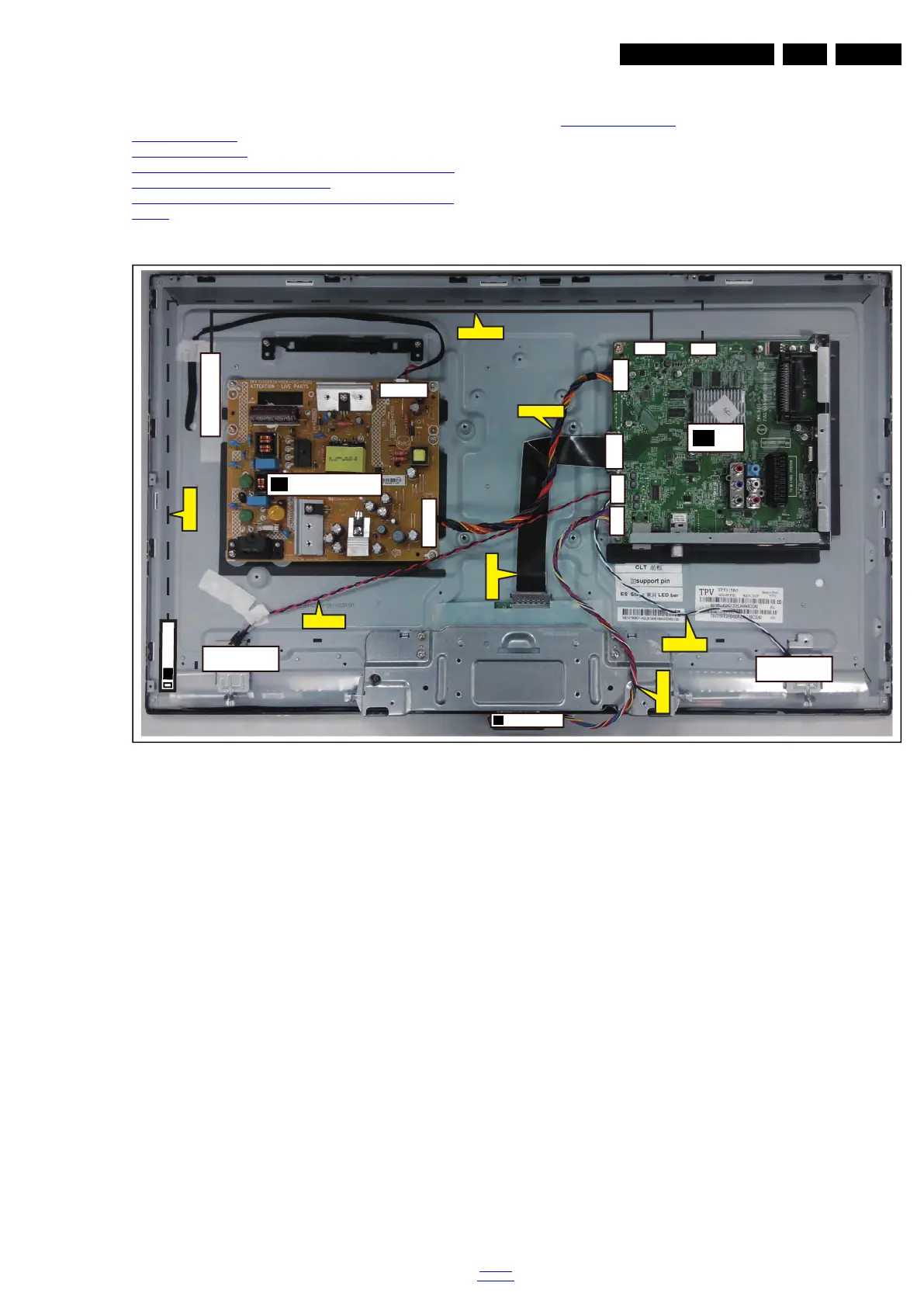

Figure 4-1 Cable dressing (32" 5500 series)
19880_100.eps
CN408
CN700
CN601
CN401
CN9101
CN8601
CN4250
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN700
ECN601
ECN601
ECN401
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
ECN408
ECN4250
IR/LED BOARD
(1056)
J
KEYBOARD CONTROL
(1057)
E
CN01
WIFI Module
(WiFi01)
ECN402
CN402
To Next Page
