Philips 40PUT6400/12 - Assembly;Panel Removal (for 32;40;50;55 Pxx65 x0 series)

Mechanical Instructions
EN 22 QM15.2E LA4.
2015-Sep-30
back to
div.table
4.4 Assembly/Panel Removal (for
32"/40"/50"/55"Pxx65x0 series)
Instructions below apply to the 50PFK6550/12, but will be
similar for other 32"/40"/50"/55"Pxx65x0 series models.
4.4.1 Rear Cover
Refer to Figure 4-22
for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove fixation screws [1] that secure the base assy, pull
out the base assy from the set. Refer to Figure 4-22
for
details.
2. Remove the fixation screws [2], [3] and [4] that secure the
rear cover. Refer to Figure 4-22
for details.
3. Unplug the connector [5] from SSB. Refer to Figure 4-23
for details.
4. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

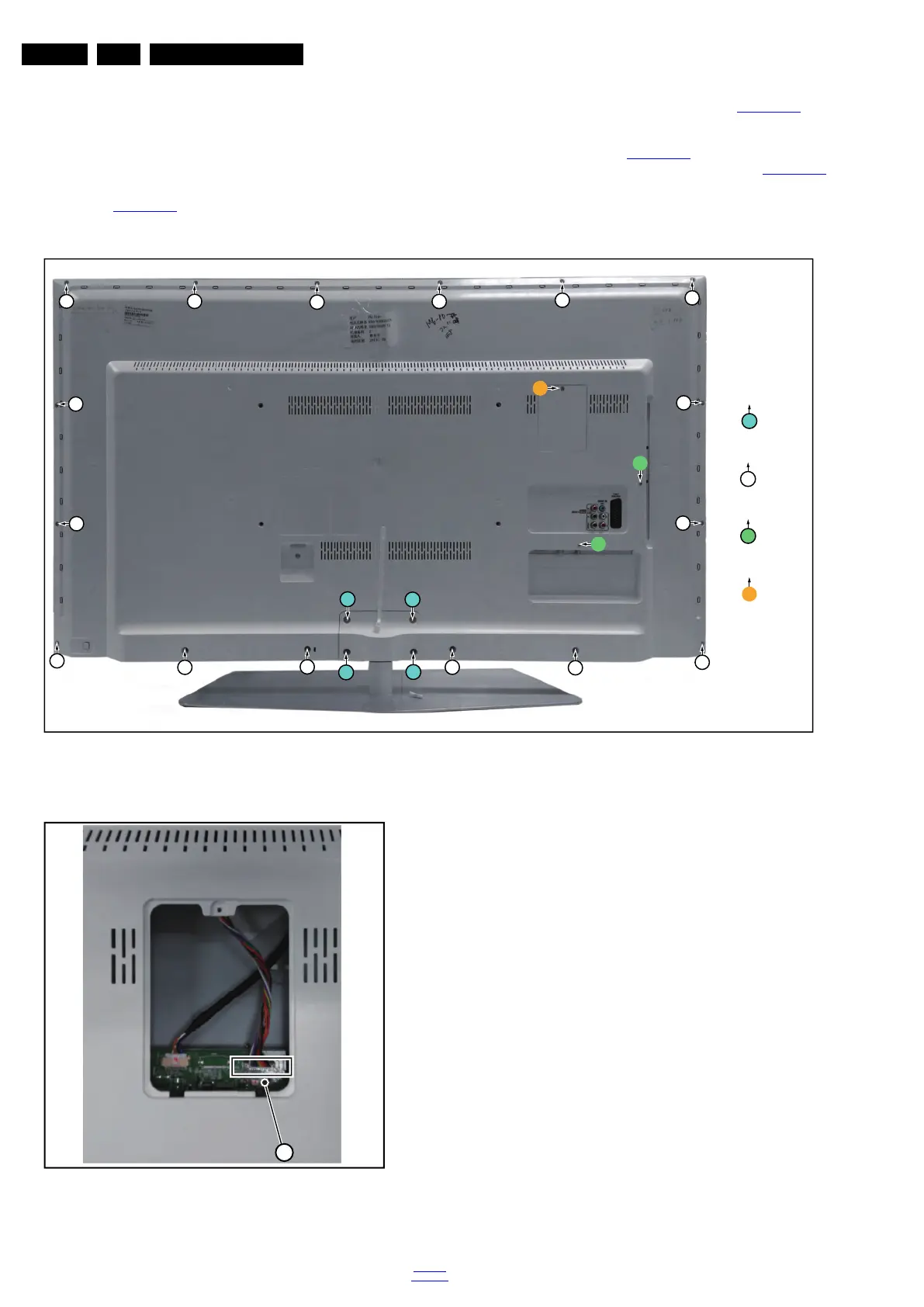

Figure 4-22 Rear cover removal[1]
Figure 4-23 Rear cover removal[2]
19881_106.eps
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
1
1
1
3
4
4
3
1
M4 × 12
M3× 8
2
M3 × 6
Q3 × 6
3
19881_107.eps
5
