4.3.4 Small Signal Board (SSB)
Refer to Figure 4-10
for details.
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.
1. Release the clips from the LVDS [1] connector that connect
with the SSB.
Caution: be careful, as these are very fragile connectors!
2. Unplug all other connectors [2].
3. Remove all the fixation screws [3] from the SSB.
4. The SSB can now be shifted from side connector cover,
then lifted and taken out of the I/O bracket.Refer to
Figure 4-10
for details.

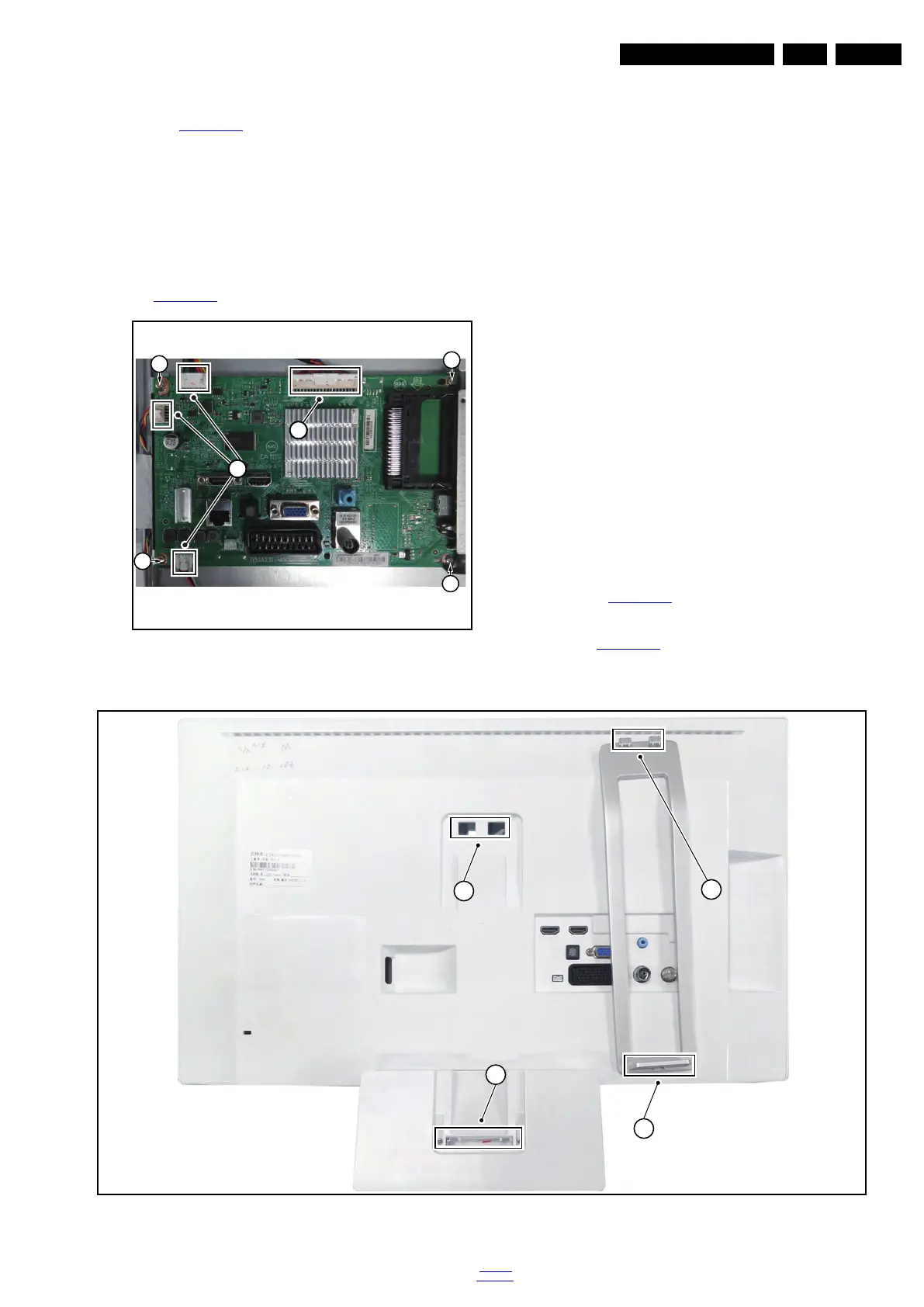

Figure 4-10 SSB removal
4.3.5 Power Supply Unit (PSU)
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the PSU.
1. Gently unplug all connectors from the PSU.
2. Remove all fixation screws from the PSU.
3. The PSU can be taken out of the set now.
4.3.6 Stand bracket
1. Remove all fixation screws of the bracket.
2. Lift the bracket from the set.
4.3.7 LCD Panel
1. Remove the SSB as described earlier.
2. Remove the PSU as described earlier.
3. Remove the stand bracket as described earlier.
4. Remove the IR/LED as described earlier.
5. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.
6. Remove all other metal parts not belonging to the panel.
7. Lift the LCD Panel from the bezel.
When defective, replace the whole unit.
4.4 Assembly/Panel Removal (for 24PFS5231/12)
Instructions below apply to the 24PFS5231/12.
4.4.1 Stand
Refer to Figure 4-11
for details.
1. Remove the fixation area [2] that locked from the clips [1]
and the fixation area [4] that locked from the clips [3]. Refer
to Figure 4-11
for details.
2. Take the stand bracket out from the set.
Figure 4-11 Stand removal
