6.4 Front-End Analogue and DVB-T, DVB-C;ISDB-T reception
6.4.1 DVB-C part
The Front-End for analogue tuner consist of the following key components:
• TUNER EUROPE TDSY-G480D
• TUNER EUROPE TDQS-A701F
• SCALER MT5593UGIJ HSBGA-900 Processor

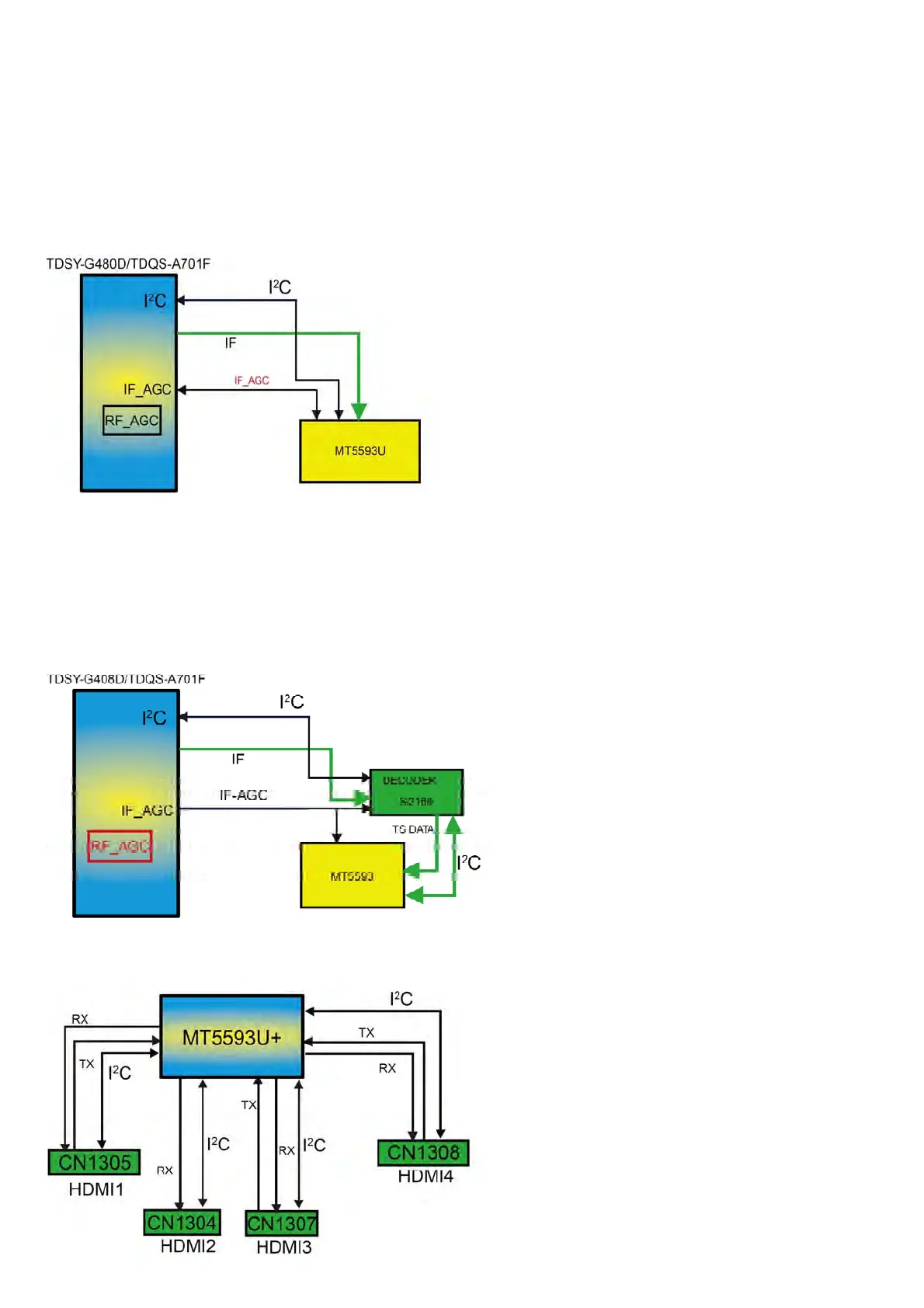

Below find a block diagram of the front-end application for DVB-C part.
6.4.2 DTB-T2 part
The Front-End for DVT part consist of the following key components:
• TUNER EUROPE TDSY-G480D
• TUNER EUROPE TDQS-A701F
• SCALER MT5593UGIJ HSBGA-900 Processor
• DEMODULATOR Si2169-C50-GMR QFN-48
Below find a block diagram of the front-end application for DTV part.
6.5 HDMI
Refer to below for the application.
