Philips 55PUH6101/88 Service Manual

Mechanical Instructions
EN 10 TPL16.1E LA4.
2016-Sep-23
back to
div.table
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assembly/Panel Removal(for 6101 & 6121 series)
4.5 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

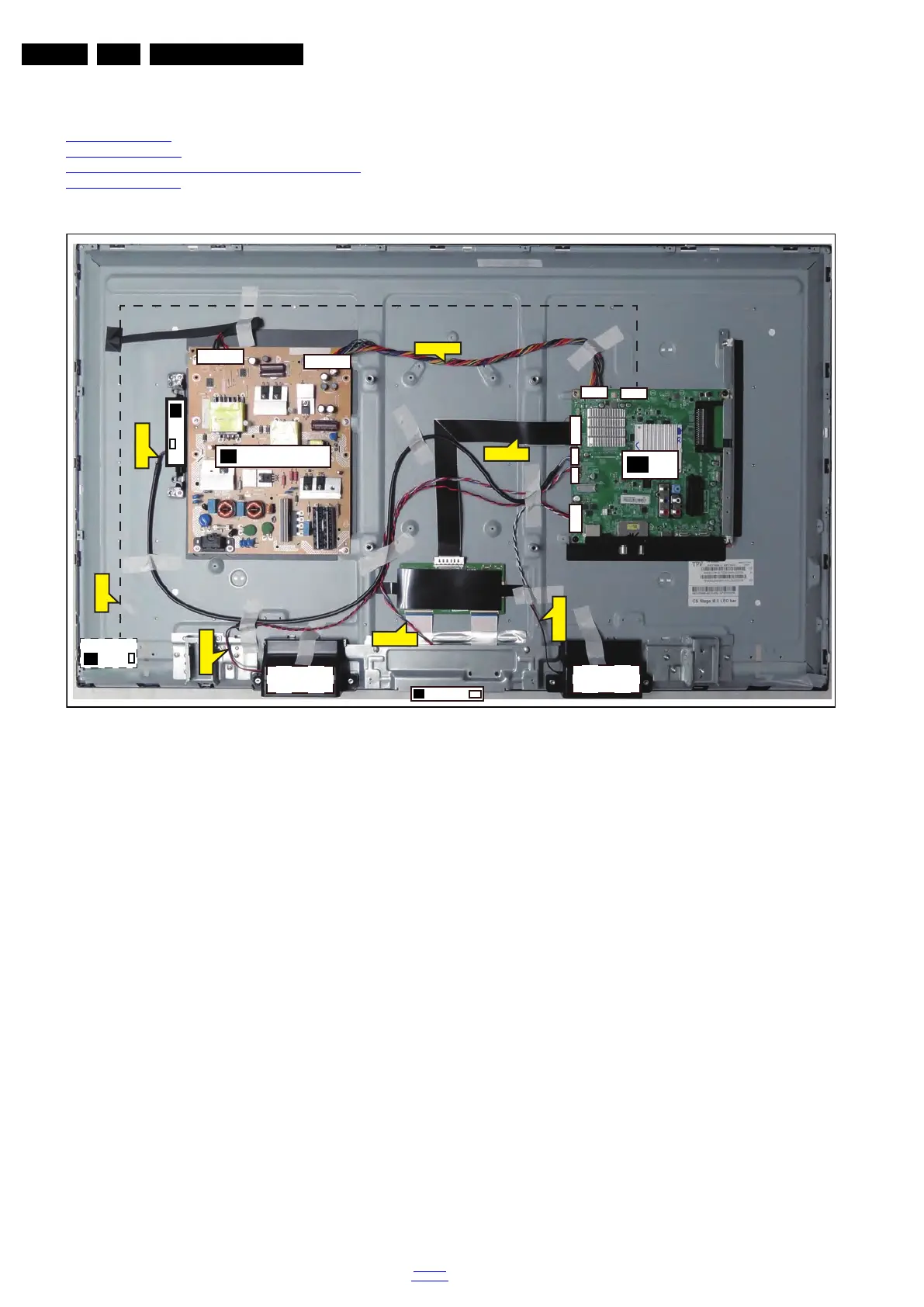

Figure 4-1 Cable dressing (43" 6101 series)
20110_100.eps
CN601
CN4605
CN401
CN9101
CN701
CN408
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN701
ECN601
ECN408
ECN4605
ECN412
ECN401
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN1
CN8101
KEYBOARD CONTROL
(1057)
E
CN01
CN412
WIFI MODULE
W
WiFi01

Philips 55PUH6101/88 Specifications

General

Brand	Philips
Model	55PUH6101/88
Category	LCD TV
Language	English
