Styling Sheets
EN 113TPL16.1E LA 11.
2016-Sep-23
back to
div.table
11.3 6101 series 49"

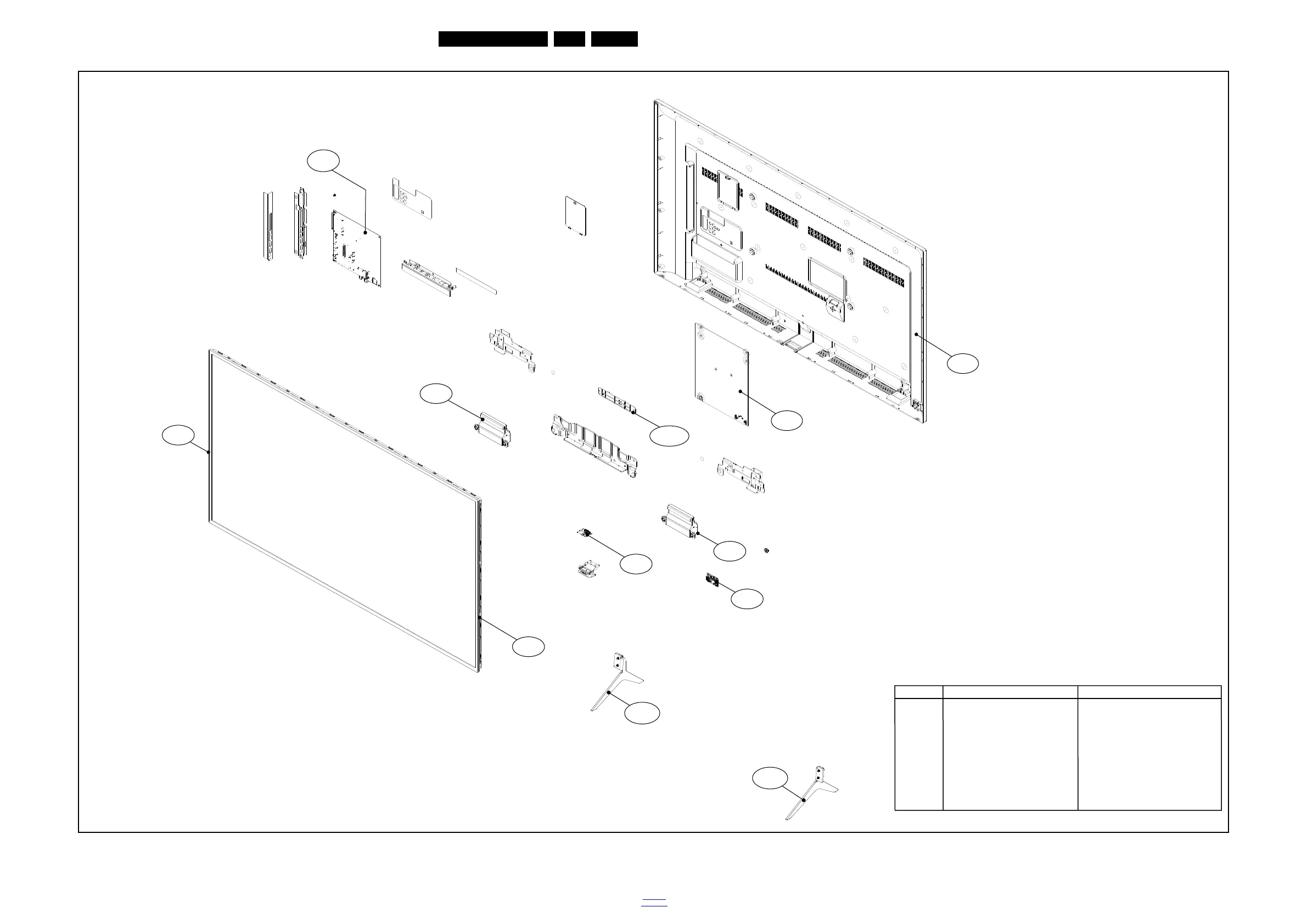

20110_801.eps
6101 series 49"
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
0030 Bezel
0040 Rear cover
0050L Stand Assy_L
0050R Stand Assy_R
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers
WiFi01 WiFi_USB
Pos No. Description Remarks
0040
0030
1184
1050
1056
1184
1057
1054
WIFI01
1053
0050R
0050L
