Mechanical Instructions
EN 12 TPL16.1E LA4.
2016-Sep-23
back to
div.table

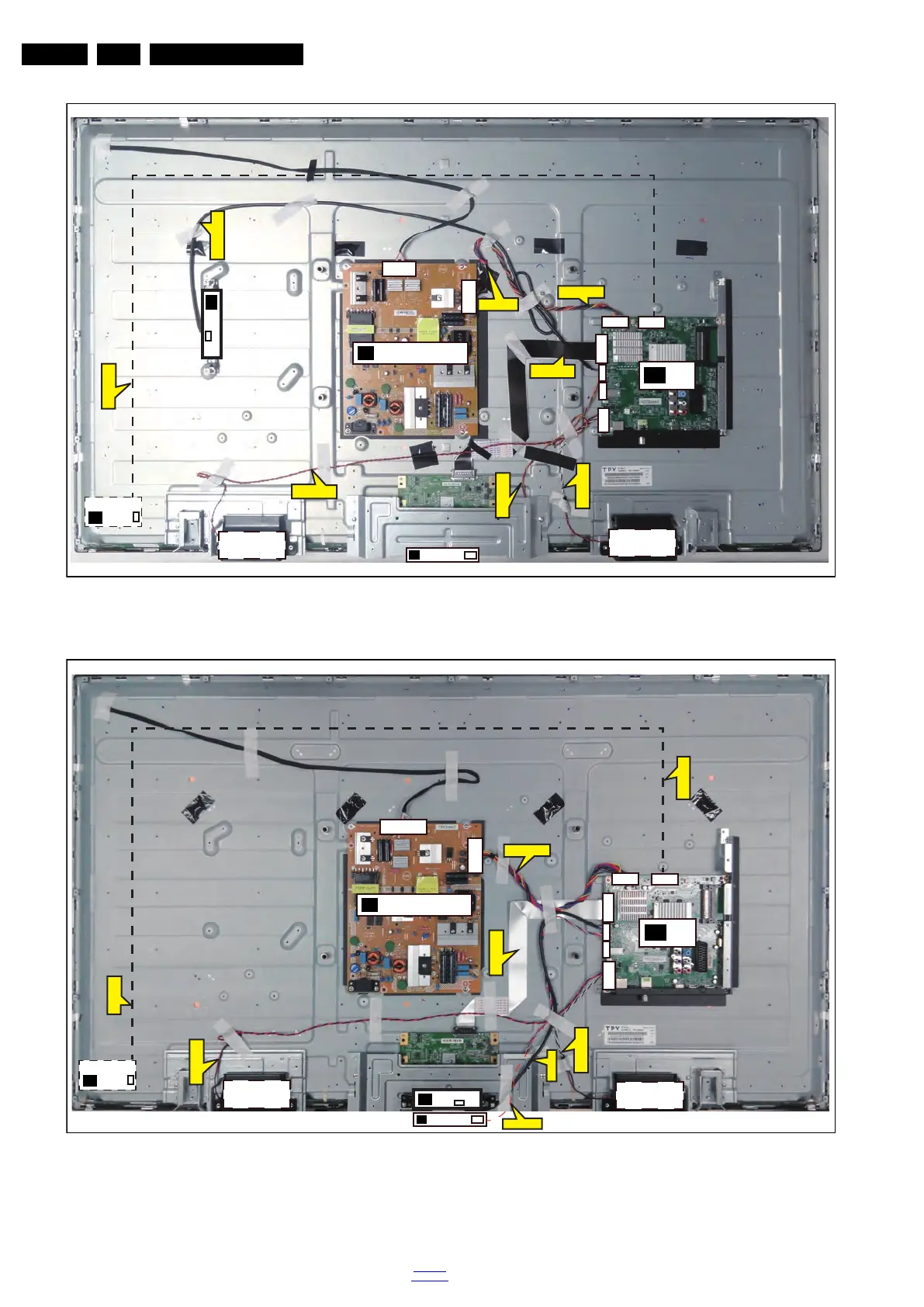

Figure 4-4 Cable dressing (55" 6101 series)
Figure 4-5 Cable dressing (55" 6201 series)
20110_102.eps
CN601
CN4605
CN401
CN9101
CN701
CN412
CN408
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN701
ECN701
ECN601
ECN408
ECN4605
ECN401
ECN601
ECN412
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN1
CN8101
KEYBOARD CONTROL
(1057)
E
CN01
WIFI MODULE
W
WiFi01
20112_101.eps
CN601
CN4605
CN401
CN9101
CN701
CN408
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN701
ECN701
ECN601
ECN601
ECN408
ECN4605
ECN412
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN1
CN8101
KEYBOARD CONTROL
(1057)
E
CN01
CN412
WIFI MODULE
W
WiFi01
