EN 96TPL16.1E LA 10.
Circuit Diagrams and PWB Layouts
2016-Sep-23
back to
div.table

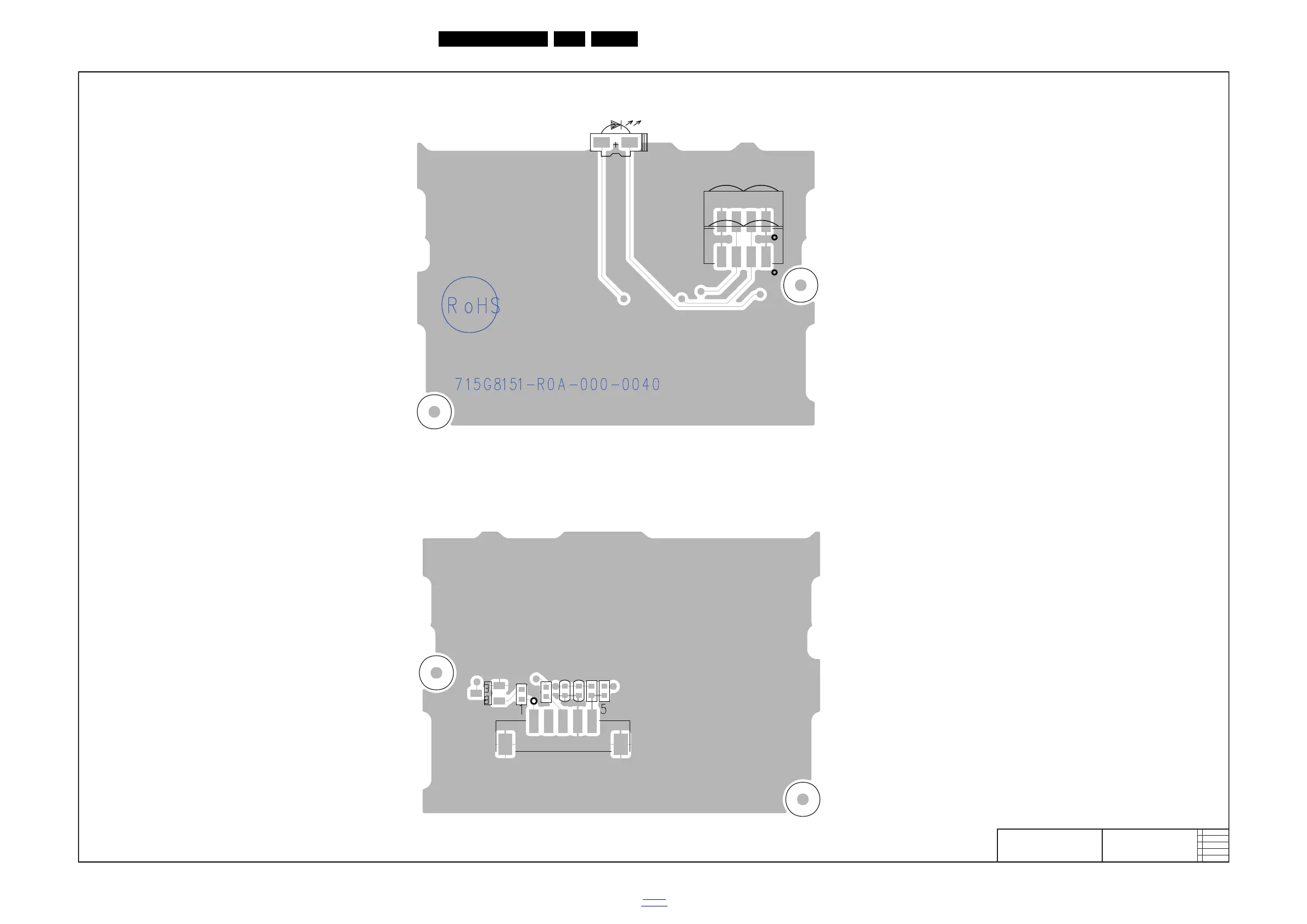

10-6-2 IR/LED board layout
20110_533.eps
715G8151
IR/LED panel
layout top/bottom
LED201
SET6
SET7
U212
U213
C211
R201
R202
R211
R212
Q201
SET8
SET9
C210
CN201
Layout IR/LED panel (top side)
Layout IR/LED panel (bottom side)
